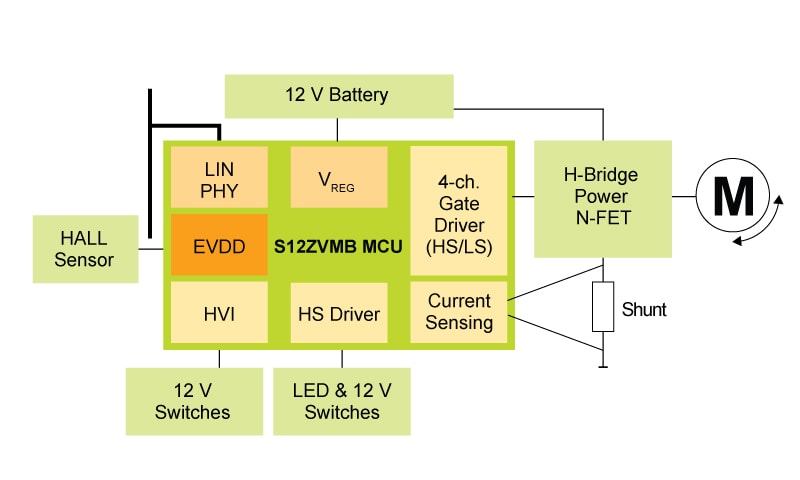

The S12ZVMB MCU family provides automotive DC-motor control applications with a combination of integration and scalability. Integrated LIN-PHY, 12V-Vreg, and H-Bridge Gatedriver allow building extremely compact solutions in window lifters, sunroofs or powertrain actuators.
Choose a diagram:
When it comes to functional safety, NXP stands for quality and reliability. Our SafeAssure program simplifies system-level safety requirements in accordance with ISO 26262.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
| Product Name | S12ZVMBA | S12ZVMB | ||
|---|---|---|---|---|
| Package | 64-LQFP | 48-LQFP | 64-LQFP | 48-LQFP |
| Flash memory (ECC) | 64/48kB | |||
| EEPROM (ECC) | 512B | |||
| RAM (ECC) | 4 KB | |||
| SCI / SPI | 2/1 | |||
| LIN-PHY | 1 | |||
| FET-predrive (GDU) | 2xHS, 2xLS; PWM-capable; 50nC total gate charge | 2xHS, 2xLS; not PWM-capable | ||
| HS-drivers | 2 | |||
| HVI | 3 | |||
| 10Bit ADC (ext) | 9ch (+HVI) | 5ch (+HVI) | 9ch (+HVI) | 5ch (+HVI) |
| 16Bit Timer | 4+4ch | |||
| PWM | 6ch PMF (PWM with Fault handling); 4ch routed to GDU; 2ch to GPIOs | |||
| Trigger | 1ch PTU (Programmable Triggering Unit; trigger between ADC & PWM) | |||
| EVDD (20mA source) | 1 | |||
| NGPIO (25mA sink) | 1 | |||
| GPIO | 23 | 15 | 23 | 15 |
| Temperature options (Ta) | up to 125°C | up to 150°C | up to 125°C | up to 150°C |
