S12ZVM BLDC Development Kit | NXP Semiconductors

For best experience this site requires Javascript to be enabled. To enable on your browser, follow our accessibility instructions.

Roll over image to zoom in

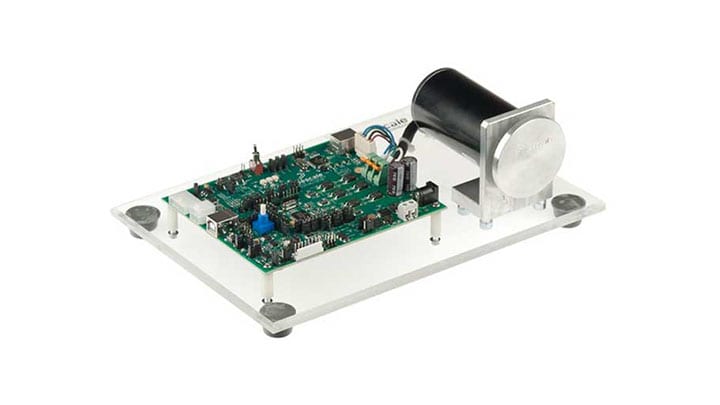

The MTRCKTSBNZVM128 motor control development kit is ideal for sensorless and Hall sensor-based applications requiring control of one BLDC motor, such as HVAC or electric pumps.

Designed to enable rapid prototyping and evaluation of the motor control application without the need to wait for the final hardware design
Includes an S12 MagniV^® MC9S12ZVML128 MCU evaluation board and a 3-phase low-voltage BLDC motor
The application software that provides a complete reference implementation of the BLDC motor control application and also takes advantage of the Automotive Math and Motor Control Library Set is an integral part of the automotive motor control development kit

Software

Product Details

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

S12ZVM: S12ZVM Mixed-Signal MCU for Automotive and Industrial Motor Control Applications
S12ZVMB: Mixed-Signal MCU for Automotive and Industrial Motor Control Applications

Features

Microcontroller

S12 MagniV MC9S12ZVML128 MCU evaluation board

Sensors

DC-bus overvoltage, overcurrent, and under voltage fault detection

Support and Software

Supports low-voltage BLDC motors
FreeMASTER visualization/configuration support
ANSI-C based motor control reference software with easy portability
Extensive documentation for software and hardware

Buy Options

Click to expand

MTRCKTSBNZVM128
S12ZVML128 Development Kit for 3-phase sensorless BLDC.
- S12 MagniV MC9S12ZVML128 MCU evaluation board
- AC/DC 12 V universal power supply kit
- 3-phase BLDC low-voltage motor
- USB 2.0 A-B type cable
- A fact sheet and quick start guide

$829.00 USD
For a quantity of 1
- Availability: Pending Stock

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types.

7 documents

Compact List

AN4704: 3-phase Sensorless BLDC Motor Control Kit with the S12 MagniV MC9S12ZVM – Application Note[AN4704]

PDFAug 14, 2013Rev 1
AN4718: 3-Phase BLDC Hall Sensor Application Using S12ZVM – Application Note[AN4718]

PDFApr 30, 2013Rev 0

Three-phase Sensorless BLDC Motor Control Kit - Fact Sheet[MTRCKTSBNZVM128FS]Featured

PDFApr 29, 2013Rev 0
3-Phase Hall Sensor BLDC S12ZVM Application - Fact Sheet[MTRCKTSBNZVML128HFS]Featured

PDFJul 30, 2013Rev 0

3-Phase Hall Sensor BLDC MC9S12ZVML128 Motor Control Development Kit - Quick Start Guide[MTRCKTSBNZVMHQSG]FeaturedGetting Started

PDFJun 26, 2013Rev 0
3-Phase Sensorless BLDC MC912ZVML128 Motor Control Development Kit - Quick Start Guide[MTRCKTSBNZVM128QSG]FeaturedGetting Started

PDFJun 26, 2013Rev 0
MC9S12ZVM128MCBUG, S12ZVM12EVB Evaluation Board User Guide[MC9S12ZVM128MCBUG]FeaturedGetting Started

PDFMar 3, 2016Rev 2

Design Resources

Related Hardware

Quick reference to our board types.

1 hardware offering

Evaluation and Development Boards

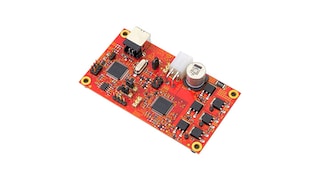

S12ZVML 3-phase BLDC/PMSM Evaluation Kit
