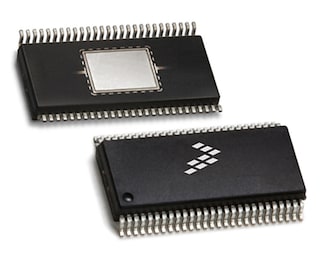

The GD3000 is a gate driver IC for three-phase motor drive applications providing three half-bridge drivers, each capable of driving two N-channel MOSFETs.
The IC interfaces to a MCU via six direct input control signals, a SPI port for device setup and asynchronous reset, enable and interrupt signals. Both 5.0 and 3.0 V logic level inputs are accepted and 5.0 V logic level outputs are provided.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
Three Phase Field Effect Transistor Pre-driver
2 results
Include 0 NRND
Part | Order | CAD Model | Status | Package Type | Package Termination Count | Budgetary Price excluding tax | AEC-Q100 Temperature Range | SafeAssure Functional Safety | Device Function | Load Current (IL) [TYP] (A) | Number of Channels | Drain-to-Source On Resistance (TYP) (Ohm) (RDS(ON)) | Full-bridge RDS(on) (Typ) (Ohm) | Load Supply Voltage (Min) (V) | Load Supply Voltage (Max) (V) | Supply Voltage [min] (V) | Supply Voltage [max] (V) | Interface and Input Control | Ambient Operating Temperature (Min to Max) (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | HVQFN56 | 56 | 1K @ US$1.80 | grade 1 | No | 3 phase, brushless DC motor, gate driver, powertrain control | 2 | 6 | — | 0 | 6 | 60 | 8 | 40 | Parallel / Parallel, SPI / SPI | -40 to 125 | |||
Active | HVQFN56 | 56 | 1K @ US$1.70 | — | No | 3 phase, gate driver | 2 | 6 | 5.5 | 0 | 6 | 60 | 8 | 40 | Parallel / Parallel, SPI / SPI | -20 to 105 |
