DSC MC56F84789 Motor and Power Control Tower System Module

TWR-56F8400 Active

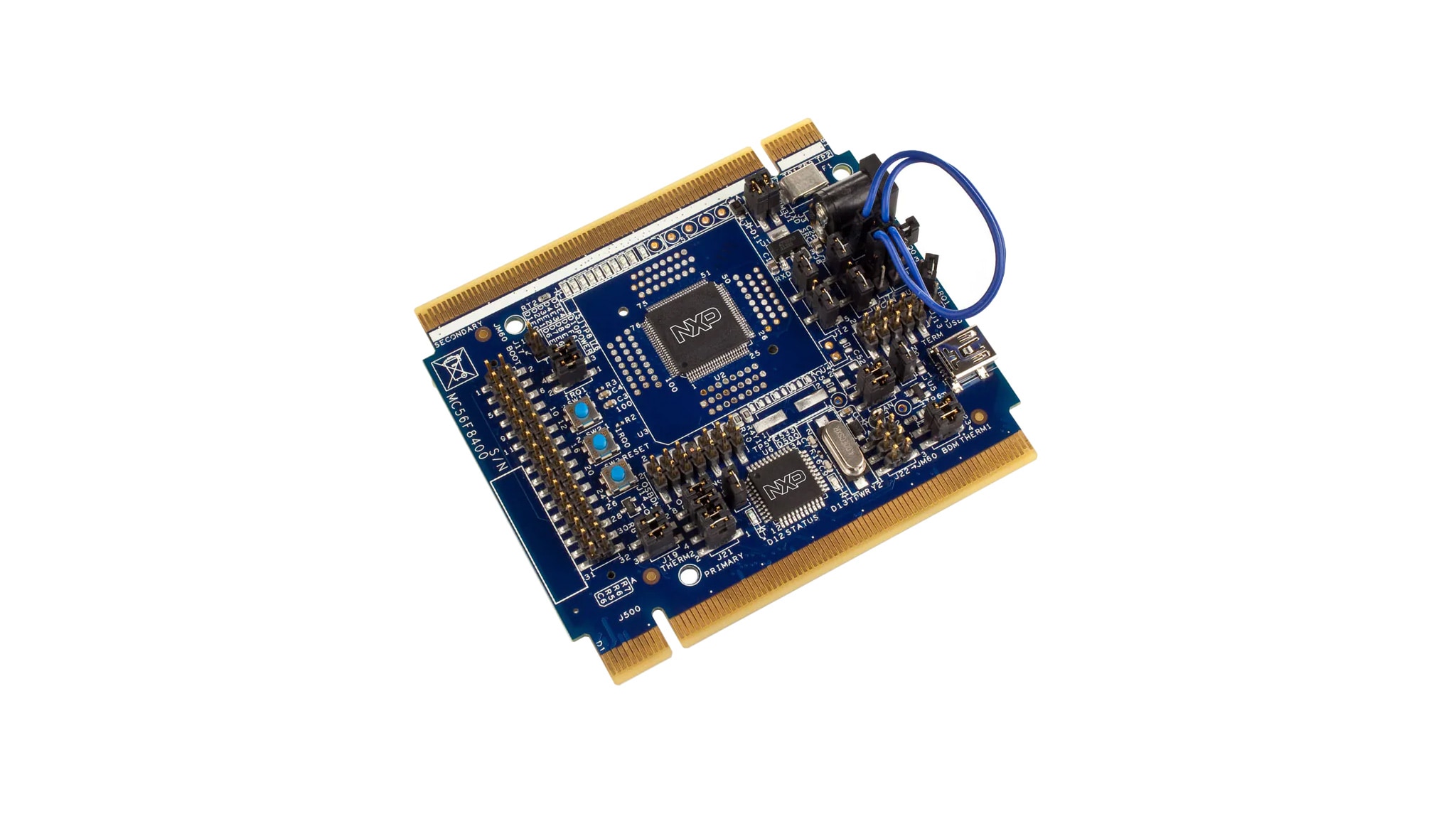

Roll over image to zoom in

The NXP® TWR-56F8400 is a standalone development board ideally suited for Motor and Digital Power control applications.

  • It can be used in conjunction with the Tower® System peripheral boards, including the LV3PH motor control kit TWR-MC-LV3PH module.
  • The MC56F84789 included on the board comes pre-loaded with an application demonstrating the ADC with an FIR filter application.
  • The module features serial I/O over USB, CAN circuits and access to each pin.
  • All signals are also available on the headers for easy and neat coupling to your project.
  • It can also be used as the main control board with an APMOTOR56F8000E motor control board.

Product Details

Supported Devices

Processors and Microcontrollers

32-Bit 56800EX/EF Core

Power Management

Pre-Drivers

  • MC33937: 3-Phase Field Effect Transistor Pre-Driver

Features

Microcontroller

  • MC56F84789 DSC in a 100 LQFP package

Connectivity

  • Integrates to the Tower® Peripherals boards, including the TWR-MC-LV3PH module
  • Motor control board connector for the APMOTOR56F8000E motor control board
  • Four Thermistors for single ended or differential analog inputs to the MC56F84789 DSC
  • CAN transceiver, header, and termination

Power Management

  • Preloaded with application demonstrating the ADC and an FIR filter application
  • 9 LEDs controlled by the MC56F84789 DSC
  • MC56F84789 is surrounded by easy access scope probes for each pin of the device.

Buy Options

TWR-56F8400-Image

Click to expand

  • TWR-56F8400
    Active

  • Tower System, DSC Module, MC56F84789, Motor Control, Power Control.

    • TWR-56F8400 board with a MC56F8476 Digital Signal Controllers
    • Necessary Cables
    • DVD with IDE software, training materials and collateral
    • Quick Start Guide
  • $201.25 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
TWR-56F8400-KIT-Image

Click to expand

  • TWR-56F8400-KIT
    Active

  • 56F8400 Tower Kit.

    • TWR-ELEV - Tower System Elevator Modules
    • TWR-MC-LV3PH - Tower System Motor Control Module
      • BLDC Motor
      • Power Supply
      • Quick Start Document
  • $286.35 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
