DSC MC56F8257 Motor Control Tower System Module

TWR-56F8257 Active

Roll over image to zoom in

The TWR-56F8257 module is a demonstration and development tool for the NXP® MC56F8257 DSCs. Ideally suited for motor control applications, it can be combined and used with several peripheral modules in the Tower® System, including the TWR-MC-LV3PH motor control module or be operated as a standalone tool. It can also be used as the main control board with an APMOTOR56F8000E motor control board.

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit 56800E DSC Core

Features

Microcontroller

MC9S08JM60
  • 4 MHz crystals provide
  • USB to SCI bridge
  • Bootloader enable header
  • JTAG header for the MC56F8257 DSC with header to disconnect from OSBDM
  • CAN transceiver, header, and termination
  • Four thermistors for single-ended or differential analog inputs to the MC56F8257 DSC
  • Motor control board connector for the APMOTOR56F8000E motor control board
  • 9 LEDs controlled by the MC56F8257 DSC
  • MC56F8257 Digital Signal Controller (DSC) in a 64 LQFP package

Buy Options

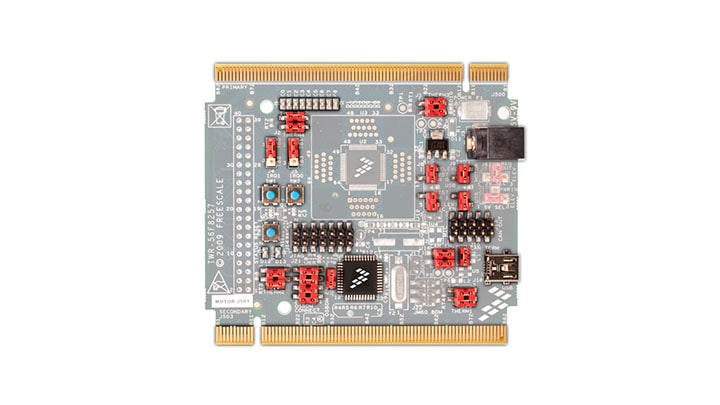

TWR-56F8257-Image

Click to expand

  • TWR-56F8257
    Active

  • Tower System, DSC Module, MC56F8257, Motor Control.

    • TWR-56F8257 board with a MC56F8257 16-bit MCU
    • Necessary cables
    • DVD with lab tutorials, software, training and collateral
    • Quick Start Guide document
  • $200.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
