Digital Signal Controller

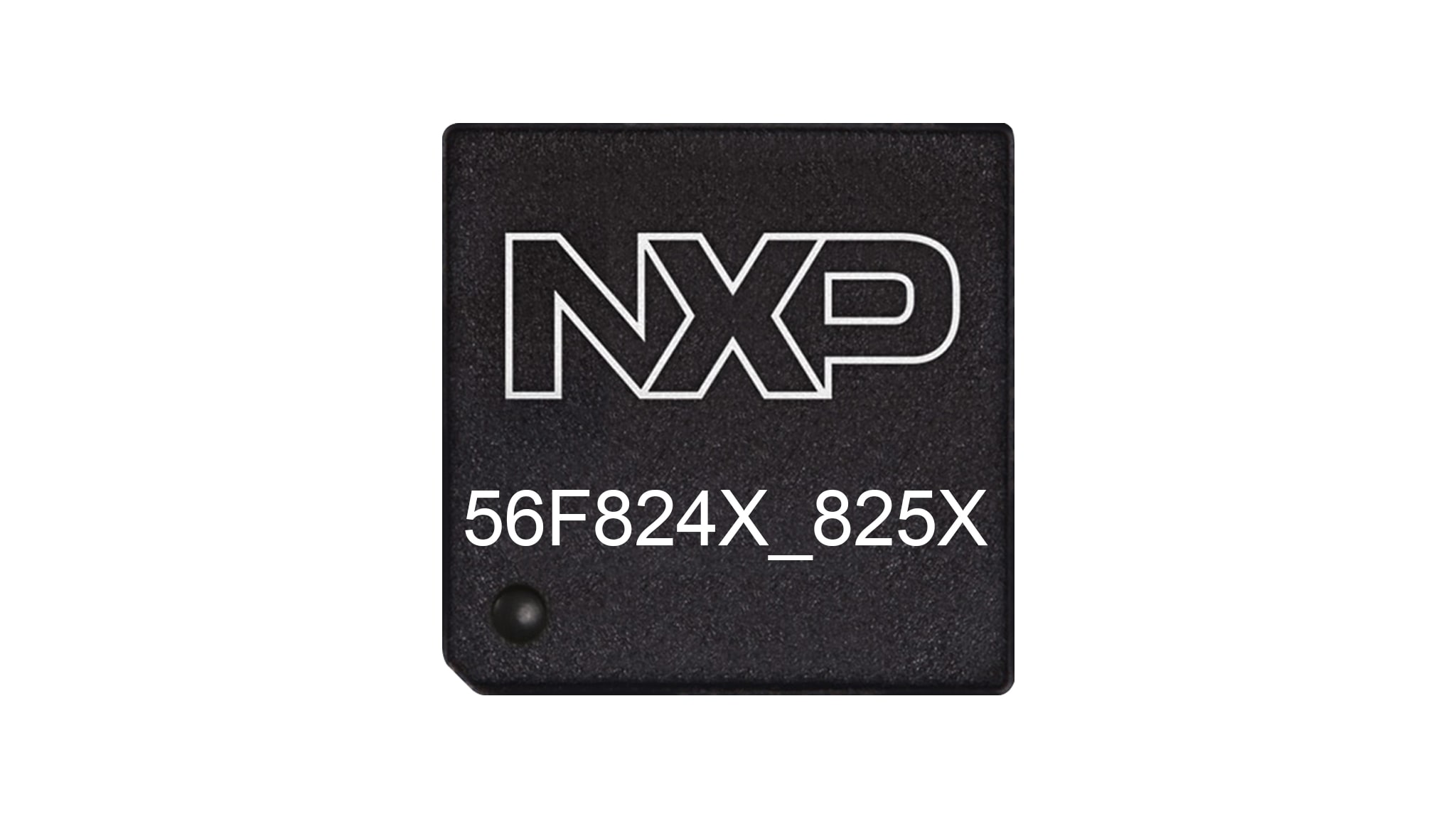

56F824X_825X Active

The NXP® MC56F825x/MC56F824x is a member of the 56800E core-based family of digital signal controllers (DSCs). It combines DSP processing power and microcontroller functionality on a single chip, with a flexible set of peripherals.

  • Offers an ideal fit for power conversion and motor control applications as well as other consumer and industrial applications
  • Provides a low-cost solution with configuration flexibility and compact program code
  • Includes fast, powerful peripherals that precisely measure and modulate power

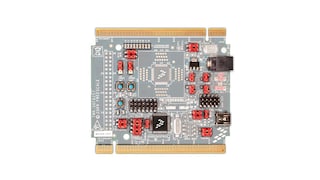

  • Supported by robust development tools to simplify and accelerate time-to-market

Block Diagram

56F824X/825X Digital Signal Controller

NXP<sup>&#174;</sup> 56F824X/825X Digital Signal Controller Block Diagram
Get diagram PDF

Features

  • 60 MHz operation frequency
  • On-chip memory
  • eFlexPWM with up to nine channels, including six channels with high-resolution NanoEdge placement
  • Two 8-channel, 12-bit ADCs with dynamic x2 and x4 programmable amplifier
  • Three analog comparators with integrated 5-bit digital-to-analog converter (DAC) references
  • Cyclic redundancy check (CRC) generator
  • Multiple communication interfaces such as QSPI, QSCI with LIN functionality, SMBus-compatible I²C and MSCAN 2.0 A/B module
  • Two 16-bit quad timers (2 x 4 16-bit timers)
  • On-chip relaxation oscillator: 8 MHz (400 kHz at standby mode)
  • Inter-module crossbar connection

Buy/Parametrics

1-10 of 12 results

Include 0 NRND

Part

Show description

Order

CAD Model

Status

Package Termination Count

Package Type

Budgetary Price excluding tax

Flash (kB)

RAM (kB)

Operating Frequency [Max] (MHz)

CAN

I2C

Ambient Operating Temperature (Min to Max) (℃)

Supply Voltage [Min to Max] (V)

MC56F8245MLD
Data Sheet

Active

44

LQFP44

10K @ US$4.11

48

6

60

—

2

-40 to 125

3 to 3.6

MC56F8245VLD
Data Sheet

Active

44

LQFP44

10K @ US$3.93

48

6

60

—

2

-40 to 105

3 to 3.6

MC56F8246MLF
Data Sheet

Active

48

LQFP48

10K @ US$4.18

48

6

60

—

2

-40 to 125

3 to 3.6

MC56F8246VLF
Data Sheet

Active

48

LQFP48

10K @ US$4.00

48

6

60

—

2

-40 to 105

3 to 3.6

MC56F8247MLH
Data Sheet

Active

64

LQFP64

10K @ US$5.09

48

8

60

—

2

-40 to 125

3 to 3.6

MC56F8247VLH
Data Sheet

Active

64

LQFP64

10K @ US$4.84

48

8

60

—

2

-40 to 105

3 to 3.6

MC56F8255MLD
Data Sheet

Active

44

LQFP44

10K @ US$4.71

64

8

60

1

2

-40 to 125

3 to 3.6

MC56F8255VLD
Data Sheet

Active

44

LQFP44

10K @ US$4.49

64

8

60

1

2

-40 to 105

3 to 3.6

MC56F8256MLF
Data Sheet

Active

48

LQFP48

10K @ US$4.78

64

8

60

1

2

-40 to 125

3 to 3.6

MC56F8256VLF
Data Sheet

Active

48

LQFP48

10K @ US$4.57

64

8

60

1

2

-40 to 105

3 to 3.6
