High-Voltage Development Platform

HVP-MC3PH Active

Roll over image to zoom in

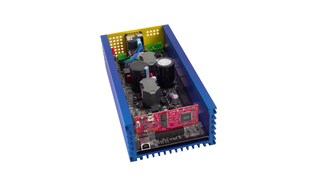

The NXP® High-Voltage Development Platform is an evaluation and development solution for Kinetis® V Series MCUs, Kinetis E Series MCUs and NXP Digital Signal Controllers.

  • The platform enables development of 3-phase PMSM, BLDC and ACIM motor control and power factor correction solutions in a safe high-voltage environment
  • It is an isolated solution that provides the development base for the Controller Cards supporting NXP MCUs
  • The platform is compatible with all Kinetis V series MCUs, Kinetis E Series MCUs and DSC Controller Cards. The development platforms include HVP-KV46F150M controller card in the box.

Block Diagram

High-Voltage Development Platform Block Diagram

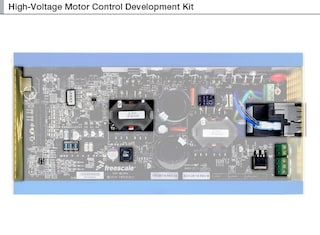

HVP-MC3PH High-Voltage Development Platform Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

KE Series Arm Cortex-M4/M0+

  • KE1xF: Kinetis KE1xF-168MHz, Performance with CAN 5V Microcontrollers based on Arm® Cortex®-M4

KV Series Arm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+
  • KV3x: Kinetis® KV3x-100–120 MHz,  Advanced 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M4
  • KV4x: Kinetis KV4x-168 MHz, High Performance Motor / Power Conversion MCUs based on Arm® Cortex®-M4
  • KV5x: Kinetis® KV5x-240 MHz, Motor Control and Power Conversion, Ethernet, MCUs based on Arm® Cortex®-M7

LPC5500 Arm Cortex-M33

  • LPC553x: LPC553x/S3x: Advanced Analog Arm®Cortex®-M33-Based MCU Family

32-Bit 56800EX/EF Core

  • MC56F82xxx: MC56F826xx and MC56F827xx Digital Signal Controllers
  • MC56F81xxx: Up to 100MHz Digital Signal Controllers with DSASS and Operational Amplifier
  • MC56F80xxx: DSCs with Integrated FPU and Trigonometric Math Engine with OPAMP and Quadrature Decoder

Features

Mainboard (power stage)

  • Input voltage 85-240 V AC, 110-390 VDC
  • Output power 1 kW without PFC, 0.8 kW with PFC
  • Output current 8 A peak
  • Analog sensing (input voltage, DCB voltage, DCB current, phase currents, back-EMF voltage, PFC currents, IGBT module temperature monitoring)
  • Motor speed/position sensors interface (Encoder, Hall, Tacho generator)
  • Overvoltage comparator with DC-brake resistor interface
  • Current inrush circuit
  • Hardware over-current fault protection

Controller cards

  • Accommodates target MCU (KE1xF, KV10, KV31, KV46, KV58, MC56F81768, MC56F80748, MC56F82748, MC56F83783)
  • SWD / JTAG and SCI isolation up to 5 kV
  • Onboard isolated power supply, allowing safe debugging
  • Controller card allows standalone operation
  • New OpenSDA debug interface
  • Mass storage device flash programming interface (default)
  • P&E multilink debug interface provides run-control debugging and compatibility with IDE tools
  • SEGGER J-Link-Lite allows users to take advantage of most J-Link features like the ultra-fast flash download and debugging speed or the free-to-use GDBServer
  • Can be powered by mini USB or by the main board

Buy Options

HVP-MC3PH-Image

Click to expand

  • HVP-MC3PH
    Active

  • High-Voltage Development Platform.

    • HVP-MC3PH High-Voltage Development Platform (main board)

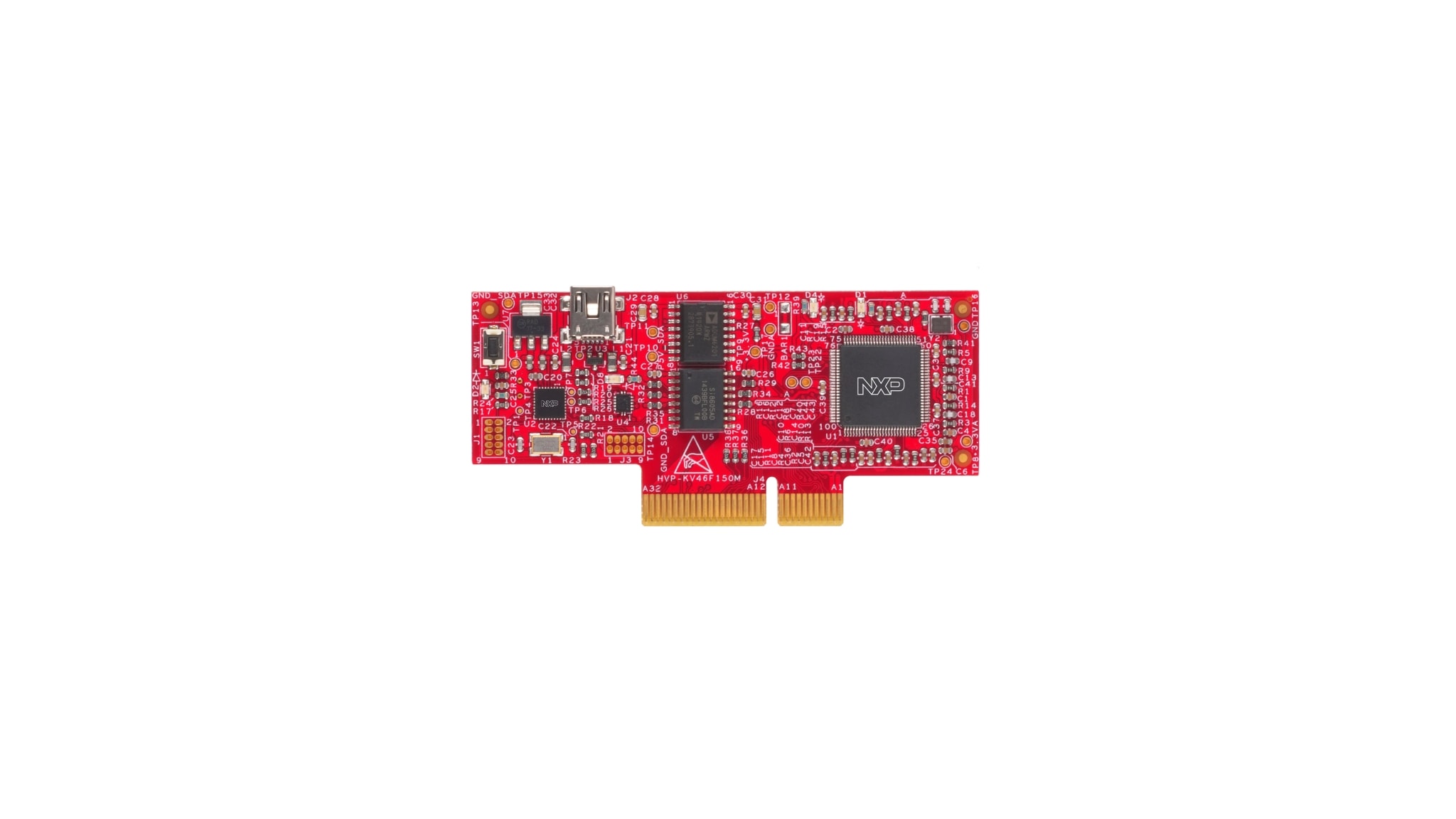

    • HVP-KV46F150M Controller Card
    • USB 2.0 cable, Receptacle A to plug B
    • USB 2.0 cable, Receptacle A to mini B
    • AC cable: USA/Canada, UK, JPN, EU
  • $690.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
HVP-KE18F-Image

Click to expand

  • For a quantity of 1
Order from distributors
HVP-KV58F-Image

Click to expand

  • $57.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
HVP-KV46F150M-Image

Click to expand

  • HVP-KV46F150M
    Active

  • High-Voltage Development Platform Controller Card, Kinetis V MCU, KV46, 150 MHz.

  • $57.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
HVP-KV31F120M-Image

Click to expand

  • HVP-KV31F120M
    Active

  • High-Voltage Development Platform Controller Card, Kinetis V MCU, KV31, 120 MHz.

  • $90.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
HVP-KV11Z75M-Image

Click to expand

  • $57.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
HVP-KV10Z32-Image

Click to expand

  • HVP-KV10Z32
    Active

  • High-Voltage Development Platform Controller Card, Kinetis V MCU, KV10, 75 MHz.

  • $90.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
HVP-56F83783-Image

Click to expand

  • HVP-56F83783
    Active

  • High-Voltage Development Platform.

  • High-Voltage Development Platform Controller Card, 32-bit DSC, 100 MHz
  • $57.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
HVP-56F82748-Image

Click to expand

  • HVP-56F82748
    Active

  • High-Voltage Development Platform Controller Card, 32-bit DSC, 100 MHz.

  • $57.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
HVP-56F81768-Image

Click to expand

  • $57.50 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
HVP-56F80748-Image

Click to expand

  • $57.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
