NXP® Freedom Development Platform for Low-Voltage, 3-Phase BLDC Motor Control

FRDM-MC-LVBLDC
Active

Roll over image to zoom in

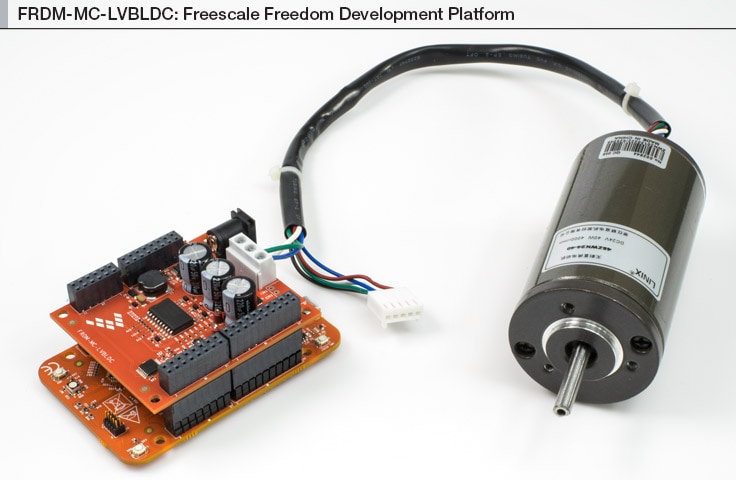

The FRDM-MC-LVBLDC low-voltage, 3-phase Brushless DC (BLDC) Freedom development board platform adds BLDC motor control capabilities, such as rotational or linear motion, to your design applications.

This evaluation board, in a shield form factor, when combined with NXP's Brushless DC Motor Control Reference Software effectively turns the Freedom development board platform into a complete motor control reference design, compatible with existing Freedom development platforms, FRDM-KV31F and FRDM-KV11Z.

Supported Devices

Processors and Microcontrollers

KV Series Arm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+
  • KV3x: Kinetis® KV3x-100–120 MHz,  Advanced 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M4

Features

Connectivity

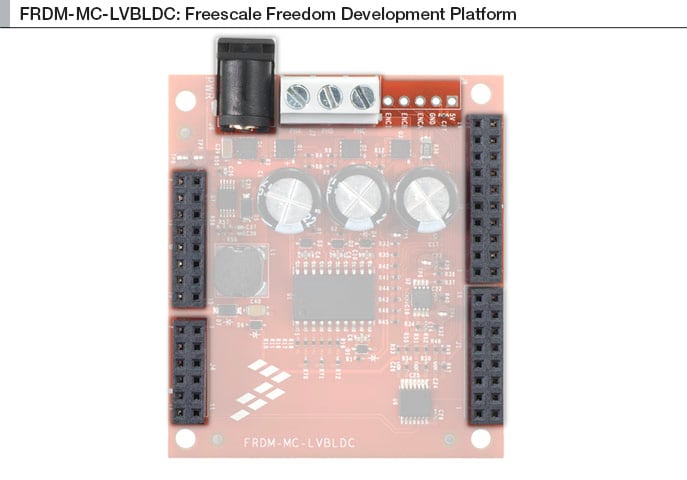

  • 3-phase bridge inverter (6-MOSFETs)
  • 3-phase MOSFET gate driver with over current and under voltage protection

Power Management

  • Power Supply Input voltage DC: 10-15VDC
  • Output current up to 5 amps RMS
  • Power supply reverse polarity protection circuitry
  • Analog sensing (DC bus voltage, DC bus current, 3-phase back-EMF voltage)
  • 5.5 VDC auxiliary power supply providing FRDM MCU board supplying

Sensors

  • Motor speed/position sensors interface (Encoder, Hall)
  • Freedom motor control headers compatible with Arduino® Rev3 pin layout

Buy Options

FRDM-MC-LVBLDC-Image

Click to expand

  • FRDM-MC-LVBLDC
    Active

  • NXP Freedom Development Board Platform, Kinetis V MCU, BLDC Motor Control.

    • FRDM-MC-LVBLDC Freedom Development Platform
    • Quick Start Card
    • Additional hardware required: one 3ph BLDC motor like FRDM-MC-LVMTR, or your own motor that meets the driver specifications (not included), one 12V/5A Power-supply and a compatible Freedom microcontroller board (not included).
  • $47.35 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
