Freedom Development Platform for Kinetis® KL43, KL33, KL27, KL17 and KL13 MCUs

FRDM-KL43Z Active

Roll over image to zoom in

FRDM-KL43Z RevC1 will no longer feature a MAG3110 Magnetometer due to EOL. The SDK is not affected.

The FRDM-KL43Z is an ultra-low-cost development platform for Kinetis® L families KL43, KL33, KL27, KL17 and KL13 MCUs built on Arm® Cortex®-M0+ processor running at 48 MHz.

The FRDM-KL43Z is supported by a range of NXP® and third-party development software.

Product Details

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL1x: Kinetis® KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL3x: Kinetis® KL3x-48 MHz, Segment LCD Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KL4x: Kinetis® KL4x-48 MHz, USB, Segment LCD, Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

Microprocessor

  • MKL43Z256VLH4 MCU
    • 48 MHz
    • 256 kB Flash
    • 32 kB SRAM
    • 16K ROM-based boot loader
    • 64 LQFP

Connectivity

  • USB device (FS)
  • Easy access to MCU I/O

Power Management

  • Flexible power supply options
    • USB
    • Coin-cell battery
    • External source
  • Battery-ready, power-measurement access points

Sensors

  • Capacitive touch slider
  • MMA8451Q accelerometer

Debug

  • OpenSDA debug interface
  • P & E Debug interface provides run-control debugging and compatibility with IDE tools
  • CMSIS-DAP interface: new Arm® standard for embedded debug interface Refer to the FRDM-KL43Z User’s Manual and OpenSDA User’s Guide for more information

Tools and OS Support

  • Mass storage device flash programming interface (default) –no tool installation required to evaluate demo apps
  • Software support and application development are offered through the Kinetis® software development kit (SDK), an extensive suite of robust peripheral drivers, stacks, and middleware (replacing Sample Code Packages/examples). Get expert advice and support by joining the Kinetis Software Development Kit Community forum

Display

  • Segment LCD
  • Form factor compatible with Arduino® Rev3 pin layout

More

Buy Options

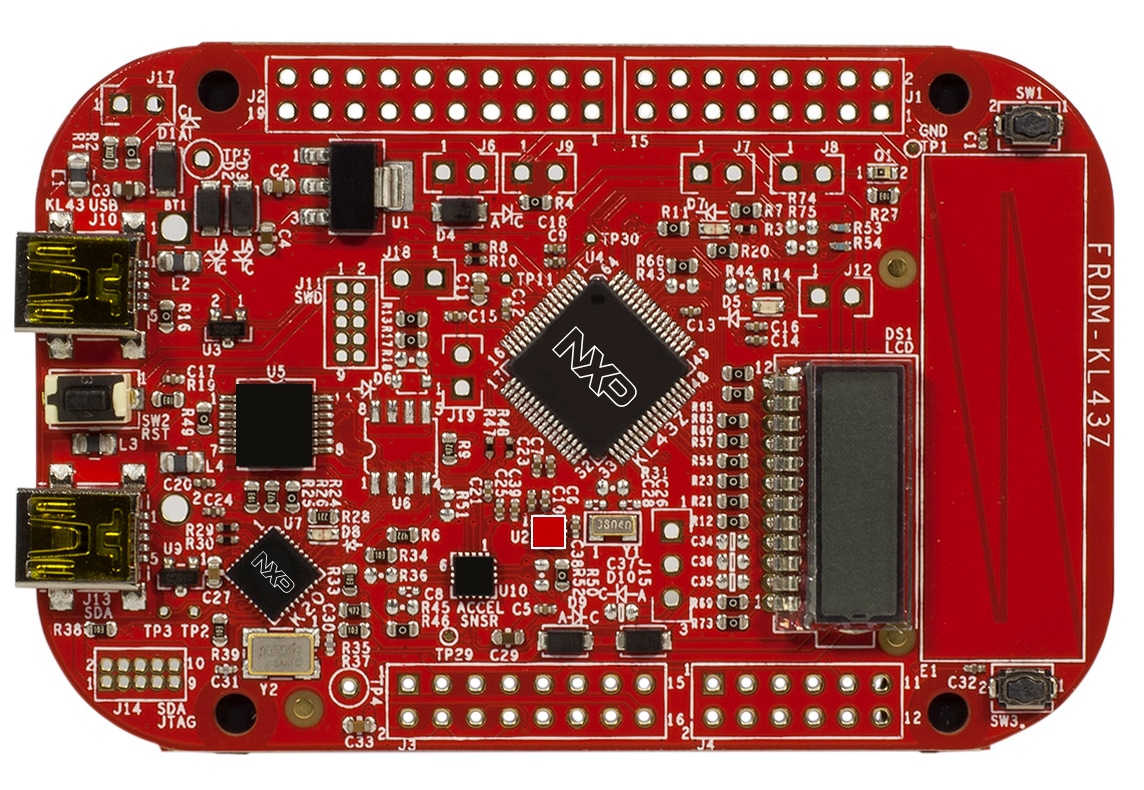

FRDM-KL43Z-Image

Click to expand

  • FRDM-KL43Z
    Active

  • Freedom Development Board for Kinetis KL13, KL17/KL27 (128-256KB Flash), KL33 and KL43 MCUs.

    • FRDM-KL43Z hardware
    • Quick Reference Card
    • Additional hardware required: USB A-to-MiniB cable (not included)
  • For a quantity of 1
Order from distributors
