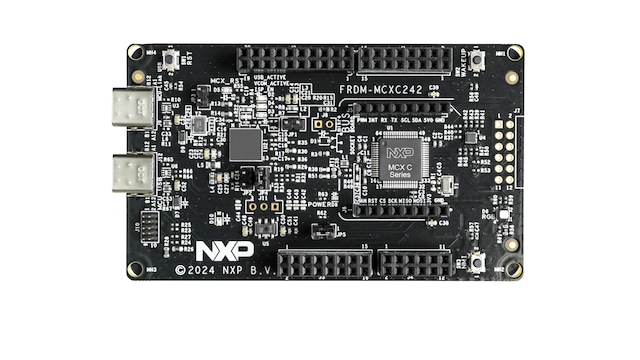

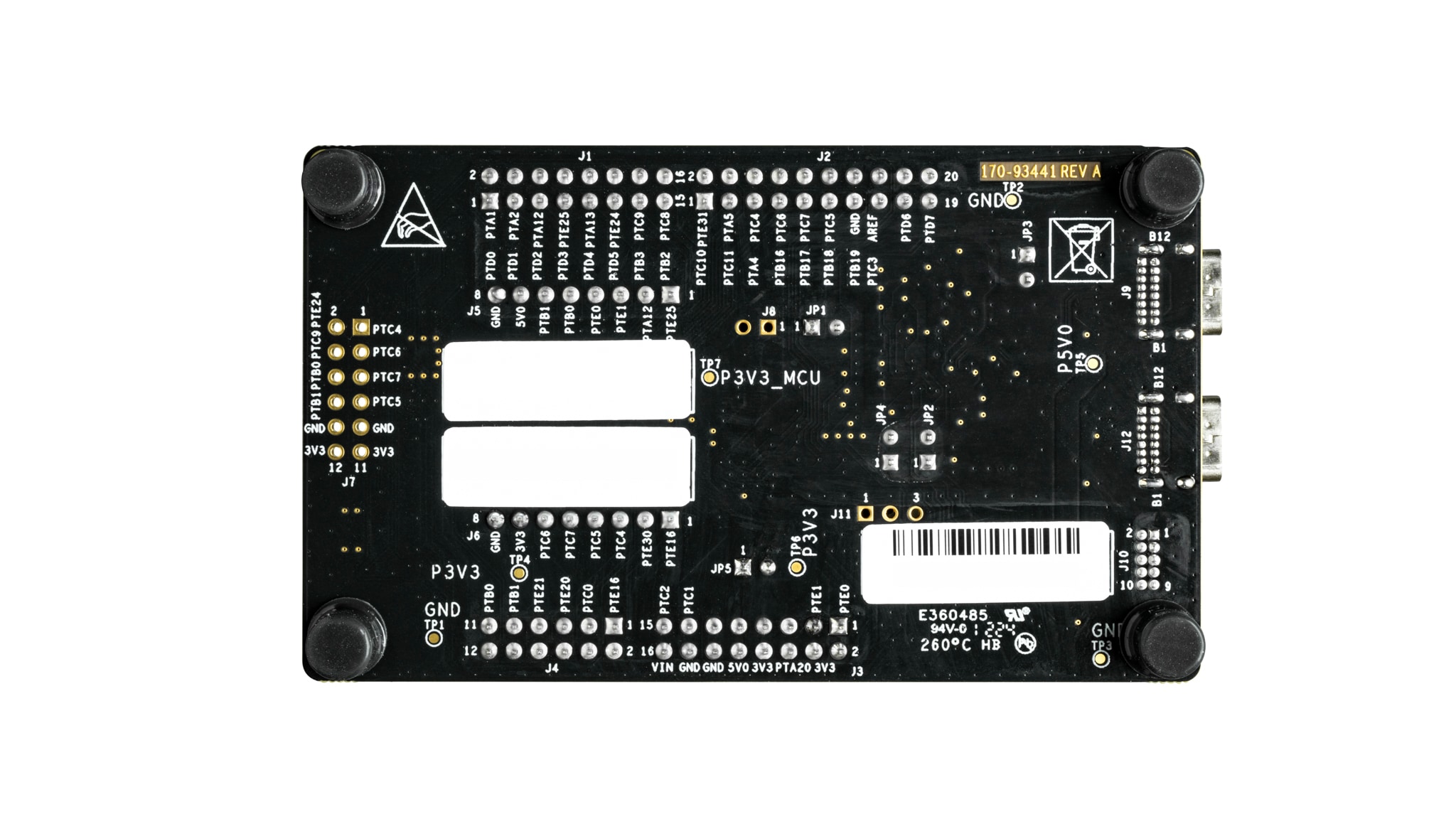

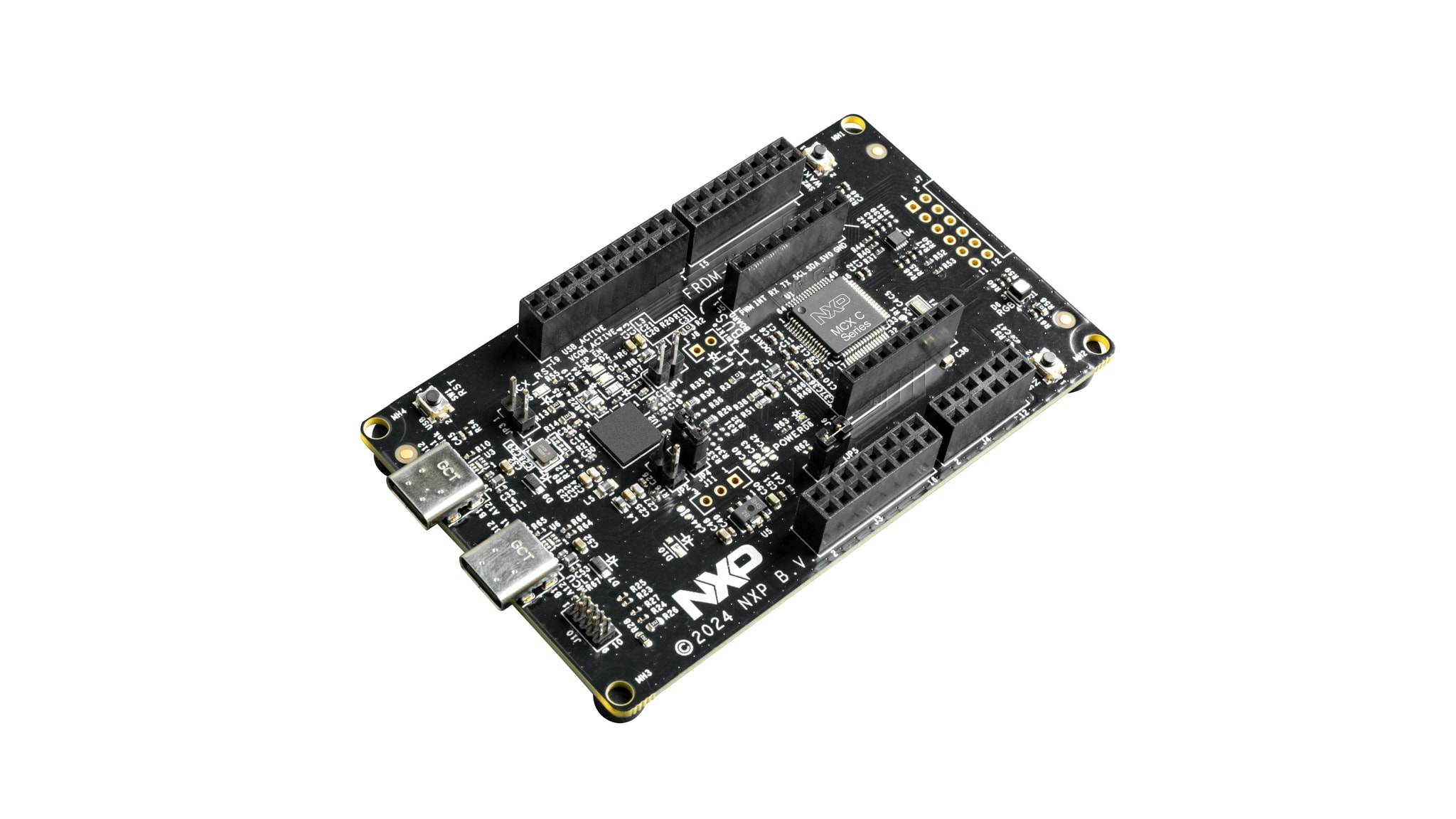

FRDM Development Board for MCX C242 MCUs

FRDM-MCXC242 Active

Roll over image to zoom in

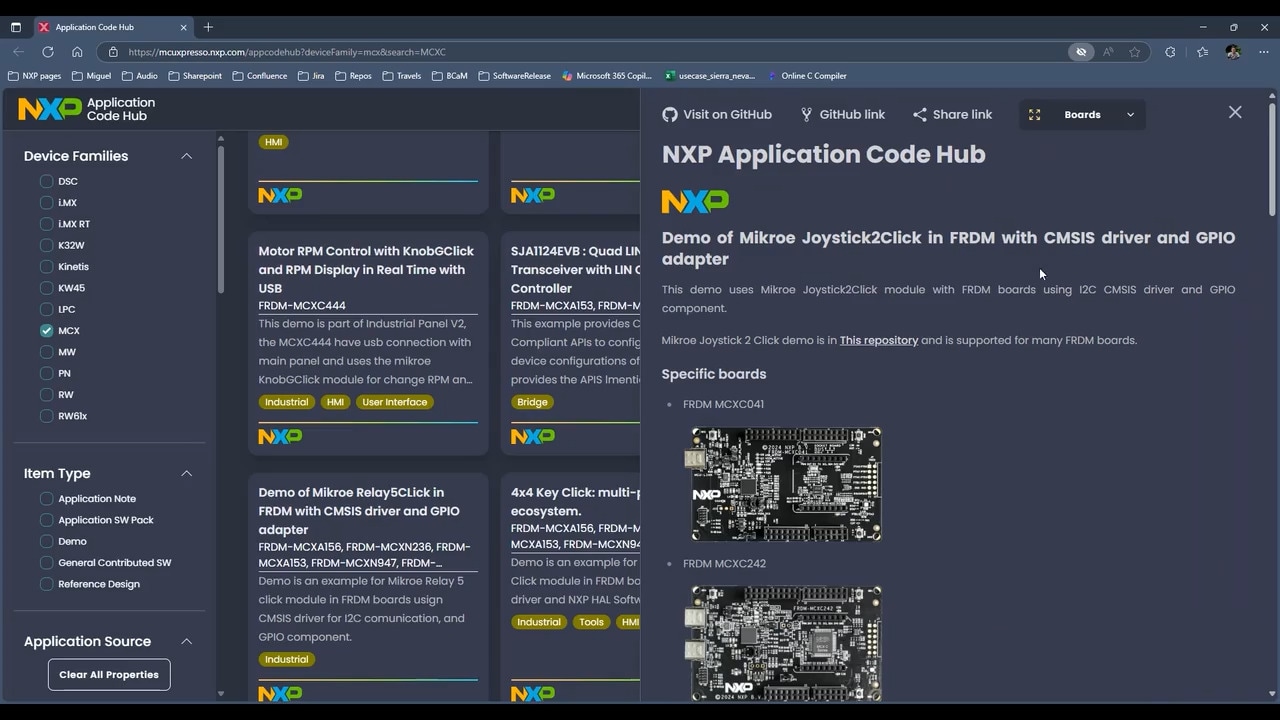

FRDM-MCXC242 is a compact and scalable development board for rapid prototyping of MCX C242 MCU. It offers industry standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces and on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Block Diagram

FRDM-MCXC242

FRDM-MCXC242-
Get diagram PDF

Supported Devices

Sensors

Accelerometers

  • FXLS8974CF: ±2g/±4g/±8g/±16g, Low-Power 12-Bit Digital IoT Accelerometer

Processors and Microcontrollers

MCX C Series Microcontrollers

  • MCX-C14x-24x-44x: MCX C14x/24x/44x MCUs with Arm® Cortex® M0+, Entry level MCUs with USB, Segment LCD and Classical Peripherals

Features

Microcontroller

  • MCXC242 Arm™ Cortex™ -M0+ core @48MHz with optimized performance efficiency, Up to 64KB flash and 16KB RAM

Connectivity

  • FS USB-Type C connector
  • SPI/I²C/UART connector (mikroBUS, Pmod™ *DNP)
  • WIFI connector (mikroBUS, Pmod™ *DNP)

Debug

  • On-board MCU-Link debugger with CMSIS-DAP
  • SWD connector

Sensor

  • FXLS8974CFR3 3-axis Accelerometer
  • NTC temperature sensor

Expansion Options

  • Arduino® Header
  • FRDM Header
  • Pmod™ *DNP
  • mikroBUS™

User Interface

  • RGB user LED, Reset, ISP, wake-up buttons

Buy Options

FRDM-MCXC242-Image

Click to expand

  • FRDM-MCXC242
    Active

  • FRDM Development Board for MCX C242 MCUs.

  • Kit Contains

    • FRDM-MCXC242
    • Quick Start Guide
    • USB Cable Type-C
  • $10.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
ADD TO CART
