FRDM Development Board for MCX A144/5/6 A154/5/6 MCUs

FRDM-MCXA156
Active

Roll over image to zoom in

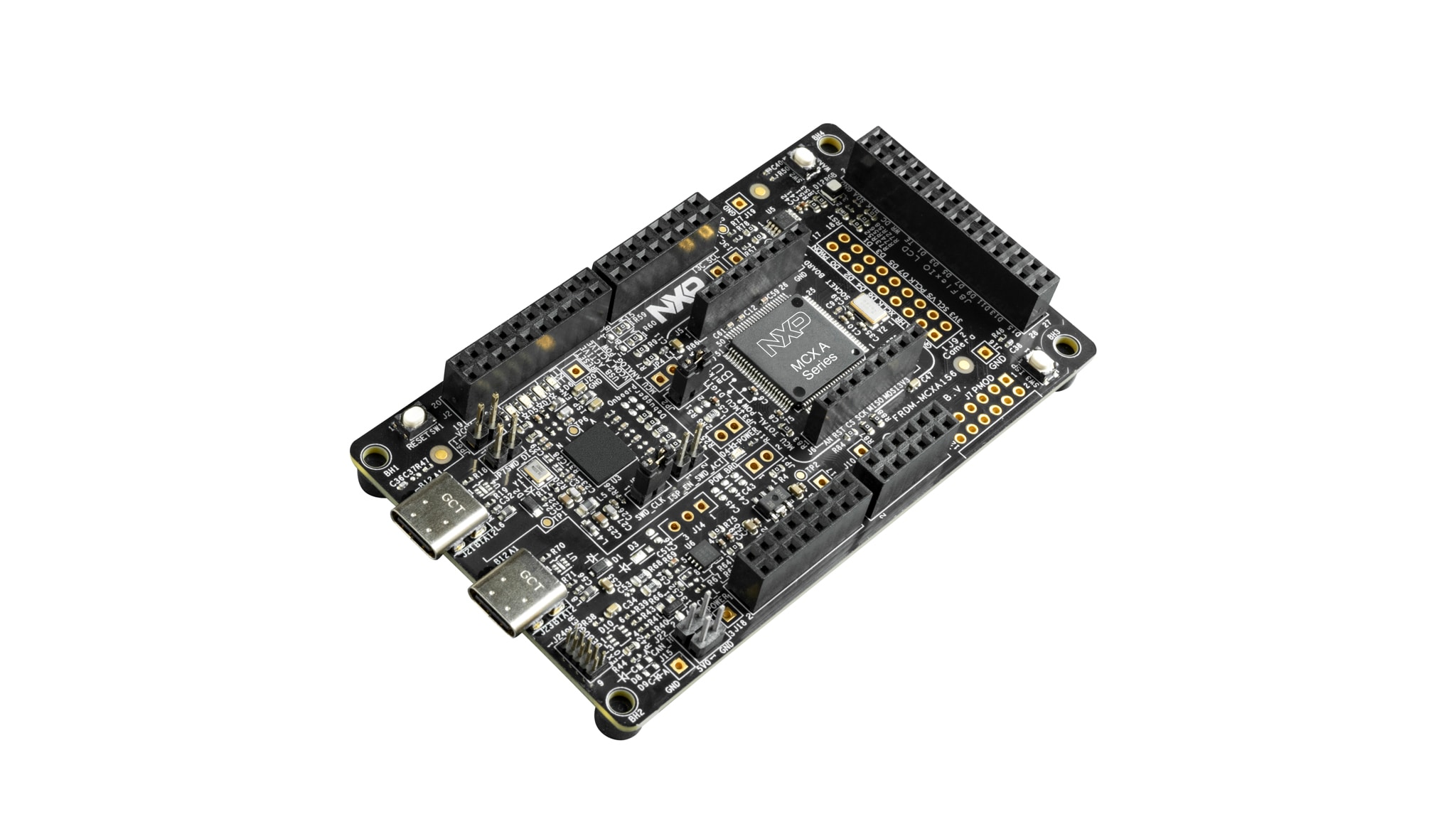

FRDM-MCXA156 are compact and scalable development boards for rapid prototyping of MCX A144/5/6 A154/5/6 MCUs. They offer industry standard headers for easy access to the MCU's I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger. Additional tools like our Expansion Board Hub for add-on boards and the Application Code Hub for software examples are available through the MCUXpresso Developer Experience.

Block Diagram

FRDM MCXA156

FRDM-MCXA156 Block Diagram
Get diagram PDF

Supported Devices

Processors and Microcontrollers

MCX A Series Microcontrollers

  • MCX-A13X-A14X-A15X: MCX A13x, 14x, 15x MCUs with Arm® Cortex® M33, Scalable Device Options, Low Power and Intelligent Peripherals

Sensors

I3C/I²C Digital Temp. Sensors

  • P3T1755DP: I3C/I²C-Bus ±0.5 °C Accurate Digital Temperature Sensor

Accelerometers

  • FXLS8971CF: ±2g/±4g/±8g/±16g, Low Power 12-Bit Digital Accelerometer
  • FXLS8961AF: ±2g/±4g/±8g/±16g, Low Power 12-Bit Digital Accelerometer

Features

Microcontroller

  • MCXA156 Arm® Cortex®-M33 core
  • Up to 1 MB flash with up to 128 KB RAM with 8 KB ECC, CAN-FD, FlexIO, FS USB, I3C, LPLUART, LPSPI, LPI2C, DMA and LDO

Connectivity

  • FS USB ports with USB Type-C connector for device functionality
  • HS USB Type-C connectors (On-board MCU-Link debugger)
  • CAN/I3C/SPI/I2C/UART connector (Arduino, PMOD/mikroBUS, DNP)
  • Wi-Fi connector (Arduino, PMOD/mikroBUS, DNP)

Debug

  • On-board MCU-Link debugger with CMSIS-DAP
  • JTAG/SWD connector

Sensor

Expansion Options

  • Arduino® Header
  • FRDM Header
  • Pmod™ *DNP
  • mikroBUS™
  • FlexIO/LCD Header
  • FlexIO/Camera Header

User Interface

  • RGB user LED
  • Plus reset
  • ISP
  • Wake-up buttons

Buy Options

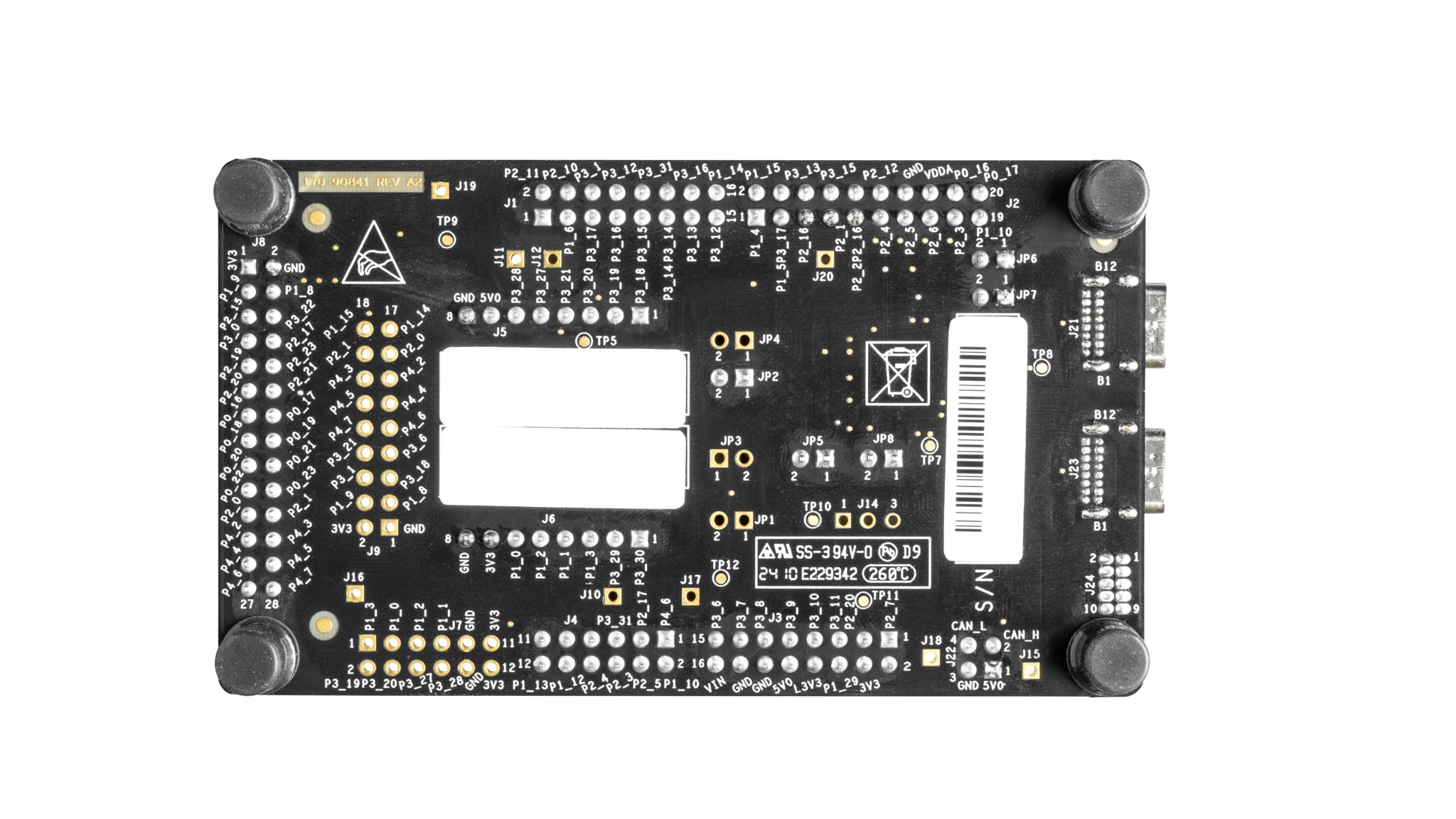

FRDM-MCXA156-Image

Click to expand

  • FRDM-MCXA156
    Active

  • FRDM Development Board for MCX A144/5/6 A154/5/6 MCUs.

  • $15.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
