3.5” 480x320 IPS TFT LCD Module

LCD-PAR-S035 Active

Roll over image to zoom in

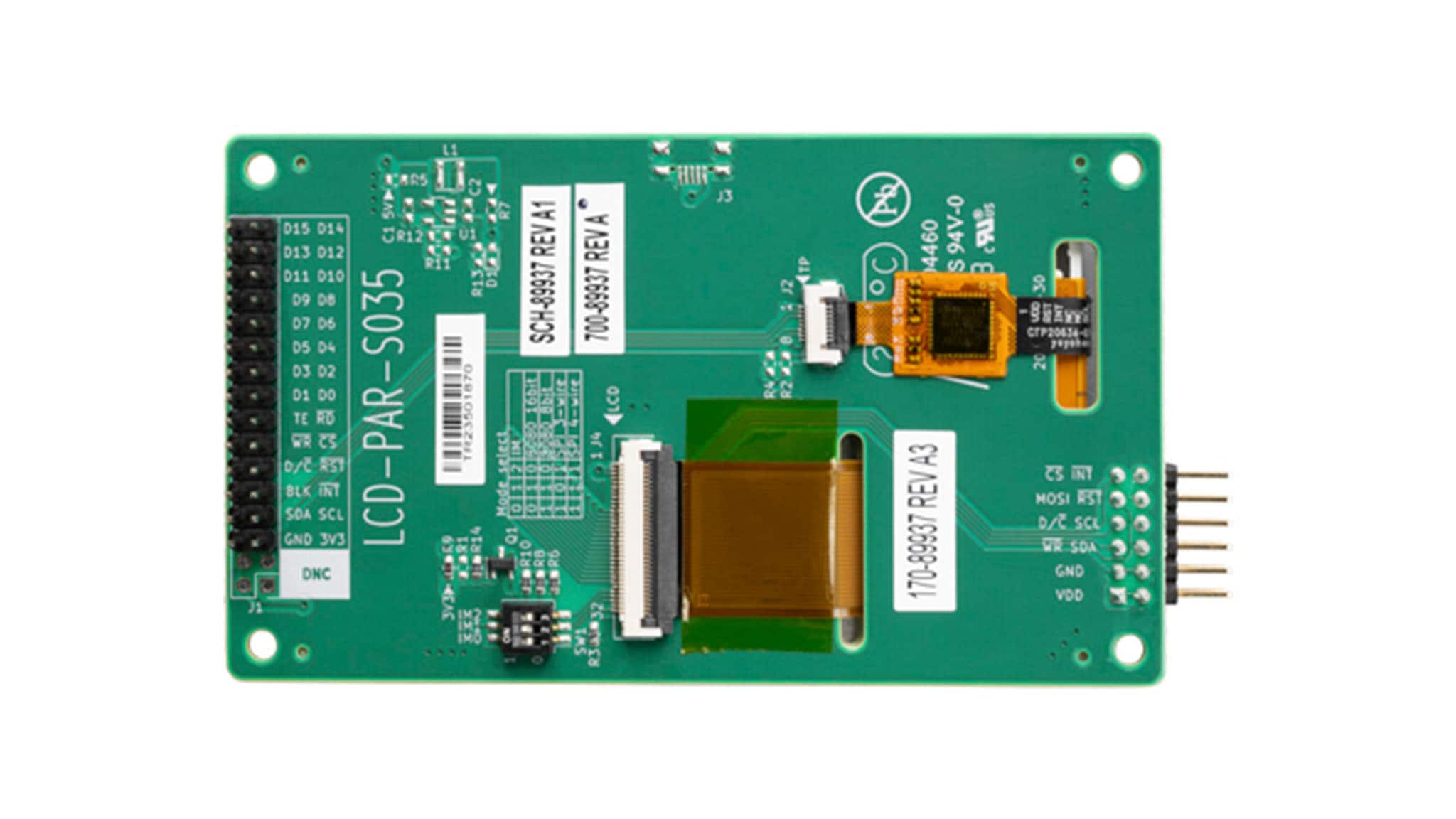

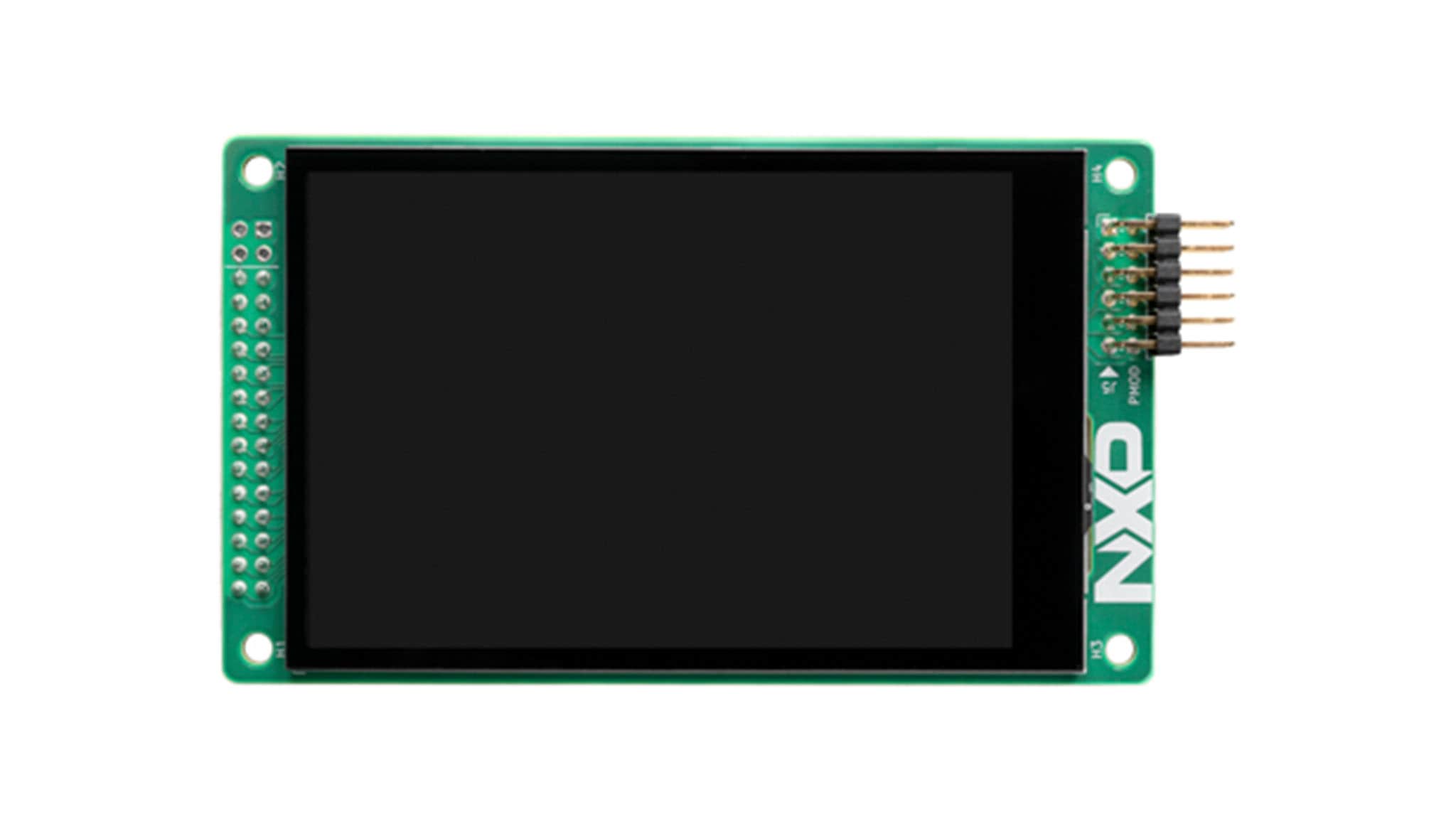

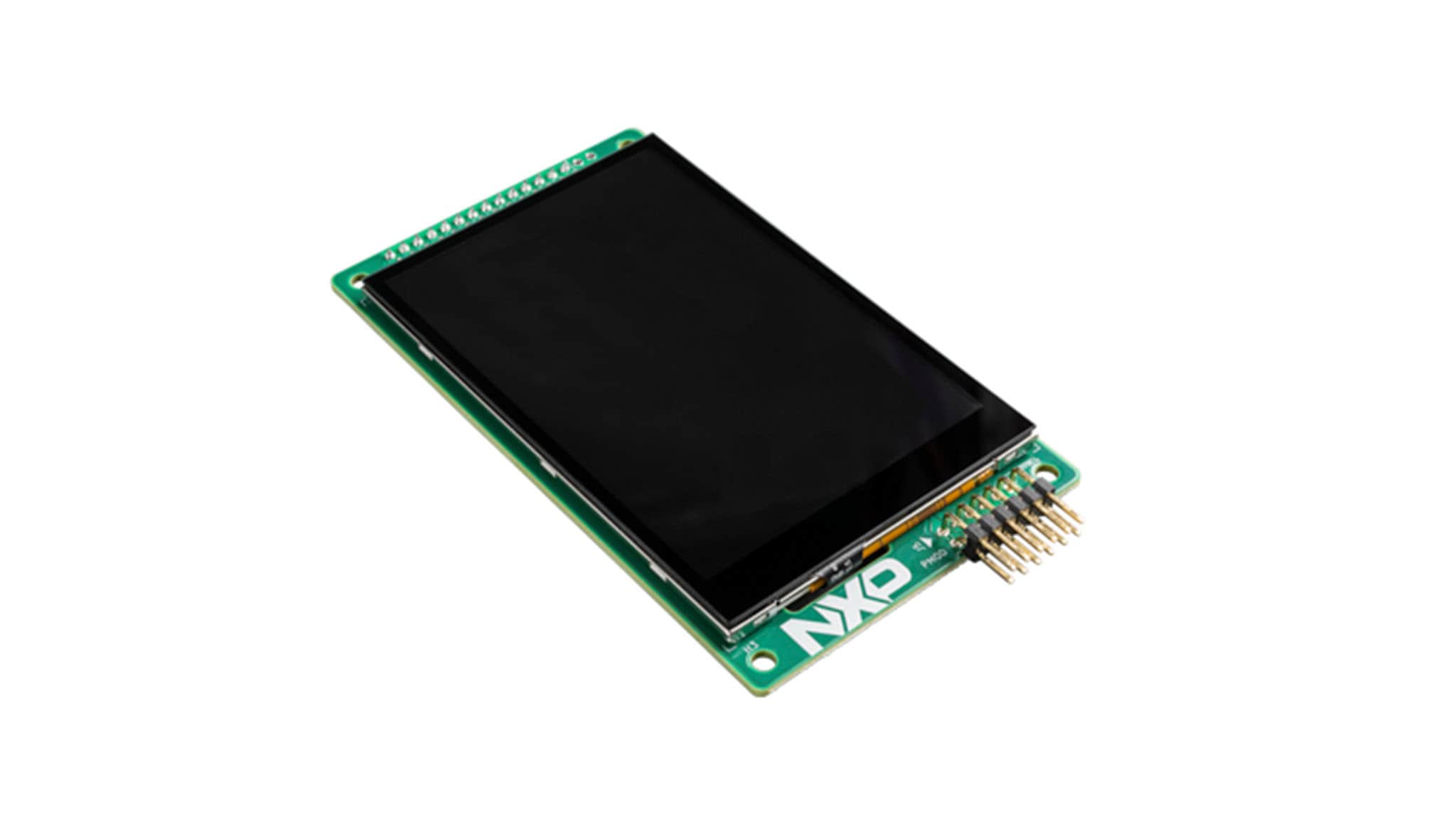

The LCD-PAR-S035 is a 3.5” 480x320 IPS TFT LCD module with wide viewing angle and 5-point capacitive touch functionality. The LCD module can be controlled through either SPI or parallel (8/16bit) 8080/6800 and is compatible with existing evaluation kits with a PMOD connector as well as selected FRDM-X evaluation kits with a parallel LCD connector.

Supported Devices

Processors and Microcontrollers

MCX N Series Microcontrollers

  • MCX-N94X-N54X: MCX N94x/54x Highly Integrated Multicore MCUs with On-Chip Accelerators, Intelligent Peripherals and Advanced Security

MCX A Series Microcontrollers

  • MCX-A13X-A14X-A15X: MCX A13x, 14x, 15x MCUs with Arm® Cortex® M33, Scalable Device Options, Low Power and Intelligent Peripherals

Features

Connectivity

  • Display: SPI or 8/16bit 8080 parallel
  • Touch: I2C

Display

  • Wide viewing angle, transmissive IPS TFT LCD
  • 320x480 (HVGA) display resolution
  • Maximum 262k colors

Sensor

  • 5-point capacitive multi-touch sensor

Buy Options

LCD-PAR-S035-Image

Click to expand

  • $29.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
ADD TO CART
