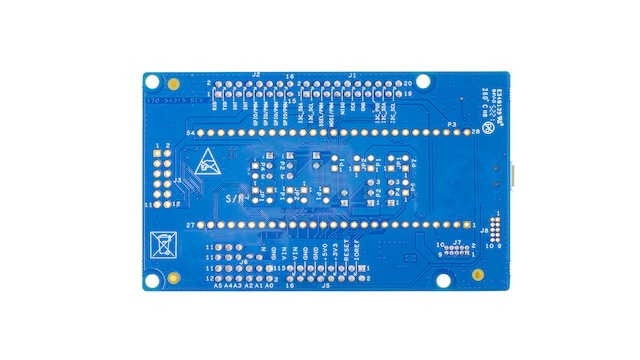

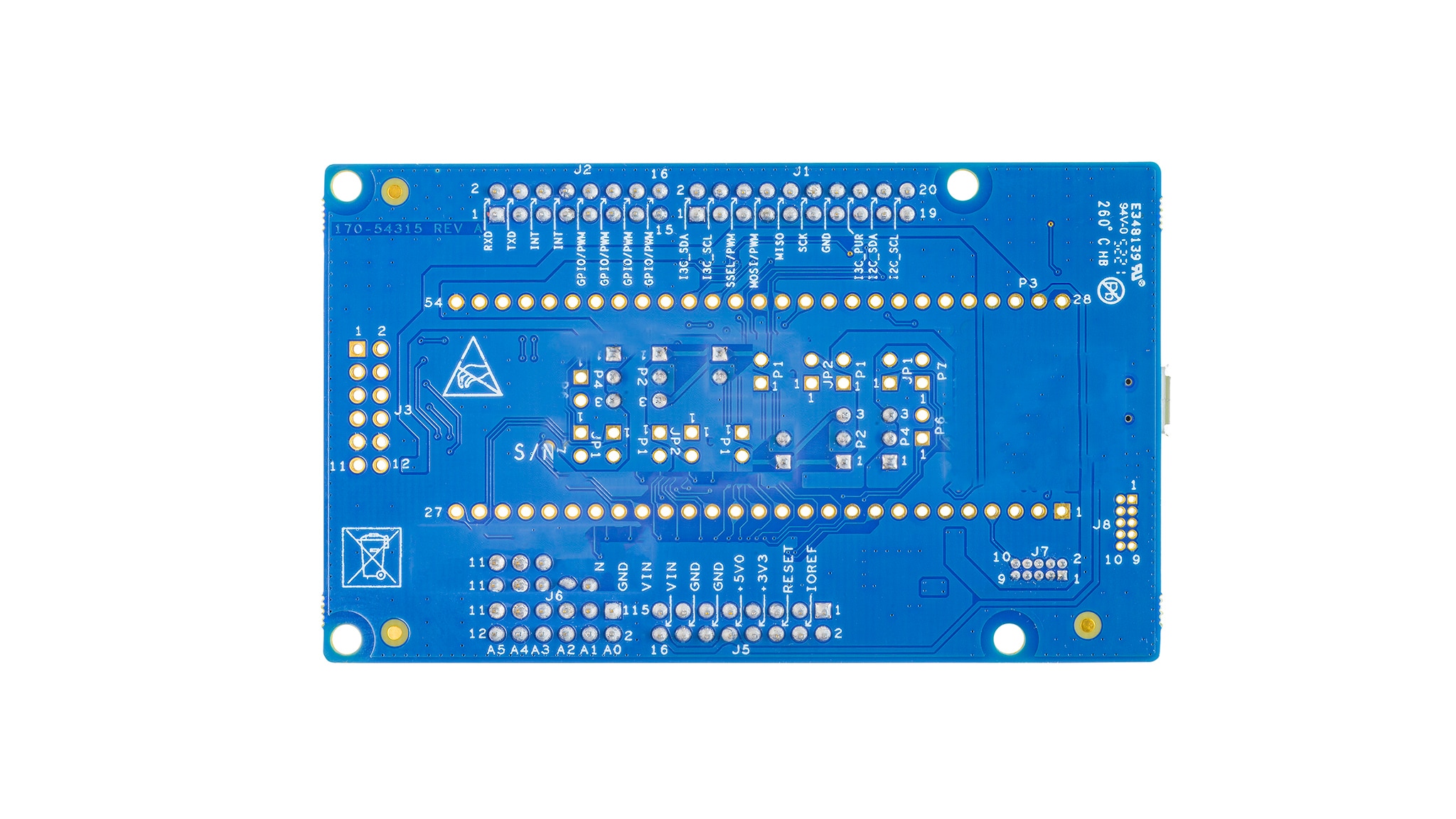

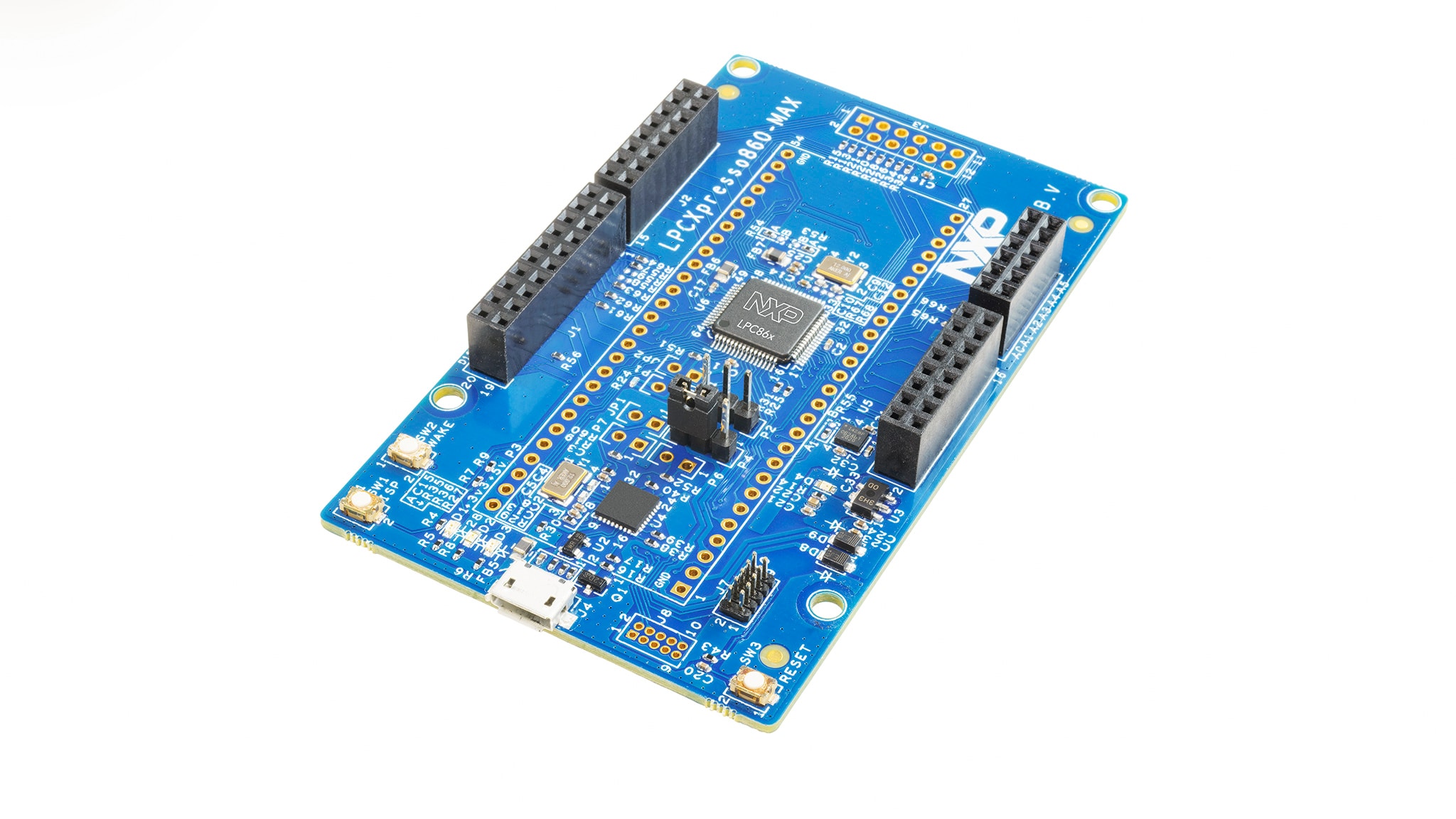

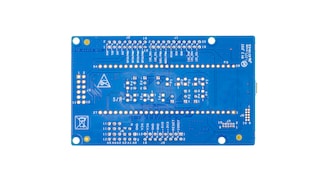

LPCXpresso860-MAX Development Board for LPC860 MCUs

LPCXPRESSO860-MAX Active

Roll over image to zoom in

The LPCXpresso860-MAX development board enables evaluation and prototyping for the LPC86x family of MCUs with Arduino® and Pmod™ interfaces. The LPC86x is a cost-effective Arm® Cortex®-M0+ based 32-bit MCU family operating at the frequency of up to 60 MHz and supports up to 64KB of flash memory and up to 8 KB SRAM. The boards are supported by the MCUXpresso ecosystem, which includes an SDK, a choice of IDEs and secure provisioning and configuration tools to help speed up development.

Supported Devices

Processors and Microcontrollers

LPC800 Arm Cortex-M0+

  • LPC86X: LPC860: 32-Bit Arm® Cortex®-M0+-Based Low-Cost MCU with I3C Interface

Features

Software and tools

  • MCUXpresso Ecosystem Support
    • Selection of IDE Choices
    • Pin, clock, peripherals, security and memory config tools
    • Security programming and provisioning tools
    • Software development kit
  • Zephyr RTOS Support

Processor

  • LPC865 Arm Cortex-M0+ MCU running at up to to 60 MHz
  • On-board CMSIS-DAP (Debug Probe) with VCOM Port, based on LPC11U35 MCU

Connectivity

  • LPCXpresso expansion connector
  • Arduino® connectors compatible with the Adruino UNO platform
  • Pmod® Compatible Expansion Header

HMI

  • Red, green and blue user LEDs
  • Target ISP and user/wake buttons
  • Target reset button

Buy Options

LPC860-MAX-Image

Click to expand

  • LPC860-MAX
    Active

  • LPCXpresso860-MAX Development Board for LPC860 MCUs.

  • $15.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: >100
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors

Documentation

Quick reference to our documentation types.

Filters

4 documents

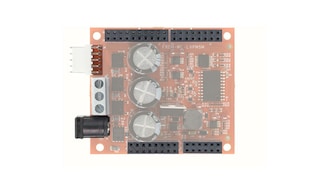

Related Hardware
