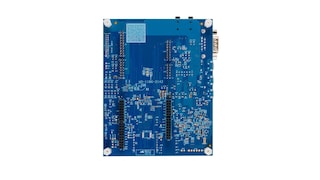

LPCXpresso55S36 Development Board

LPCXpresso55S36 Active

Roll over image to zoom in

LPCXpresso boards for the LPC5500 series MCUs provide a powerful, extendable platform for evaluation and prototyping using the MCUXpresso suite of software and tools. Arduino UNO Mikroelekronika Click module sites provide a wide selection of add-on options. The boards feature a high speed USB debug probe based with easy firmware update options to support CMSIS-DSP or a special version of J-link LITE from SEGGER. The board can also be used with an external debug probe such as those from SEGGER and P&E.

Product Details

Features

Connectivity

  • I²C, UART and SPI port from LPC55S36, CAN-FD transceiver and D-sub connector compatible with PCAN-USB FD adaptor

Debug Capabilities

  • On-board, high-speed USB, MCU-link debug probe with CMSIS-DAP and SEGGER J-Link protocol options
  • Hardware support for external debug probe or external debug target

Expansion Connectors

  • MikroEletronika Click expansion option
  • LPCXpresso-V3 expansion connectors, compatible with arduino UNO R3
  • PMod compatible expansion / host connector

User Interface

  • RGB user LED, plus reset, ISP, wake and user buttons

Buy Options

LPC5536-EVK-Image

Click to expand

  • LPC5536-EVK
    Active

  • LPCXpresso55S36 Development Board.

  • $70.43 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 10
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
LPC55S36-EVK-Image

Click to expand

  • $70.43 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
