Smart Card Trust Provisioning for MCUs

SMARTCARD-TRUST-PROVISIONING
Smart Card Trust Provisioning for MCUs

Click over video to play

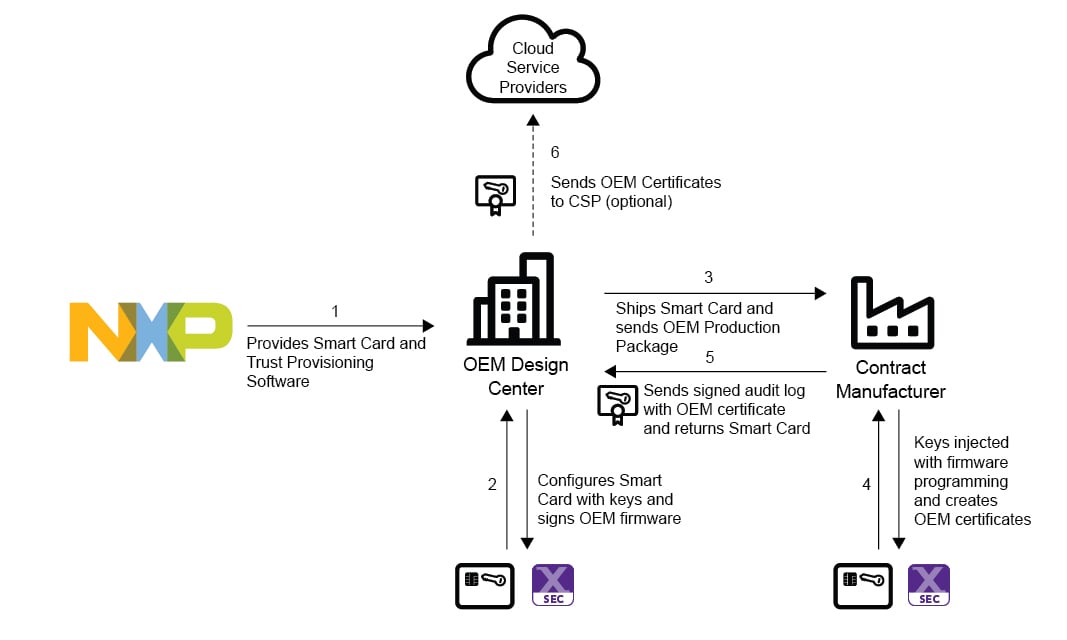

NXP Smart Card Trust Provisioning is a security enablement for original equipment manufacturers (OEMs) to manage their production process with contract manufacturers (CMs). With MCUXpresso SEC tools and a smart card provided by NXP, OEM’s secrets and intellectual property are sealed and securely transferred to NXP genuine devices during their manufacturing process.

OEMs have the control of the manufacturing process: a production limit is configured and locked in the smart card, and a factory audit log generated by the SEC tool at the CM premise enables the OEM to review the number of provisioned devices. Device-specific certificates are generated and passed to the OEM, which can then be used for cloud onboarding. Smart Card Trust Provisioning is provided as a part of the MCUXpresso SEC tool, supporting NXP general purpose MCUs.

The Smart Card Trust Provisioning solution is available for qualified customers. Contact your local NXP sales representative to learn more.

Diagram

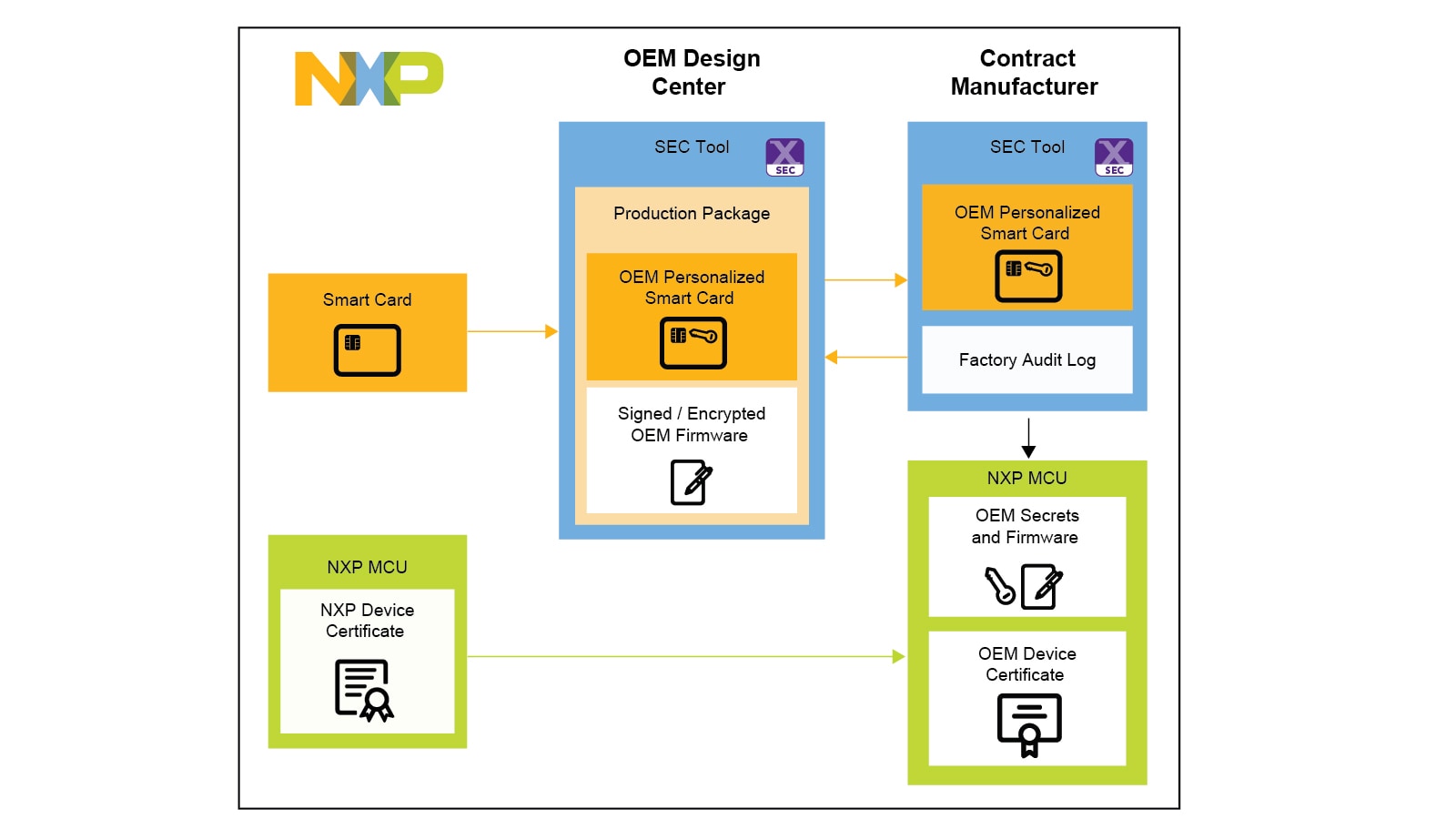

Smart Card Trust Provisioning Block Diagram

Smart Card TP Block Diagram
Get diagram PDF

Features

  • Credentials and software IP protection
  • Counterfeit device detection
  • Over-production protection
  • Factory audit log generation
  • Secure keys generation and injection
  • Code signing and encryption
  • Secure code programming
  • Secure device certificate generation
  • Certificate harvesting

Supported Devices

  • LPC55S6x: High Efficiency Arm® Cortex®-M33-Based Microcontroller Family
  • LPC552x-S2x: LPC552x/S2x: Mainstream Arm® Cortex®-M33-based Microcontroller Family
  • LPC551X-S1X: LPC551x/S1x: Baseline Arm® Cortex®-M33-Based Microcontroller Family
  • LPC550x: LPC550x/S0x: Baseline Arm® Cortex®-M33-Based Microcontroller Family
  • LPC553x: LPC553x/S3x: Advanced Analog Arm®Cortex®-M33-Based MCU Family
