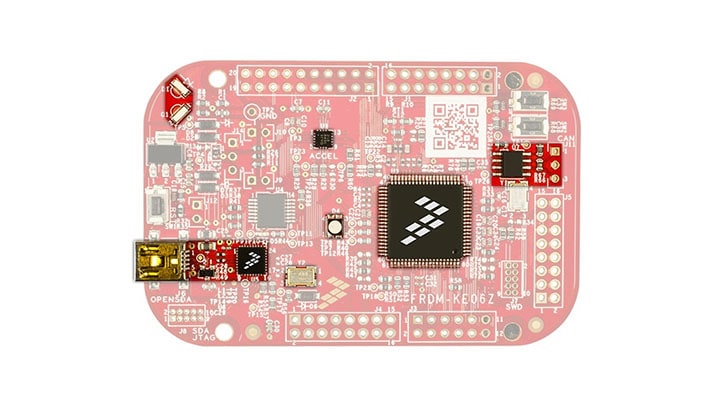

Freedom Development Platform for Kinetis® KE06 MCUs

FRDM-KE06Z Active

Roll over image to zoom in

The FRDM-KE06Z is a simple yet sophisticated development platform for Kinetis® KE06 MCUs, built on Arm® Cortex®-M0+ core.

  • Features include easy access to MCU I/O, battery-ready, a standard-based form factor with expansion board options and a built-in debug interface for flash programming and run-control
  • The FRDM-KE06Z is supported by a range of NXP® and third-party development software

Product Details

Supported Devices

Processors and Microcontrollers

KE Series Arm Cortex-M4/M0+

  • KE04: Kinetis® KE04-48 MHz, Mainstream Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core
  • KE06: Kinetis® KE06-48 MHz, Mainstream with CAN Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

Microcontroller

    MKE06Z128VLK4 MCU

  • 48 MHz
  • 128 kB Flash
  • 16 kB SRAM
  • 80 LQFP

Connectivity

  • CAN communication
  • Easy access to MCU I/O
  • Key input
  • Form factor compatible with Arduino® Rev3 pin layout

Power Management

    Flexible power supply options

  • USB
  • External source

Debug

    New, OpenSDA debug interface

  • Mass storage device flash programming interface (default)
    • No tool installation required to evaluate demo apps
  • P&E Debug interface provides run-control debugging and compatibility with IDE tools
  • CMSIS-DAP interface: new Arm® standard for embedded debug interface

Sensors

  • MMA8451Q accelerometer

Components

  • RGB LED
  • IrDA transmitter and receiver

More

Buy Options

FRDM-KE06Z-Image

Click to expand

  • FRDM-KE06Z
    Active

  • Freedom Development Board for Kinetis KE04 (64-128 KB Flash) and KE06 MCUs.

    • FRDM-KE06Z hardware
    • Quick reference card
    • Additional hardware required: USB A-to-MiniB cable (not included)
  • $45.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 6
    • Shipping: Normally ships 1-2 business days
ADD TO CART
