NXP Freedom Platform for K32 L2A MCUs

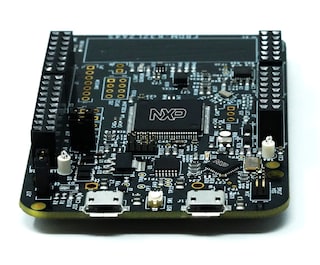

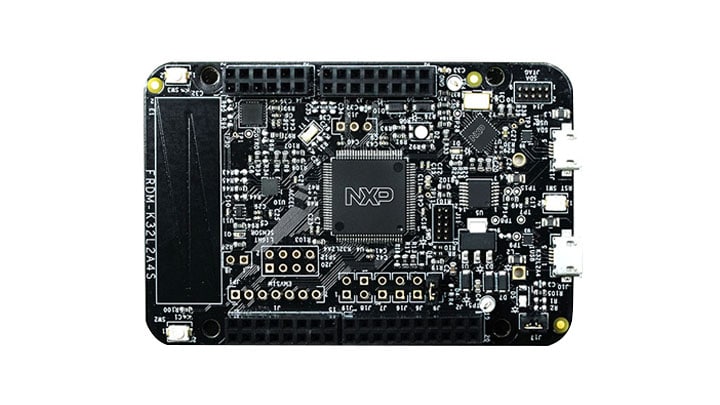

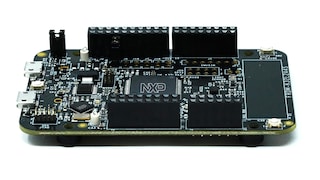

FRDM-K32L2A4S

Roll over image to zoom in

The FRDM-K32L2A4S Freedom development platform provides an ideal board for evaluation and development of the K32 L2A MCU family based on the Arm® Cortex®-M0+ architecture. This platform includes an onboard debug probe, accelerometer/magnetometer, a full-speed USB and easy access to K32 L2A's MCU I/O.

The FRDM-K32L2A4S board is fully supported by the MCUXpresso suite of tools, which provides device drivers, middleware and examples to allow rapid development, plus configuration and an optional free of charge IDE.

Supported Devices

Processors and Microcontrollers

K32 L Series Arm Cortex-M4/M0+

  • K32-L2: Ultra-Low-Power, Highly Integrated MCU

Features

Microcontroller

  • K32L2A41VLL1A MCU running at up to 72 MHz
  • 512 kB Flash Memory
  • 128 kB SRAM Memory

Connectivity

  • Full-speed USB with micro A/B connector for OTG functionally
  • Easy Access to K32 L2A MCU I/O

Debug

  • OpenSDA debug interface
  • P&E Debug interface provides run-control debugging and compatibility with IDE tools

Sensors

  • NXP FSO8700CQ digital sensor, 3D accelerometer (±2g/±4g/±8g) + 3D magnetometer

Power Management

  • Flexible power supply options

Expansion Options

  • Form factor compatible with Arduino® Rev3 pin layout

Software and support application development

    null

Buy Options

FRDM-K32L2A4S-Image

Click to expand

  • FRDM-K32L2A4S
    Active

  • NXP Freedom Platform for K32 L2A MCUs.

  • Kit Contains:

    • FRDM-K32L2A4S hardware
    • USB cable
  • $34.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 7
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
