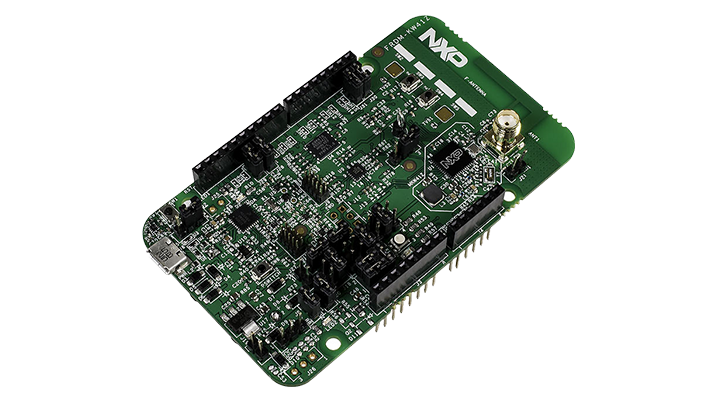

Freedom Development Kit for Kinetis® KW41Z/31Z/21Z MCUs

FRDM-KW41Z Active

Roll over image to zoom in

Note: K32W061/41 is preferred for any new Zigbee®, Thread and Bluetooth® LE 5.0 design. No new software releases planned

The FRDM-KW41Z is a development kit enabled by the Kinetis® W series KW41Z/31Z/21Z (KW41Z) family built on Arm® Cortex®-M0+ processor with integrated 2.4 GHz transceiver supporting Bluetooth® Smart/Bluetooth®Low Energy (BLE) v4.2, Generic FSK, IEEE® 802.15.4 and Thread.

The FRDM-KW41Z kit contains two Freedom boards that can be used as a development board or a shield to connect to a host processor. The FRDM-KW41Z is form-factor compatible with the Arduino® Rev3 pin layout for more expansion options.

The FRDM-KW41Z highly-sensitive, optimized 2.4 GHz radio features a PCB F-antenna which can be bypassed to test via SMA connection, multiple power supply options, push/capacitive touch buttons, switches, LEDs and integrated sensors.

The FRDM-KW41Z platform is now supported by Arm® Mbed™ OS and Zephyr®OS, both open source embedded operating systems for developing the Internet of Things.

Supported Devices

Wireless Connectivity

Zigbee

  • KW21Z: Kinetis® KW21Z-2.4 GHz 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core

Multiprotocol MCUs

  • KW41Z: Kinetis® KW41Z-2.4 GHz Dual Mode: Bluetooth® Low Energy and 802.15.4 Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core

Bluetooth Low Energy

  • KW31Z: Kinetis® KW31Z-2.4 GHz Bluetooth Low Energy Wireless Radio Microcontroller (MCU) based on Arm® Cortex®-M0+ Core

Features

  • Can be configured as Host or Shield for connection to Host Processor

Connectivity

  • SMA RF Connector

Sensors

  • Onboard NXP FXOS8700CQ digital sensor, 3D Accelerometer (±2g/±4g/±8g) + 3D Magnetometer

Debug

  • OpenSDA and JTAG debug

Support

  • Full KSDK support
  • Supported by Zephyr® OS
  • Supports all DC-DC configurations (Buck, Boost, Bypass)
  • PCB inverted F-type antenna
  • RF regulatory certified
  • Serial Flash for OTA firmware upgrades
  • Arm® Mbed™ enabled

Buy Options

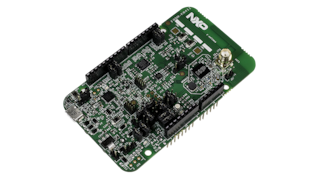

FRDM-KW41Z-Image

Click to expand

  • FRDM-KW41Z
    Active

  • Part Description: Freedom Development Boards for Kinetis KW21Z, KW31Z and KW41Z MCUs. 2 boards per order..

    • 2 FRDM-KW41Z Freedom Development Boards
    • Quick Reference Card
    • 2 USB Cables
  • $166.75 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
