Development Board for MC56F83xxx Digital Signal Controllers

MC56F83000-EVK

Roll over image to zoom in

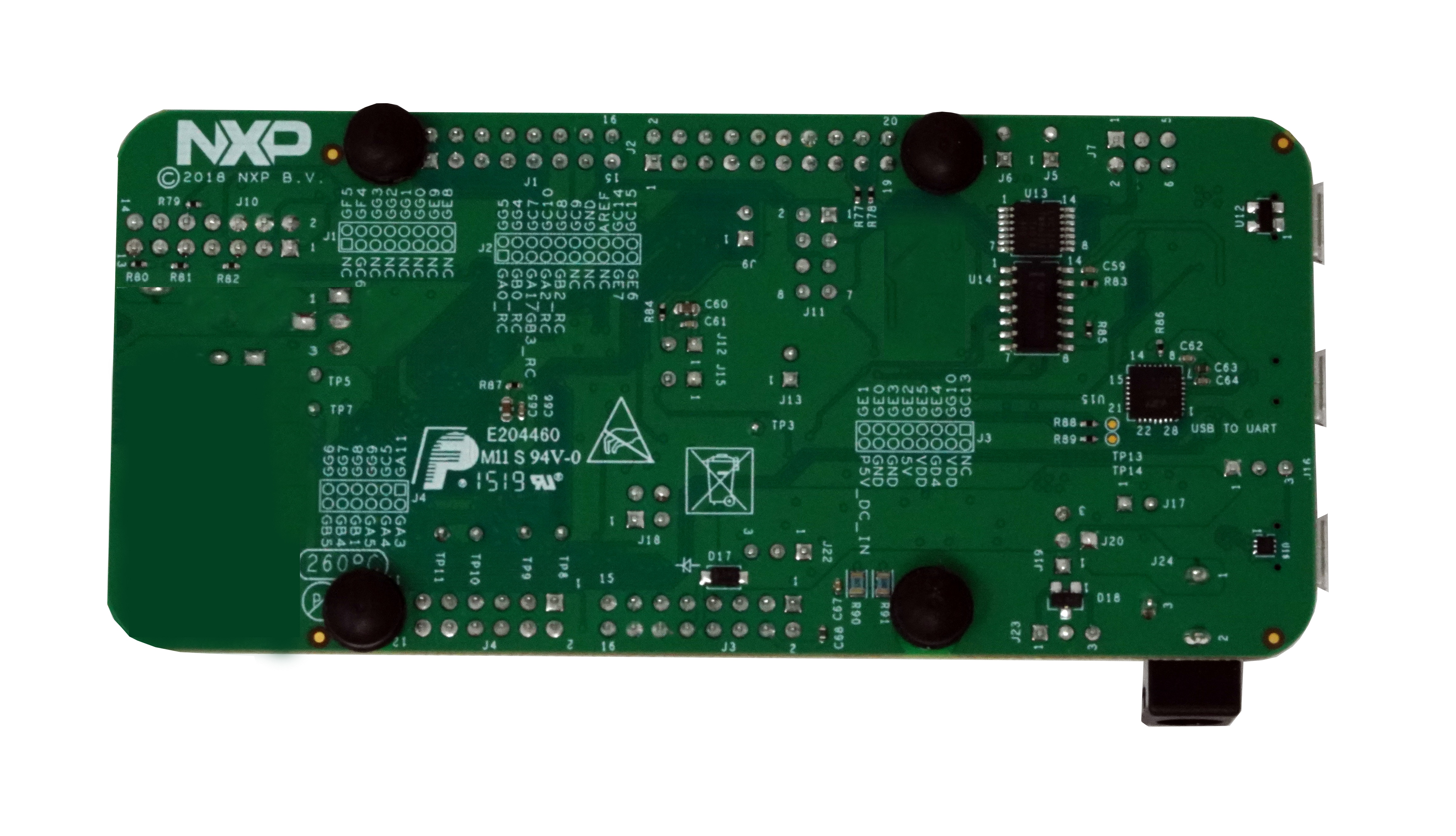

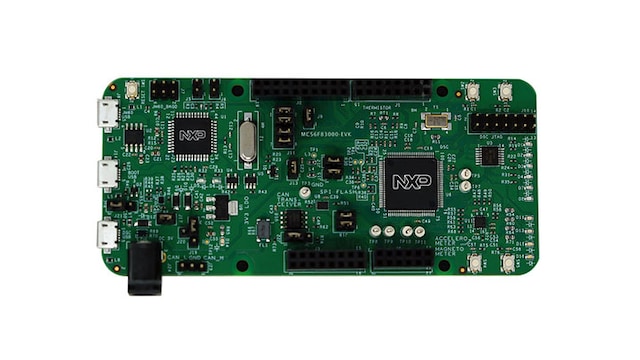

The MC56F83000-EVK is an ultra-low-cost development platform for digital signal controller MC56F83xxx MCU.

The kit is form-factor compatible with the Arduino™ R3 pin layout and features ROM bootloader supporting SCI, IIC and CAN.

Peripherals enable rapid prototyping, including a 6-axis digital accelerometer and magnetometer to create full eCompass capabilities, 6 buffered LEDs indicating PWM signals, 4 user LEDs, 4 user push-buttons for direct interaction, an SPI interfaced Flash memory, a high speed CAN transceiver circuit, a USBOTG connector and a USB to UART bridge circuit.

The MC56F83000-EVK features onboard OSBDM circuit enabling debugging and programming with CodeWarrior.

Product Details

Block Diagram

Choose a diagram:

MC56F83000-EVK Call Out

MC56F83000-EVK Call Out

MC56F83000-EVK Pin Out

MC56F83000-EVK Pin Out
Get diagram PDF

Features

Microcontroller

    MC56F83789

  • DSP56800Ex core @100 MHz
  • 2 x 128 kB dual partition flash with ECC protection and partition swap function. 64 kB data/program RAM
  • 2 x 12-bit ADCs
  • 2 x eFlexPWM up to 16 PWM channels with full functions and ultra-high resolution, which is optimized for motor and power conversion control
  • 2 x QuadTimer up to 8 timers of large flexibility, with quadrature decoder feature
  • 2 x 12-bit DACs
  • 4 x Comparators
  • Crossbar
  • Crystal-less USB
  • 100 LQFP

Power Management

    Flexible power supply option:

  • OSBDM USB
  • DSC MC56F83789 USB
  • Virtual serial port USB
  • External 5 V adapter
  • External 5 V from Arduino connector

Connectivity

  • USB interface with micro-AB USB connector
  • Virtual serial port
  • CAN
  • Easy access to MCU input/output through Arduino™ R3 compatible I/O connectors

Sensors

  • FXOS8700CQ accelerometer and magnetometer

Debug

  • Programmable on-board OSBDM circuit that supports programming and debugging with CodeWarrior
  • 14-pin JTAG port to connect with standalone programmer

Support

  • Eclipse IDE - CodeWarrior for MCUs
  • Quick Start tool – A graphic tool to configure peripherals and provide stationeries within CodeWarrior

More

Buy Options

MC56F83000-EVK-Image

Click to expand

  • MC56F83000-EVK
    Active

  • Development Board for MC56F83xxx Digital Signal Controllers.

  • $49.99 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
