S08P MCUs Evaluation Kit

S08PT60-EVK

Roll over image to zoom in

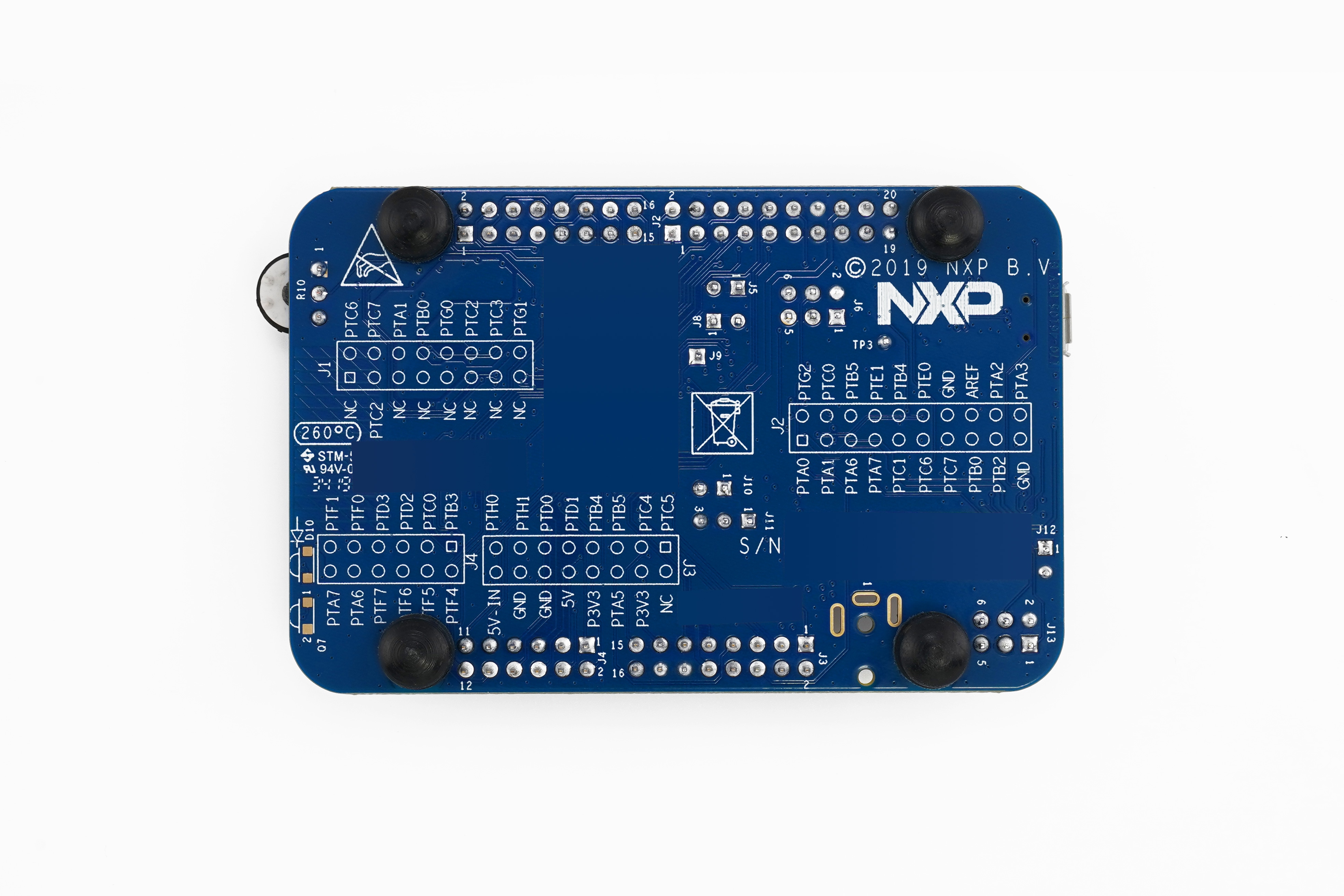

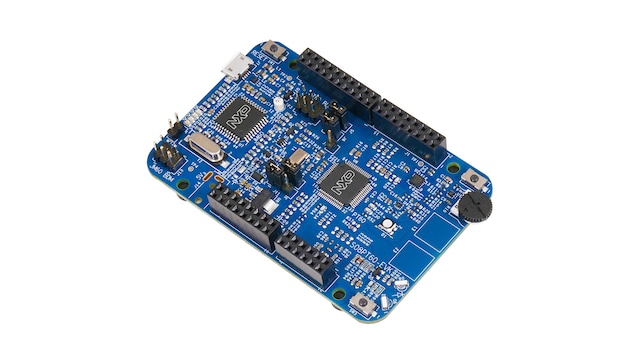

The S08PT60-EVK is cost-effective development hardware for the NXP S08P 5V 8-bit MCUs.

  • S08PT60-EVK is powerful, with rich integrated peripherals to evaluate all features of S08P MCUs. The onboard interfaces include an RGB LED, a 6-axis digital accelerometer and magnetometer, an ambient temperature sensor, two capacitive touch pads, a potentiometer, two user push-buttons, and IRDA transceiver.
  • S08PT60-EVK supports OSBDM to flash program and run-control debug without an external debug tool.

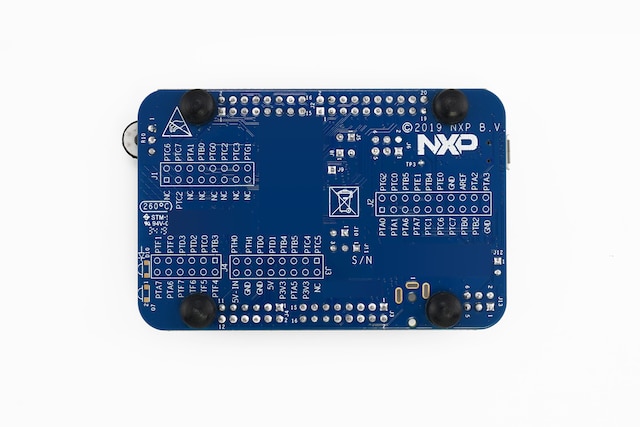

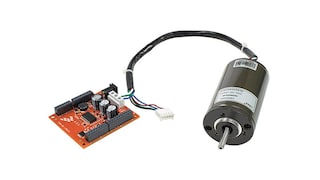

  • S08PT60-EVK is compatible with the Arduino® pin layout, providing a broad range of expansion board options, including FRDM-MC-LVBLDC for motor control.
  • Provide free sample code for users’ reference.

Block Diagram

Choose a diagram:

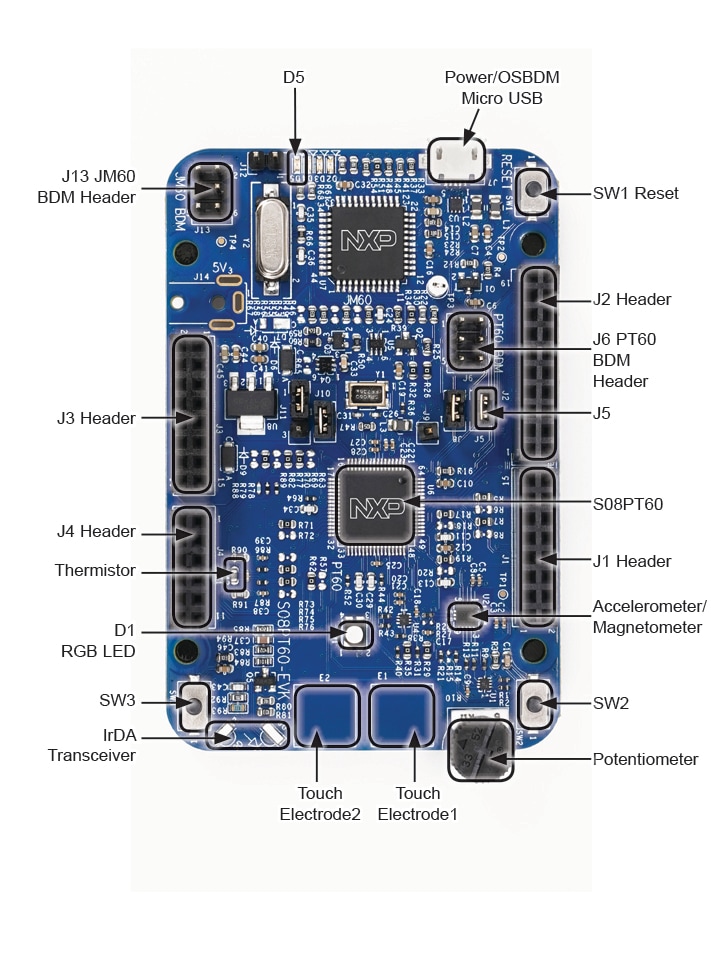

S08PT60-EVK CALLOUT

S08PT60-EVK CALLOUT

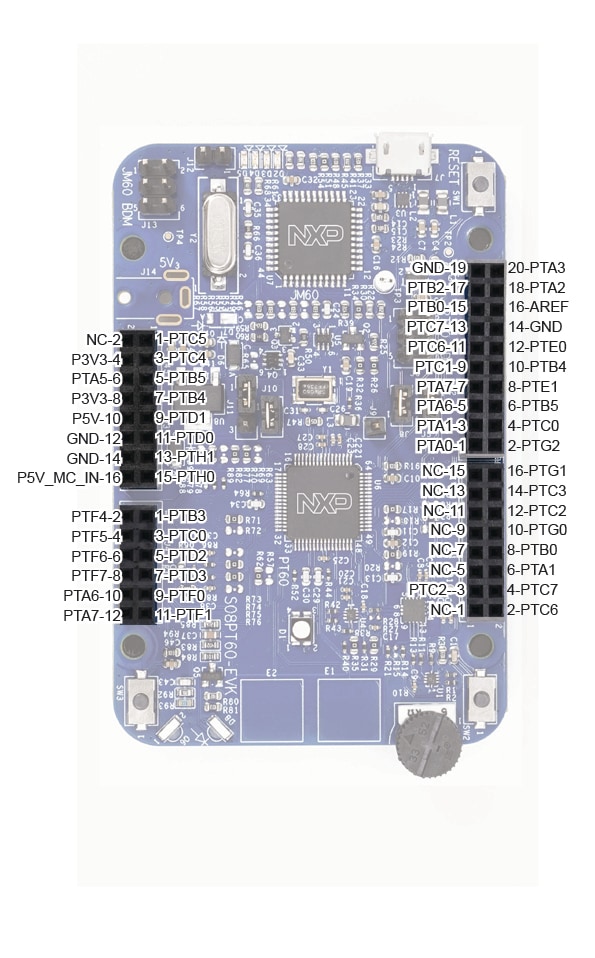

S08PT60-EVK PINOUT

S08PT60-EVK PINOUT
Get diagram PDF

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08PL: 8-bit 5V Cost-effective MCU with EEPROM
  • S08PT: 8-bit 5V Full-featured MCU with EEPROM and TSI
  • S08PA: 8-bit 5V Full-featured MCU with EEPROM

Features

Microcontroller

  • 60 KB flash memory, 4 KB RAM, 256 B EEPROM
  • 2.7 V to 5.5 V
  • -40 to 105 °C
  • 64 Low profile Quad Flat Package (LQFP)

Connectivity

  • USB interface with micro-B USB connector
  • Arduino® interface

Sensors

  • FXOS8700CQ accelerometer and magnetometer
  • Temperature sensor

Components

  • RGB LED
  • Potentiometer
  • Two capacitive touch pads
  • Two user push-buttons
  • IrDA Transceiver

Buy Options

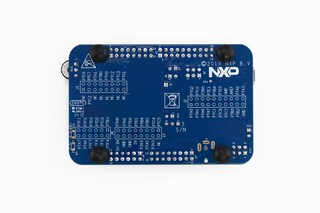

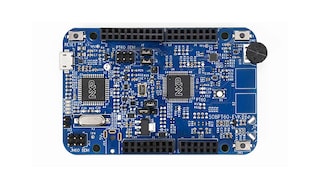

S08PT60-EVK-Image

Click to expand

  • $27.59 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
