8-bit 5V MCU with Streamlined Features
The S08PLS MCUs integrate key features like 10-bit ADC, Analog comparator, and flexible timers to simplify design and to help reduce system cost.
The S08P family is simple, yet powerful, and offers EFT/ESD performance. This scalable and pin-compatible MCU family reuses existing S08 core, IP and tools for easy migration from existing 8-bit S08 products. Our 5V 8-bit S08P MCU family gives your designs more durability and reliability in harsh industrial and user interface environments, meeting appliance safety standard IEC60730.
Product Details
Features
Memory Combination
- Provide 16KB and 8KB Flash option
- 1KB SRAM
Robust GPIO
- Up to 18 GPIO with filtering in 20-pin

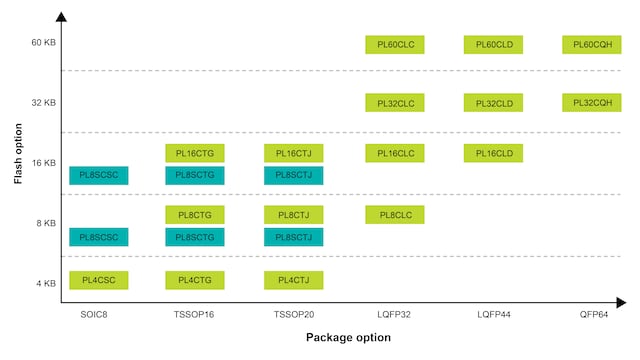

- Pin-to-pin compatible with S08P family
12-ch., 10-bit SAR ADC
- Linear successive approximation algorithm with up to 10-bit resolution
- Up to 12-ch. single-ended external analog inputs
- 10-bit, and 8-bit modes, eight-deep result FIFO
- Single or continuous conversion (automatic return to idle after single conversion)
Feature-Rich Integration
- 6-ch. + 2-ch. FlexTimer + 1 x MTIM
- Real-time counter (RTC)
- 1 x SCI (UART)
- 1 x Analog Comparator
- Enhanced watchdog and programmable CRC
- High accuracy internal clock
Working Condition
- -40 to 85C° ambient temperature
- Support supply range 2.7 to 5.5 V
