Touch-Sensing Software
NOTE: This software is no longer recommended for new designs. Please refer to the new NXP Touch Software for the latest software products designed specifically for applications utilizing touch sensing.
NXP® Touch software is designed to speed development of your touch applications and is ideal for use with Kinetis® MCUs. Available as a source code, this software download features touch detection algorithms and is ideally suited for RTOS based applications. NXP Touch software employs a modular architecture with a variety of touch centric controls, modules, and electrode data objects, enabling integrated and customizable features.
Software Details

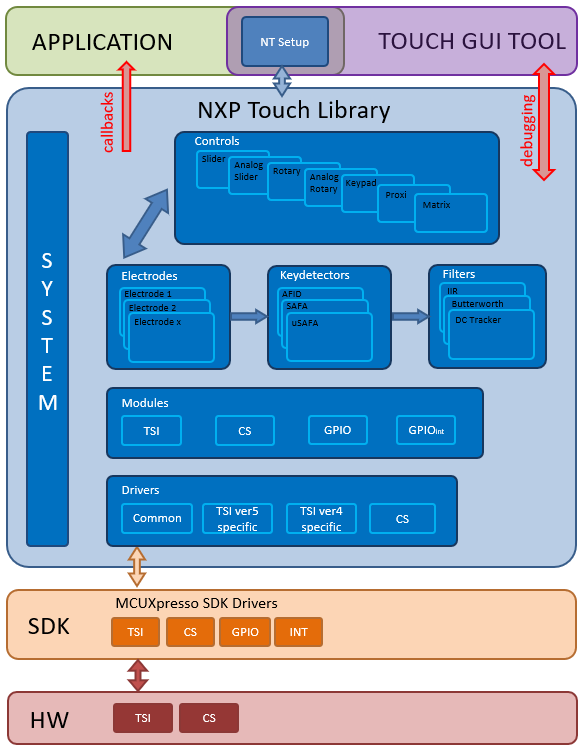

Diagram
Choose a diagram:
Features
- Available as source code
- Based on MCUXpresso SDK
- Released as MCUXpresso middleware
- Ideally suited for RTOS based applications

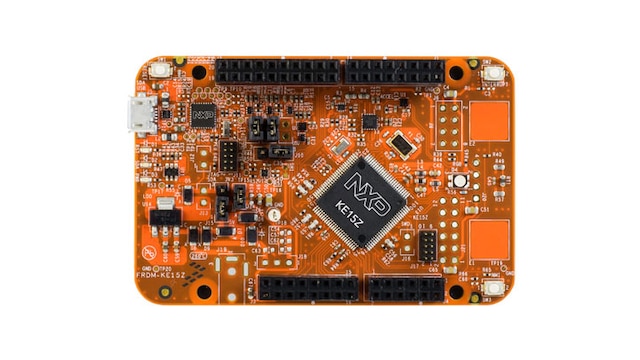

- Fully supports the NXP® touch sensing interface (TSI) peripheral available on many Kinetis KE15Z MCUs
- Abstracted decoder controls, such as rotary, slider, keypad, analog rotary, analog slider
- Proximity and shielding electrodes
- Advanced filtering and integrating detection (AFID) or Signal Adaptive Filtering Algorithm (SAFA) keydetectors
- Water tolerance
- Sensitivity auto-tuning function
- FreeMASTER GUI Tools
Supported Devices

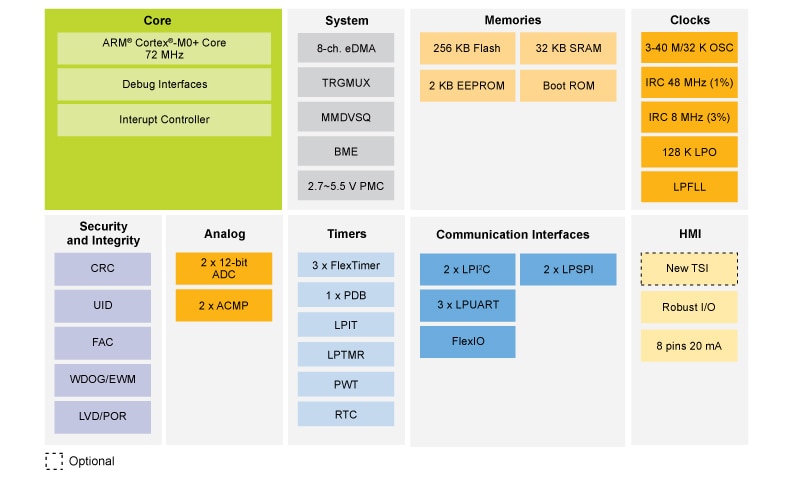

- KE1xZ: KE1xZ: Arm® Cortex®-M0+ 5V Main Stream MCU with NXP Touch and CAN Control
Benefits
- Touch added to one-chip solution to reduce overall system cost and size
- Improved touch detection algorithm for reduced false touches under electrical noise
- Enables over 1,000 NXP 8-bit and 32-bit MCUs as touch sensors, including ColdFire+ and Kinetis MCUs
- Free license software with cost-effective development tools
- Enhances reliability by eliminating mechanical wear and tear
- Increases product longevity
Downloads
Quick reference to our software types.
1 download
-
HMI Design Software
Touch Sensing Software Suite installer Version 3.1.0
Note: For better experience, software downloads are recommended on desktop.
Documentation
Quick reference to our documentation types.
1-5 of 24 documents
-
User Guide
Touch Sensing Software - Users GuideFeatured
-
Reference Manual
Touch Sensing Software API Reference Manual - Reference manualFeatured
-
Application Note
AN3863, Designing Touch Sensing Electrodes - Application NotesFeatured
-
Fact Sheet
NXP Touch-Sensing Software - Fact SheetFeatured
