Touch-Sensing Software Evaluation Board

TSSEVB Active

Roll over image to zoom in

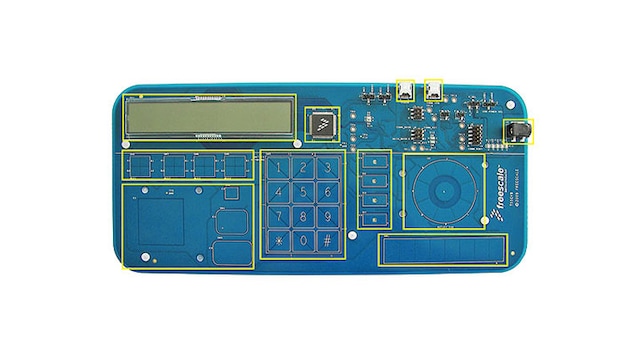

The Touch-Sensing Software evaluation board (TSSEVB) contains everything you need to get started with a touch-sensing application. The touch-sensing software library enables capacitive sensing for the entire NXP® S08 MCU portfolio, providing touch sense decoding structures such as keypad, rotary and slider.

Product Details

Features

Microcontroller

  • S08LG32 MCU

Connectivity

  • Serial to USB converter
  • BDM on board

Power Management

  • Powered over USB or external power supply

User Components

  • Backlight LED on electrodes
  • LCD glass and buzzer
  • Rotary, Slider, Keypad, Multiplexed electrodes and Matrix

Tools and OS Support

    Demo applications included
  • GUI communication
  • Different thickness overlays

Buy Options

TSSEVB-Image

Click to expand

  • TSSEVB
    Active

  • Touch Sensing Software EVB.

    • TSSEVB board
    • USB cable
    • Two different material overlays
    • Getting Started DVD
      • TSS installer
      • Demo application files
      • Technical documentation
      • Electrode graphic tool
    • TSSEVB Quick Start Guide
    • Warranty page
  • For a quantity of 1
Order from distributors
N true 0 TSPTSSEVBen 10 Application Note Application Note t789 2 Application Note Software Application Note Software t783 1 User Guide User Guide t792 7 en_US en_US 7 1 6 English Please also download the TSSEGTUGAD Addendum.
This guide provides a detailed hardware description of the Touch Sensing Software Evaluation Board (TSSEVB). The TSSEVB provides all the necessary components to evaluate and use the Touch Sensing Software. 1249420063086705240730 TSP 1.2 MB None None documents Y None 1249420063086705240730 /docs/en/user-guide/TSSEVBUG.pdf 1201806 /docs/en/user-guide/TSSEVBUG.pdf TSSEVBUG N 2009-09-18 Touch Sensing Software Evaluation Board Users Guide /docs/en/user-guide/TSSEVBUG.pdf /docs/en/user-guide/TSSEVBUG.pdf User Guide N 132339537837198660 2023-06-18 pdf en Aug 20, 2010 User Guide t792 User Guide User Guide Y N Touch Sensing Software Evaluation Board Users Guide 2 1 English This is Errata for the Electrode Graphing Tool , Evaluation Board, and the Suite Installer. 1267829358858731151172 TSP 96.6 KB None None documents Y None 1267829358858731151172 /docs/en/user-guide/TSSEGTUGAD.pdf 96615 /docs/en/user-guide/TSSEGTUGAD.pdf TSSEGTUGAD N N 2016-10-31 Electrode Graphing Tool IIC Driver Errata -- Addendum for the TSSEGTUG, TSSEVBUG, and TSSSW /docs/en/user-guide/TSSEGTUGAD.pdf /docs/en/user-guide/TSSEGTUGAD.pdf User Guide N 132339537837198660 2024-02-13 pdf N en Mar 5, 2010 User Guide t792 User Guide User Guide Y N Electrode Graphing Tool IIC Driver Errata -- Addendum for the TSSEGTUG, TSSEVBUG, and TSSSW 3 0 English 1253282349566724299620 TSP 216.9 KB None None documents Y None 1253282349566724299620 /docs/en/user-guide/TSS_QSG_v7.pdf 216931 /docs/en/user-guide/TSS_QSG_v7.pdf TSS_QSG_V7 N 2009-09-18 Quick Selection Guide /docs/en/user-guide/TSS_QSG_v7.pdf /docs/en/user-guide/TSS_QSG_v7.pdf User Guide N 132339537837198660 2023-06-18 pdf en Sep 18, 2009 User Guide t792 User Guide User Guide N N Quick Selection Guide 4 6 English The Touch Sensing Software (TSS) solution transforms a standard MCU into a proximity capacitive touch sensor controller. 1249402330739737421373 TSP 2.9 MB None None documents Y None 1249402330739737421373 /docs/en/user-guide/TSSUG.pdf 2895861 /docs/en/user-guide/TSSUG.pdf TSSUG N N 2016-10-31 Touch Sensing Software - Users Guide /docs/en/user-guide/TSSUG.pdf /docs/en/user-guide/TSSUG.pdf User Guide N 132339537837198660 2024-02-13 pdf N en Aug 23, 2012 User Guide t792 User Guide User Guide Y N Touch Sensing Software - Users Guide 5 2 English 1253548394496709686815 TSP 720.9 KB None None documents Y None 1253548394496709686815 /docs/en/user-guide/TSSEVBQSG.pdf 720872 /docs/en/user-guide/TSSEVBQSG.pdf TSSEVBQSG N 2009-09-21 Touch Sensing Software Evaluation Board Quick Start Guide /docs/en/user-guide/TSSEVBQSG.pdf /docs/en/user-guide/TSSEVBQSG.pdf User Guide N 132339537837198660 2023-06-18 pdf en Aug 20, 2010 User Guide t792 User Guide User Guide Y N Touch Sensing Software Evaluation Board Quick Start Guide 6 1 English 1258151364457682519967 TSP 826.9 KB None None documents Y None 1258151364457682519967 /docs/en/user-guide/TSSEVBAPPUG.pdf 826908 /docs/en/user-guide/TSSEVBAPPUG.pdf TSSEVBAPPUG N 2009-11-13 TSSEVB Demo Application Guide /docs/en/user-guide/TSSEVBAPPUG.pdf /docs/en/user-guide/TSSEVBAPPUG.pdf User Guide N 132339537837198660 2023-06-18 pdf en Aug 20, 2010 User Guide t792 User Guide User Guide Y N TSSEVB Demo Application Guide 7 1 English Please also download the TSSEGTUGAD Addendum. This guide describes how to use the Touch Sensing Software Electrode Graphing Tool (TSSEGT). The
TSSEGT allows you to visualize the capacitance variance of electrodes when it is used along with the Touch Sensing Software (TSS). 1249402326630711440609 TSP 1.1 MB None None documents Y None 1249402326630711440609 /docs/en/user-guide/TSSEGTUG.pdf 1104897 /docs/en/user-guide/TSSEGTUG.pdf TSSEGTUG N N 2016-10-31 Touch Sensing Software Electrode Graphing Tool Users Guide /docs/en/user-guide/TSSEGTUG.pdf /docs/en/user-guide/TSSEGTUG.pdf User Guide N 132339537837198660 2024-02-13 pdf N en Jul 30, 2009 User Guide t792 User Guide User Guide Y N Touch Sensing Software Electrode Graphing Tool Users Guide false en Application Note Application Note 2 8 4 English AN3863: This document presents a set of guidelines for layout and placement of touch sensing circuits using NXP capacitive touch sensing technology. Touch sensing solutions, like touch panels, touch screens, and capacitive keypads are increasingly becoming a substitute for mechanical buttons or membrane keyboards. They are used in a wide range of applications from consumer products like computers, appliances, and industrial equipment. 1253296539549704444145 TSP 804.9 KB None None documents None 1253296539549704444145 /docs/en/application-note/AN3863.pdf 804915 /docs/en/application-note/AN3863.pdf AN3863 documents N N 2016-10-31 AN3863, Designing Touch Sensing Electrodes - Application Notes /docs/en/application-note/AN3863.pdf /docs/en/application-note/AN3863.pdf Application Note N 645036621402383989 2024-02-13 pdf N en Jul 20, 2011 645036621402383989 Application Note Y N AN3863, Designing Touch Sensing Electrodes - Application Notes 9 0 English AN3934: This application note shows you, how in fourteen steps, to write your first touch sensing application ("from scratch") using the Touch Sensing Software (TSS) Library. Although this application note uses the NXP TSSEVB, the same procedure can be used to create touch controls using virtually any NXP 8-bit MCU. The hardware used is the NXP TSS evaluation board. 1250693713820716681348 TSP 779.8 KB None None documents None 1250693713820716681348 /docs/en/application-note/AN3934.pdf 779751 /docs/en/application-note/AN3934.pdf AN3934 documents N N 2016-10-31 AN3934, How to Implement a Human Machine Interface Using the Touch Sensing Software Library - Application Notes /docs/en/application-note/AN3934.pdf /docs/en/application-note/AN3934.pdf Application Note N 645036621402383989 2024-02-13 pdf N en Oct 9, 2009 645036621402383989 Application Note Y N AN3934, How to Implement a Human Machine Interface Using the Touch Sensing Software Library - Application Notes Application Note Software Application Note Software 1 10 0 English This application note shows you, how in fourteen steps, to write your first touch sensing application (“from scratch”) using the Touch Sensing Software (TSS) Library. After configuring, touching a sensor turns on a LED. In addition, you will be able to turn on a virtual LED from within the CodeWarrior debugger. 1255116688009727407878 TSP 178.5 KB None None documents None 1255116688009727407878 /docs/en/application-note-software/AN3934SW.zip 178486 /docs/en/application-note-software/AN3934SW.zip AN3934SW documents N 2009-10-09 Software to accompany application note AN3934 /docs/en/application-note-software/AN3934SW.zip /docs/en/application-note-software/AN3934SW.zip Application Note Software N 789425793691620447 2022-12-07 zip en Oct 9, 2009 789425793691620447 Application Note Software D N Software to accompany application note AN3934 false 0 TSSEVB downloads en true 0 Y TSP Application Note 2 /docs/en/application-note/AN3863.pdf 2016-10-31 1253296539549704444145 TSP 8 Jul 20, 2011 Application Note AN3863: This document presents a set of guidelines for layout and placement of touch sensing circuits using NXP capacitive touch sensing technology. Touch sensing solutions, like touch panels, touch screens, and capacitive keypads are increasingly becoming a substitute for mechanical buttons or membrane keyboards. They are used in a wide range of applications from consumer products like computers, appliances, and industrial equipment. None /docs/en/application-note/AN3863.pdf English documents 804915 None 645036621402383989 2024-02-13 N /docs/en/application-note/AN3863.pdf AN3863, Designing Touch Sensing Electrodes - Application Notes /docs/en/application-note/AN3863.pdf documents 645036621402383989 Application Note N en None Y pdf 4 N N AN3863, Designing Touch Sensing Electrodes - Application Notes 804.9 KB AN3863 N 1253296539549704444145 /docs/en/application-note/AN3934.pdf 2016-10-31 1250693713820716681348 TSP 9 Oct 9, 2009 Application Note AN3934: This application note shows you, how in fourteen steps, to write your first touch sensing application ("from scratch") using the Touch Sensing Software (TSS) Library. Although this application note uses the NXP TSSEVB, the same procedure can be used to create touch controls using virtually any NXP 8-bit MCU. The hardware used is the NXP TSS evaluation board. None /docs/en/application-note/AN3934.pdf English documents 779751 None 645036621402383989 2024-02-13 N /docs/en/application-note/AN3934.pdf AN3934, How to Implement a Human Machine Interface Using the Touch Sensing Software Library - Application Notes /docs/en/application-note/AN3934.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN3934, How to Implement a Human Machine Interface Using the Touch Sensing Software Library - Application Notes 779.8 KB AN3934 N 1250693713820716681348 Application Note Software 1 /docs/en/application-note-software/AN3934SW.zip 2009-10-09 1255116688009727407878 TSP 10 Oct 9, 2009 Application Note Software This application note shows you, how in fourteen steps, to write your first touch sensing application (“from scratch”) using the Touch Sensing Software (TSS) Library. After configuring, touching a sensor turns on a LED. In addition, you will be able to turn on a virtual LED from within the CodeWarrior debugger. None /docs/en/application-note-software/AN3934SW.zip English documents 178486 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN3934SW.zip Software to accompany application note AN3934 /docs/en/application-note-software/AN3934SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N Software to accompany application note AN3934 178.5 KB AN3934SW N 1255116688009727407878 User Guide 7 /docs/en/user-guide/TSSEVBUG.pdf 2009-09-18 1249420063086705240730 TSP 1 Aug 20, 2010 User Guide User Guide Please also download the TSSEGTUGAD Addendum.
This guide provides a detailed hardware description of the Touch Sensing Software Evaluation Board (TSSEVB). The TSSEVB provides all the necessary components to evaluate and use the Touch Sensing Software. Y None /docs/en/user-guide/TSSEVBUG.pdf English 1201806 None User Guide 2023-06-18 /docs/en/user-guide/TSSEVBUG.pdf Touch Sensing Software Evaluation Board Users Guide /docs/en/user-guide/TSSEVBUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 6 N Touch Sensing Software Evaluation Board Users Guide 1.2 MB TSSEVBUG N 1249420063086705240730 /docs/en/user-guide/TSSEGTUGAD.pdf 2016-10-31 1267829358858731151172 TSP 2 Mar 5, 2010 User Guide User Guide This is Errata for the Electrode Graphing Tool , Evaluation Board, and the Suite Installer. Y None /docs/en/user-guide/TSSEGTUGAD.pdf English 96615 None User Guide 2024-02-13 N /docs/en/user-guide/TSSEGTUGAD.pdf Electrode Graphing Tool IIC Driver Errata -- Addendum for the TSSEGTUG, TSSEVBUG, and TSSSW /docs/en/user-guide/TSSEGTUGAD.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 1 N N Electrode Graphing Tool IIC Driver Errata -- Addendum for the TSSEGTUG, TSSEVBUG, and TSSSW 96.6 KB TSSEGTUGAD N 1267829358858731151172 /docs/en/user-guide/TSS_QSG_v7.pdf 2009-09-18 1253282349566724299620 TSP 3 Sep 18, 2009 User Guide User Guide Y None /docs/en/user-guide/TSS_QSG_v7.pdf English 216931 None User Guide 2023-06-18 /docs/en/user-guide/TSS_QSG_v7.pdf Quick Selection Guide /docs/en/user-guide/TSS_QSG_v7.pdf documents 132339537837198660 User Guide N en None N t792 pdf 0 N Quick Selection Guide 216.9 KB TSS_QSG_V7 N 1253282349566724299620 /docs/en/user-guide/TSSUG.pdf 2016-10-31 1249402330739737421373 TSP 4 Aug 23, 2012 User Guide User Guide The Touch Sensing Software (TSS) solution transforms a standard MCU into a proximity capacitive touch sensor controller. Y None /docs/en/user-guide/TSSUG.pdf English 2895861 None User Guide 2024-02-13 N /docs/en/user-guide/TSSUG.pdf Touch Sensing Software - Users Guide /docs/en/user-guide/TSSUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 6 N N Touch Sensing Software - Users Guide 2.9 MB TSSUG N 1249402330739737421373 /docs/en/user-guide/TSSEVBQSG.pdf 2009-09-21 1253548394496709686815 TSP 5 Aug 20, 2010 User Guide User Guide Y None /docs/en/user-guide/TSSEVBQSG.pdf English 720872 None User Guide 2023-06-18 /docs/en/user-guide/TSSEVBQSG.pdf Touch Sensing Software Evaluation Board Quick Start Guide /docs/en/user-guide/TSSEVBQSG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 2 N Touch Sensing Software Evaluation Board Quick Start Guide 720.9 KB TSSEVBQSG N 1253548394496709686815 /docs/en/user-guide/TSSEVBAPPUG.pdf 2009-11-13 1258151364457682519967 TSP 6 Aug 20, 2010 User Guide User Guide Y None /docs/en/user-guide/TSSEVBAPPUG.pdf English 826908 None User Guide 2023-06-18 /docs/en/user-guide/TSSEVBAPPUG.pdf TSSEVB Demo Application Guide /docs/en/user-guide/TSSEVBAPPUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 1 N TSSEVB Demo Application Guide 826.9 KB TSSEVBAPPUG N 1258151364457682519967 /docs/en/user-guide/TSSEGTUG.pdf 2016-10-31 1249402326630711440609 TSP 7 Jul 30, 2009 User Guide User Guide Please also download the TSSEGTUGAD Addendum. This guide describes how to use the Touch Sensing Software Electrode Graphing Tool (TSSEGT). The
