8-bit Flexis USB MM128/64/32 MCUs
The 9S08MM128/64/32 provides USB connectivity, graphic display support and unparalleled measurement accuracy, all in a single 8-bit microcontroller, allowing device designers to create more fully featured products at a lower cost.
The 9S08MM128/64/32 is ideal for medical applications or other applications requiring a significant amount of precision analog such as instrumentation and industrial control. The 9S08MM128/64/32 is part of Our Flexis microcontroller series.
Product Details

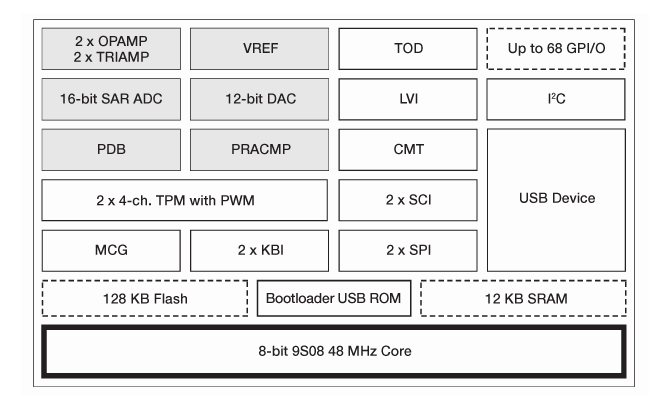

Block Diagram
Features
CPU and System Configuration
- 8-bit 9S08 CPU operating at 48 MHz
- 1.8V to 3.6V single supply
On-Chip Memory
- Up to 128 KB flash
- Up to 12 KB SRAM
Power Management
- Low-power operation modes
Precision Analog Peripherals
- 16-bit ADC
- 12-bit DAC
- Programmable delay block
- Operational and trans-impedance amplifiers
- VREF (voltage reference)
Communication Peripherals
- USB 2.0 controller
- Dual asynchronous SCIs
- Inter IC-BUS (I²C)
- Dual Synchronous SPI
- 1 x 16-bit FIFO SPI
Software and Tools
- Background debug mode (BDM) for in-circuit debugging
- Medical applications USB stack
- Tower® development system
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 29 documents
-
Data Sheet
MC9S08MM128 Series - Data SheetFeatured
-
Reference Manual
MC9S08MM128 - Reference ManualFeatured
-
Application Note
AN2295: Developer's Serial Bootloader – Application Note
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 7 hardware offerings
-
Emulators, Probes, and ProgrammersUniversal Multilink Development InterfaceFeatured
-

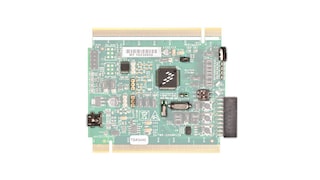

Evaluation and Development BoardsColdFire MCF51MM Medical Development Tower System ModuleFeatured
-
