8-bit Cost-Effective with CAN D MCUs

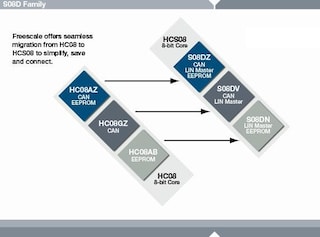

We have developed the industry's first 8-bit microcontroller family with embedded CAN, embedded EEPROM and on-chip emulation/debug for the automotive and industrial markets. The S08D family offers designers scalability and flexibility of migration with pin, peripheral and tool compatibility between S08D family devices.
This highly integrated next generation family of MCUs is packed with features designed to provide increased performance, as well as save power, development time, board space and cost.
Product Details
Features
S08 CPU
- 40 MHz core speed, 20 MHz bus speed on S08 CPU
- HC08 instruction set with added BGND instruction
On-Chip Memory
- Up to 128 KB flash read/program/erase over full operating voltage and temperature
- Up to 2 KB EEPROM in-circuit programmable memory; 8-byte single-page or 4-byte dualpage erase sector; program and erase while executing flash; erase abort
- Up to 8 KB RAM (16:1 flash/RAM, ratio better than competition)
Power Saving Modes
- Two very low-power stop modes
- Very low-power, real-time interrupt for use in run, wait and stop modes
Clock Source Options
- Oscillator (XOSC)—Loop-control Pierce oscillator; crystal or ceramic resonator range of 31.25 kHz–38.4 kHz or 1 MHz–16 MHz
- Multi-purpose clock generator (MCG)–PLL and FLL modes; internal reference clock with trim adjustment; external reference with oscillator/resonator options
System Protection
- Watchdog computer operating properly (COP) reset with option to run from dedicated 1 kHz internal clock source or bus clock
- Low-voltage detection with reset or interrupt; selectable trip points
- Illegal opcode detection with reset
- Illegal address detection with reset
- Flash block protect
- EEPROM block protect
Peripherals
- ACMPx—Analog comparators with selectable interrupt on rising, falling or either edge of comparator output; compare option to fixed internal bandgap reference voltage
- MSCAN—CAN protocol—Version 2.0 A, B; standard and extended data frames; support for remote frames; five receive buffers with FIFO storage scheme; flexible identifier acceptance filters programmable as: 2 x 32-bit, 4 x 16-bit, or 8 x 8-bit
- SCIx—SCI(s) with LIN 2.0 Protocol and SAE J2602 compliance; leader extended break generation; follower extended break detection; LIN follower supplement on SCI1; automatic baud rate correction; message time-out detection
- SPI—Full-duplex or single-wire bi-directional; double-buffered transmit and receive; leader or follower mode; MSB-first or LSB-first shifting
- I²C—Up to 100 kbps with maximum bus loading; multi-controller operation; programmable target address; interrupt-driven, byte-by-byte data transfer; broadcast mode enabled
- TPMx—One 6-channel (TMP1) and one 2-channel (TPM2); selectable input capture, output compare or buffered edge-aligned PWM on each channel
- RTC (Real-time counter)—8-bit modulus counter with binary or decimal-based prescaler; external clock source for precise time base, time-of-day calendar or task scheduling functions; free running, on-chip, low-power oscilator (1 kHz) for cyclic wake-up without external components
Development Support
- Single-wire background debug (BDM) interface
- On-chip, in-circuit emulation (ICE) with real-time bus capture
Input/Output
- 87 general-purpose I/O pins and one input-only pin
- 32 interrupt pins with selectable polarity on each pin
- Hysteresis and configurable pull-up device on all input pins
- Configurable slew rate and device strength on all output pins
Package Options
- 100 LQFP 14 x 14 mm
- 64-pin low-profile quad flat pack (LQFP)—10 x 10 mm
- 48-pin LQFP—7 x 7 mm
- 32-pin LQFP—7 x 7 mm
Miscellaneous
- EMC performance
- Wide operating voltage range: 2.7V–5.5V
Background Debugging System
- On-chip BDM
Package
- Pin-compatible with SH, QG family
Product Longevity Program
- This product is included in our product longevity program, with assured supply for a minimum of 15 years after launch
Automotive and Industrial CAN Applications
|
Areas of CAN Possibilities |
Specific Applications |
|
Passenger vehicle |
Body
|
|
Factory automation |
Conveyors, production data recording, end-user configurable systems, off-the-shelf plug-and-play capability |
|
Industrial machine control |
Textile machines, printing machines, injection molding machines, or packaging machines |
|
Building automation |
Manage heating, cooling, lighting, air ventilation, doors, alarm system control, sprinkler systems, backstage control systems, studio equipment including audio and video control for railway stations, school building, deep-freezers and refrigerators in some super-markets |
|
Non-industrial equipment |
Communicate data between microscopes and other laboratory equipment, use in boilers and solar power systems, measurement systems such as petrol pump stations |
|
Medical equipment and devices |
Operating room management, X-ray machines, patient beds, hospital control systems with voltage control, indication and control units, multi cube power meters and digital I/O, and visualization software are networked via CAN |
|
Non-industrial control |
Vending machines, automatic teller machines (ATM), gambling machines (e.g. Japanese Patchinko machines), bank terminals, copy machines, printers |
|
Lifts and escalators |
Panels, controller, doors, drives, light barriers, etc. are linked to each other and controlled via CAN |
|
Trucks and busses |
Power-train applications, communication between truck and trailer |
|
Off-highway and off-road vehicles |
Position sensing, add-on sub-systems such as harvester, cranes, etc |
|
Passenger and cargo trains |
Linking the door units or brake controllers, passenger information system connecting inside and outside displays, ticket validation devices, acoustic output devices, passenger counting units and other peripheral sub-systems |
|
Maritime electronics |
Boats, ships and vessels as embedded network |
