8-bit 5V Full-featured MCU with EEPROM

S08PA Active

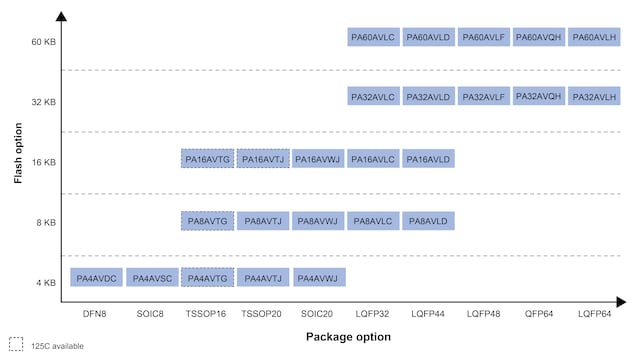

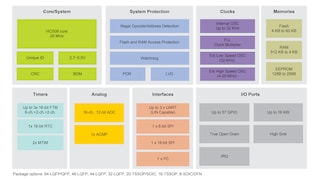

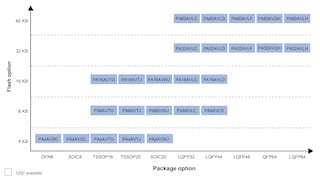

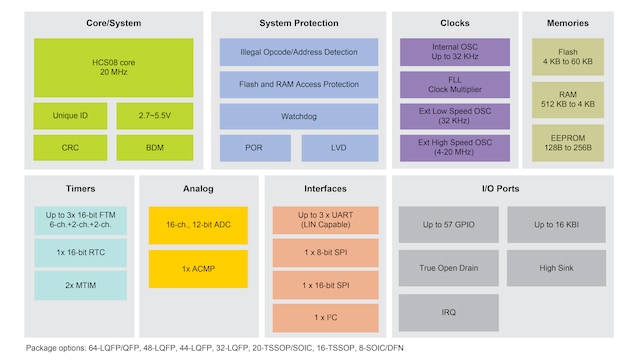

Roll over image to zoom in

The S08PA MCUs integrate key features like EEPROM, ADC, Analog comparator, and a motor control flex timer to simplify design and to help reduce system cost.

The S08P family is simple, yet powerful, and offers excellent EFT/ESD performance. This scalable and pin-compatible MCU family reuses existing S08 core, IP and tools for easy migration from existing 8-bit S08 products. Our 5V 8-bit S08P MCU family gives your designs more durability and reliability in harsh industrial and user interface environments, meeting appliance safety standard IEC60730.

Product Details

Features

Memory Combination

  • Increased flash/RAM ratio (4 KB RAM in PT60)
  • On-chip EEPROM with 500K~1M write/erase cycle

Robust GPIO and High Drive Capability

  • Up to 57 GPIO with filtering in 64-pin
  • Up to eight pins with 20 mA sink drive capability
  • Two pins with true open drain

16-ch., 12-bit SAR ADC

  • Linear successive approximation algorithm with up to 12-bit resolution on PT/PA class, 10-bit on PL class
  • Up to 16-ch. single-ended external analog inputs
  • 12-bit, 10-bit, and 8-bit modes, eight-deep result FIFO
  • Single or continuous conversion (automatic return to idle after single conversion)

Feature-Rich Integration

  • 6-ch. + 2-ch. + 2-ch. FlexTimer: 2 x MTIM
  • Real-time counter
  • 3 x SCI, 2 x SPI, I2C
  • Enhanced watchdog and programmable CRC
  • High accuracy internal clock

Buy/Parametrics

1-10 of 30 results

Include 22 NRND

Part

Show description

Order

CAD Model

Status

Package Type

Package Termination Count

Budgetary Price excluding tax

Flash (kB)

RAM (kB)

Core Type

Operating Frequency [Max] (MHz)

Bus Frequency (typ) (MHz)

I2C

Supply Voltage [min] (V)

Supply Voltage [max] (V)

GPIO

Ambient Operating Temperature (Min to Max) (℃)

SCI

MC9S08PA16AMTG
Data Sheet

Active

TSSOP16

16

10K @ US$0.89

—

—

—

—

—

—

—

—

—

—

—

MC9S08PA16AMTJ
Data Sheet

Active

TSSOP20

20

10K @ US$0.95

16

2

S08

20

20

1

2.7

5.5

18

-40 to 125

1

MC9S08PA16AVLC
Data Sheet

Active

LQFP32

32

10K @ US$0.96

16

2

S08

20

20

1

2.7

5.5

28

-40 to 105

2

MC9S08PA16AVLD
Data Sheet

Active

LQFP44

44

10K @ US$1.01

16

2

S08

20

20

1

2.7

5.5

37

-40 to 105

2

MC9S08PA16AVTG
Data Sheet

Active

TSSOP16

16

10K @ US$0.83

16

2

S08

20

20

1

2.7

5.5

14

-40 to 105

1

MC9S08PA16AVTJ
Data Sheet

Active

TSSOP20

20

10K @ US$0.89

16

2

S08

20

20

1

2.7

5.5

18

-40 to 105

1

MC9S08PA16AVWJ
Data Sheet

Active

SO20

20

10K @ US$0.98

16

2

S08

20

20

1

2.7

5.5

18

-40 to 105

1

MC9S08PA32AVLC
Data Sheet

Active

LQFP32

32

10K @ US$1.09

32

4

S08

20

20

1

2.7

5.5

28

-40 to 105

2

MC9S08PA32AVLD
Data Sheet

Active

LQFP44

44

10K @ US$1.17

32

4

S08

20

20

1

2.7

5.5

37

-40 to 105

3

MC9S08PA32AVLF
Data Sheet

Active

LQFP48

48

10K @ US$1.23

32

4

S08

20

20

1

2.7

5.5

41

-40 to 105

3
