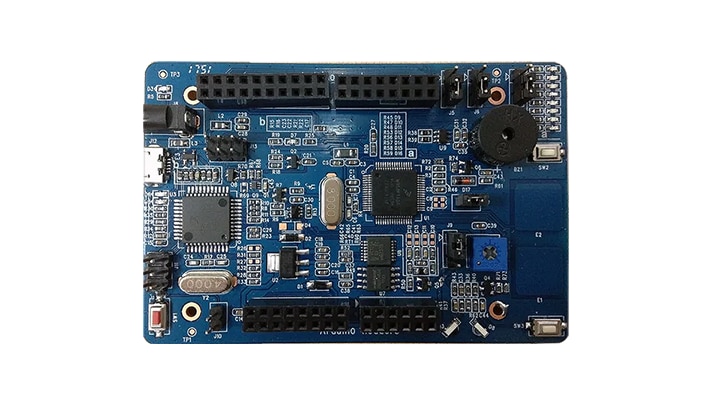

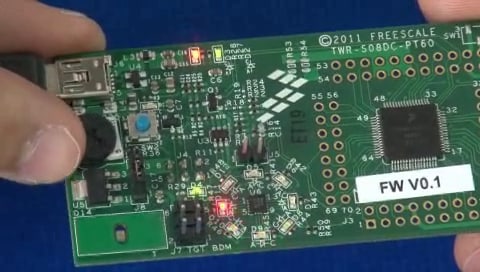

S08P-Lite Evaluation Board

S08P-LITE

Roll over image to zoom in

The S08P-Lite is a cost-effective development hardware for the NXP S08P rugged 5V 8-bit MCUs. It’s small, yet powerful, with rich integrated peripherals to evaluate all features of S08P MCUs. S08P-Lite support OSBDM debugs, so it can be used to debug without an external debugger tool. Sample code and schematic are free to download for users’ reference.

Click to Buy

Product Details

Block Diagram

Choose a diagram:

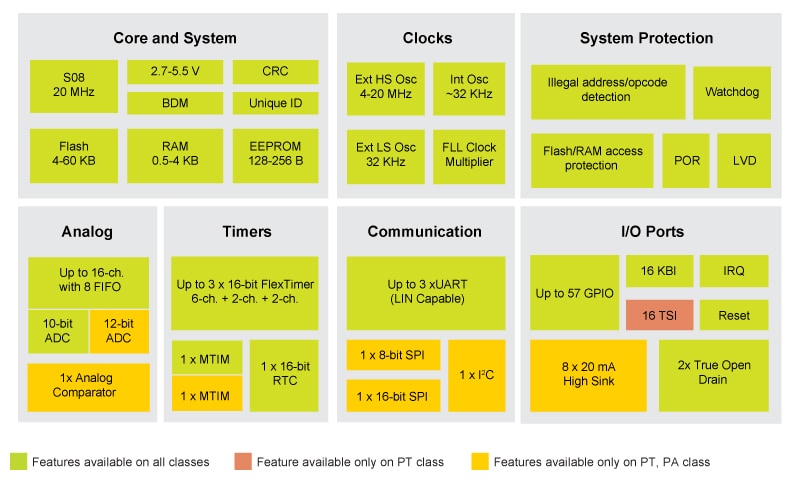

MC9S08P Block Diagram

MC9S08P MCU Block Diagram

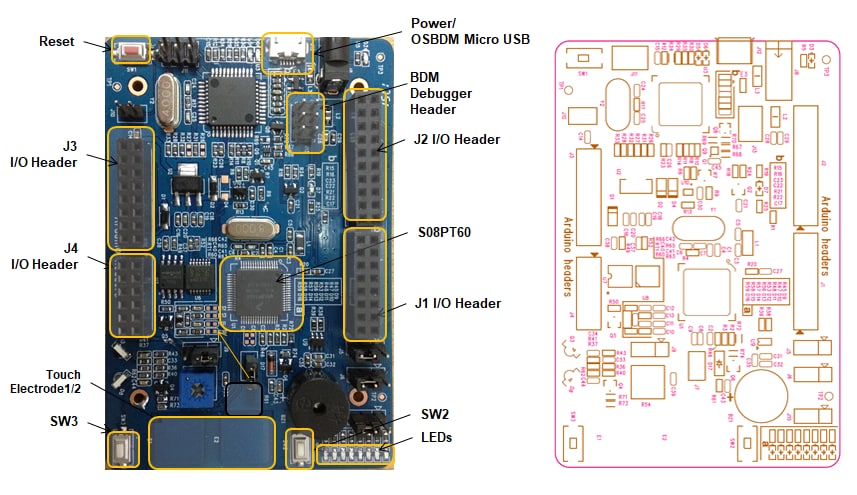

Get to know the S08P-Lite board

Get to know the S08P-Lite board
Get diagram PDF

Features

MCU

  • 5 V 8-bit S08PT60, 60KB Flash, 4 kB RAM, 256B EEPROM, 2.7 to 5.5 V, -40 to 105 °C, 64LQFP
  • Touch Sense Input (TSI), 12-bit ADC, Analog Comparator, CRC, Up to 10-channel Timer/PWM, IIC, SPI, SCI

Resource

  • On-board potentiometer to evaluate the ADC and Analog Comparator
  • On-board temperature sensor connected to ADC input
  • On-board infrared Tx/Tx module communicated through SCI
  • On-board buzzer module drive by timer/PWM
  • On-board DAC configured by IIC
  • On-board SPI Flash
  • 2x touchpads for evaluation of TSI

Interface

  • On-board OSBDM debug through micro-USB interface, no need external debugger
  • Arduino® compatible interface, capable to work with FRDM-MC-LVBLDC board for motor control application
