8-bit 5V Full-featured MCU with Rich Analog
The S08PB MCUs integrate key features like 12-bit ADC, analog comparator, amplifier, I2C, and flexible timers to simplify design and to help reduce system cost.
The S08P family is simple, yet powerful, and offers EFT/ESD performance. This scalable and pin-compatible MCU family reuses existing S08 core, IP and tools for easy migration from existing 8-bit S08 products. Our 5V 8-bit S08P MCU family gives your designs more durability and reliability in harsh industrial and user interface environments, meeting appliance safety standard IEC60730.
Product Details
Features
Memory Combination
- Provide 16 kB and 8 kB Flash option
- 1 kB RAM
Robust I/O
- Up to 18 GPIO with filtering in 20-pin
- One true open drain pin
- Up to 8 keyboard interrupt inputs
- Pin-to-pin compatible with S08P family
12-ch. , 12-bit SAR ADC
- Linear successive approximation algorithm with up to 12-bit resolution
- Up to 12-ch. single-ended external analog inputs
- 12-bit, 10-bit, and 8-bit modes, eight-deep result FIFO
- Single or continuous conversion (automatic return to idle after single conversion)
Feature-Rich Integration
- 6-ch. + 2-ch. FlexTimer + 2 x MTIM
- 16-bit Real-time counter (RTC)
- 1 x SCI (UART)
- 1 x I²C
- 2 x Analog Comparator
- One analog amplifier (OPAMP) with fixed gain x20
- Enhanced watchdog and programmable CRC
- High accuracy internal clock
Working Condition
- Optional temperature range, including -40~105°C and -40~125°C
- Support supply range 2.7 to 5.5 V
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 15 documents
-
Data Sheet
MC9S08PB16 Data Sheet
-
Application Note
3-phase BLDC Control Based on S08PB16
-
Application Note
SCI Bootloader for S08PB16
-
Application Note
How to Use the Interconnection of OPAMP, ACMP1 and FDS for S08PB16
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 6 hardware offerings
-
Emulators, Probes, and ProgrammersUniversal Multilink Development Interface
-
Emulators, Probes, and ProgrammersPEmicro Cyclone FX programmer
-
Emulators, Probes, and ProgrammersUniversal Multilink FX High-Speed Development Interface
-
Emulators, Probes, and ProgrammersPEmicro Cyclone programmer
-

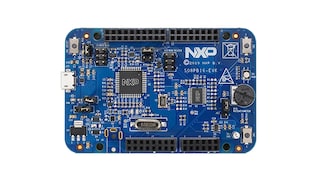

Evaluation and Development BoardsS08PB16 and S08PLS Evaluation Kit
