S08PB16 and S08PLS Evaluation Kit

S08PB16-EVK

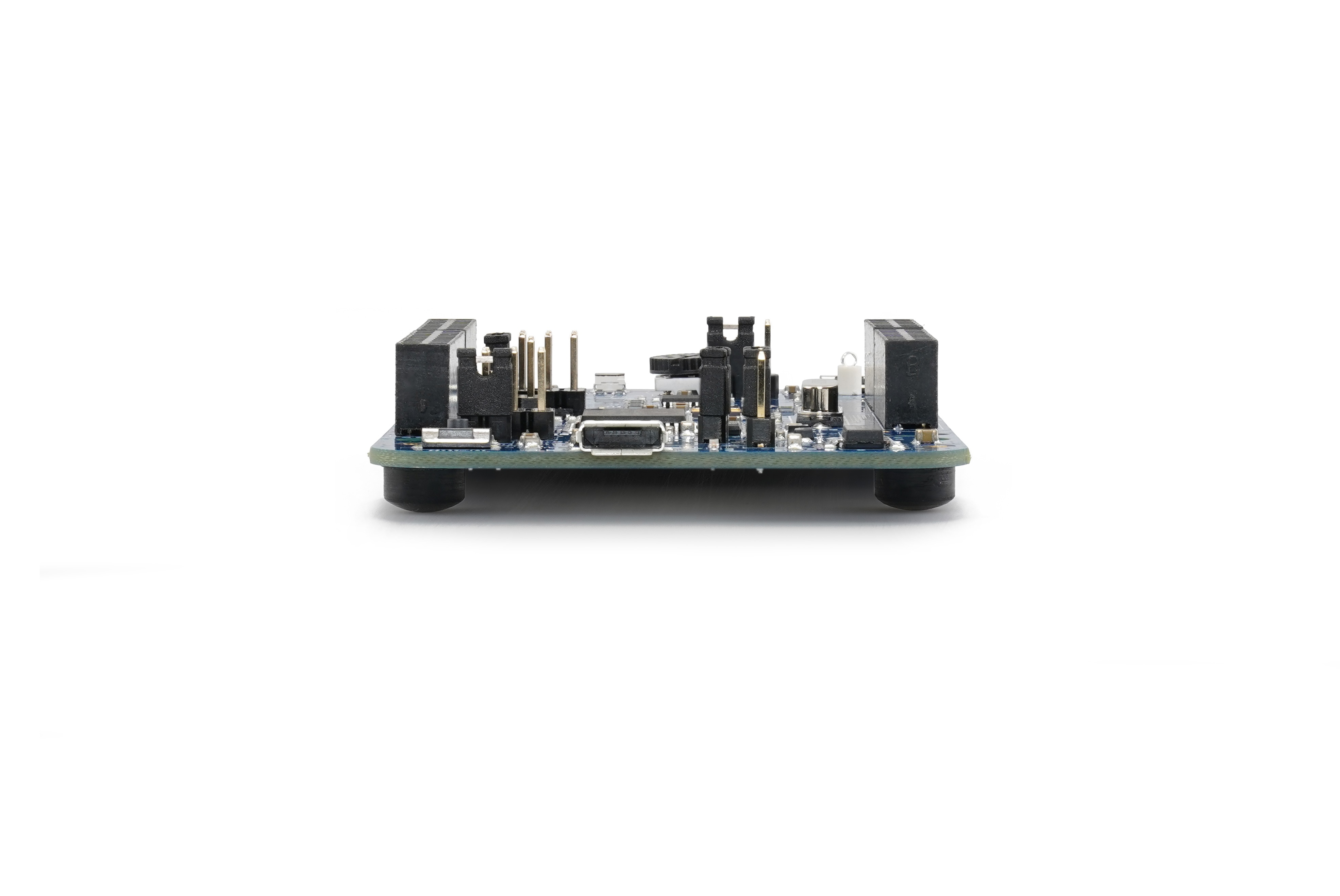

Roll over image to zoom in

The S08PB16-EVK is cost-effective development hardware for the NXP S08PB and S08PLS 5V 8-bit MCUs.

  • S08PB16-EVK is small, yet powerful, with rich integrated peripherals to evaluate all features of S08PB and S08PLS MCUs. S08PB16-EVK supports OSBDM to flash program and run-control debug without an external debug tool.
  • S08PB16-EVK provides an expansion board option, include FRDM-MC-LVBLDC for motor control.
  • Provide a free sample code for users’ reference.

Block Diagram

Choose a diagram:

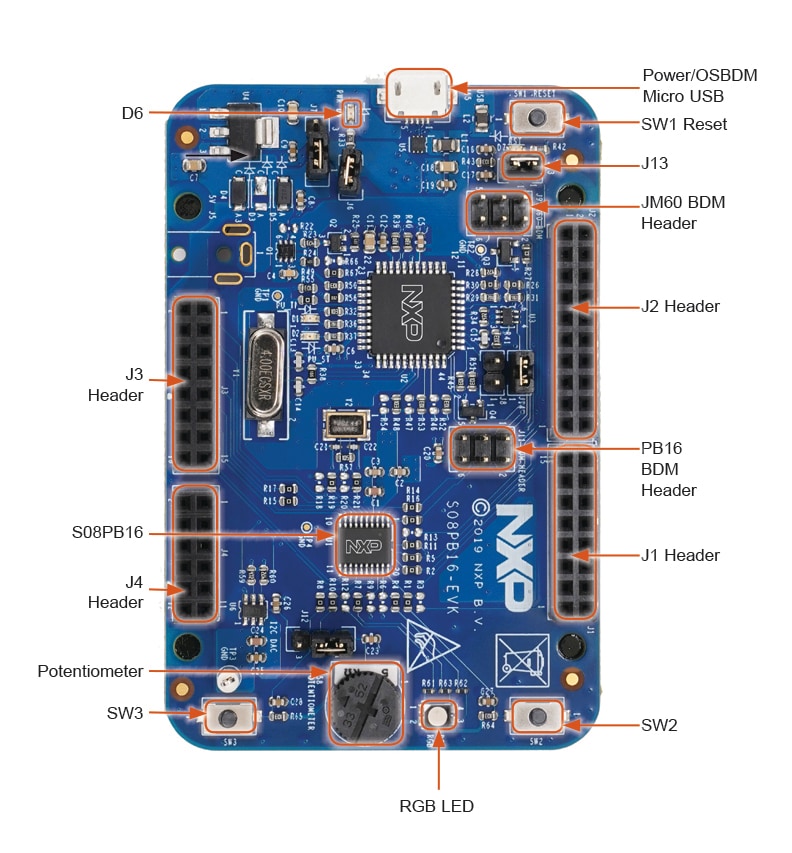

S08PB16-EVK-CALLOUTS

S08PB16-EVK-CALLOUTS

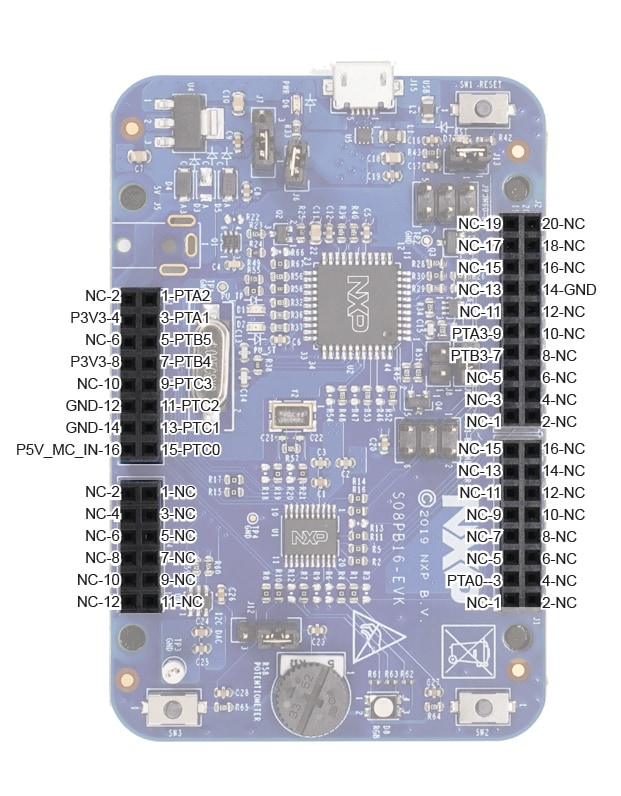

S08PB16-EVK-PINOUTS

S08PB16-EVK-PINOUTS
Get diagram PDF

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08PLS: 8-bit 5V MCU with Streamlined Features
  • S08PB: 8-bit 5V Full-featured MCU with Rich Analog

Features

Microcontroller (MCU)

  • MC9S08PB16VTJ MCU, 20 MHz
  • 16 KB flash memory, 1 KB RAM
  • 2.7 to 5.5V
  • -40 to 105 °C
  • 20-TSSOP

Connectivity

  • USB interface with micro-B USB connector

Debug

  • Onboard debug circuit: MC9S08JM60CLD (OSBDM) with a virtual serial port

Components

  • RGB LED
  • Potentiometer
  • Two user push-buttons

Buy Options

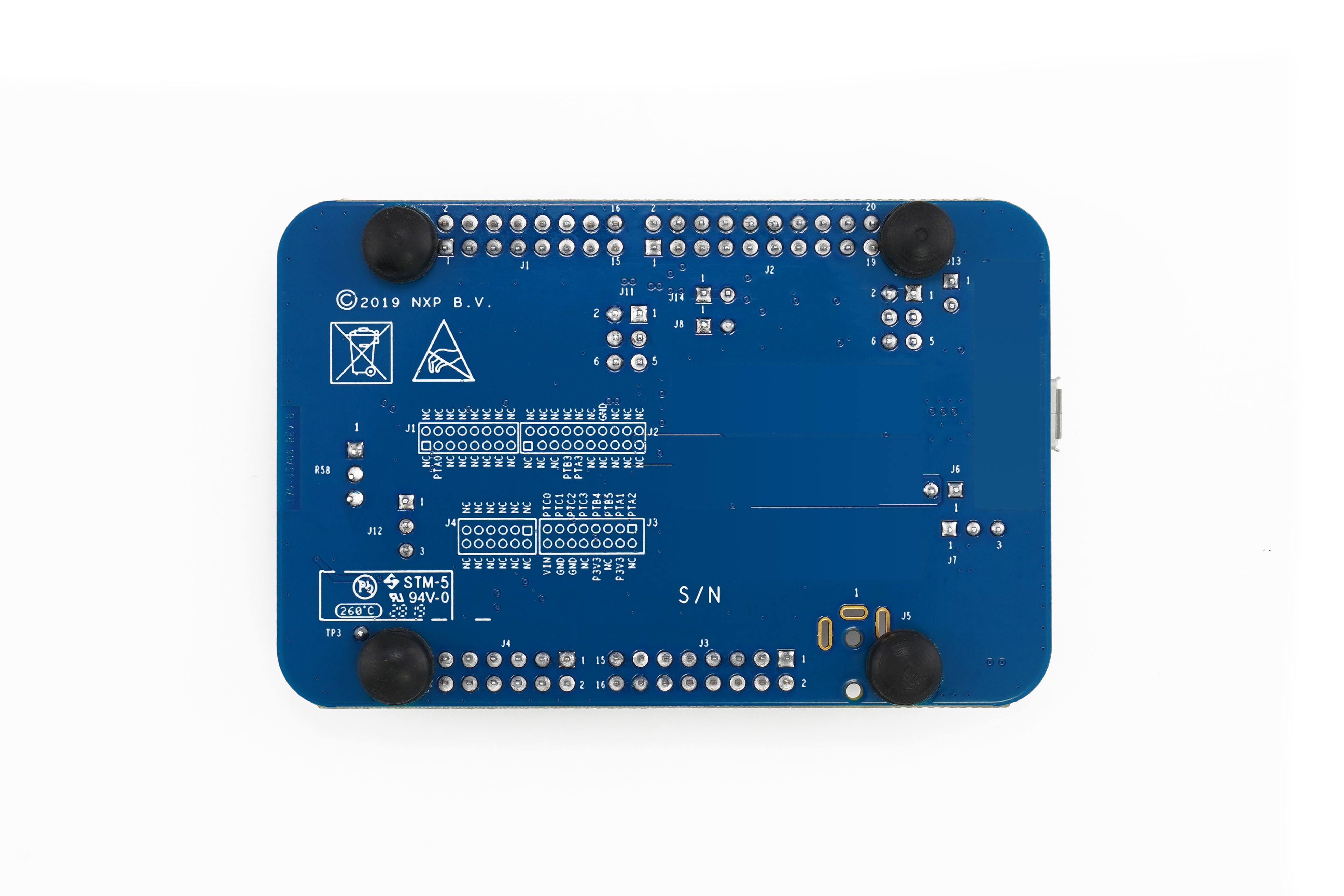

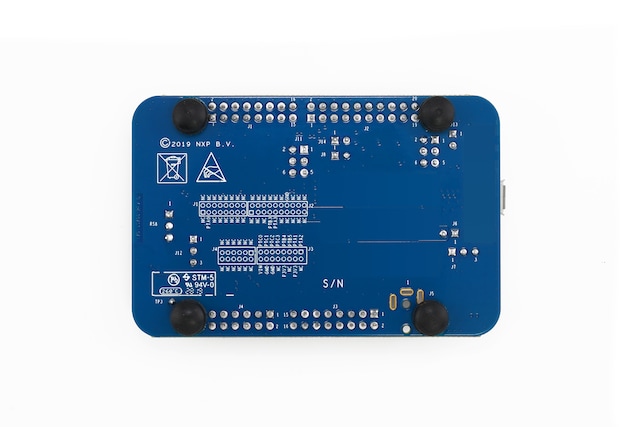

S08PB16-EVK-Image

Click to expand

  • S08PB16-EVK
    Active

  • S08PB16 and S08PLS Evaluation Kit.

  • $27.59 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
