Electrocardiograph Development Kit for Tower System

MED-EKG Preproduction

Roll over image to zoom in

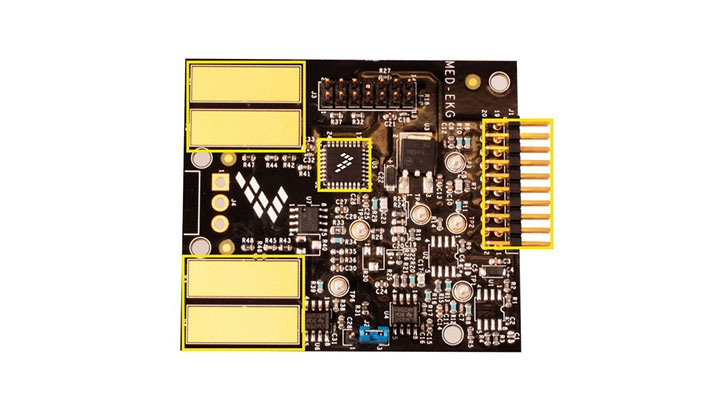

A medical-oriented development tool for the 9S08MM Flexis® 8-bit and MCF51MM ColdFire® 32-bit MCUs, the NXP® TWR-MED-EKG is an electrocardiograph sensor for medical applications development that currently can be plugged to TWR-MCF51MM or TWR-S08MM128 Tower® System modules.

Supported Devices

Processors and Microcontrollers

K5x Measurement

  • K50_100: Kinetis® K50-100 MHz, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core
  • K50_72: Kinetis® K50-72 MHz, USB Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

ColdFire® V1 Processors

  • MCF51MM: Flexis 32-Bit ColdFire® V1 MCUs

8-Bit S08 MCUs

  • S08MM: 8-bit Flexis USB MM128/64/32 MCUs

Features

Connectivity

  • Open connector for any type of EKG electrodes for additional precision
  • External connector to TWR-S08MM128 and TWR-MCF51MM

Power Management

  • Low power
  • Small form factor
  • Electrodes embedded in development board for easy EKG signal detection
  • Includes the MC56F8006 DSC used for data filtering
