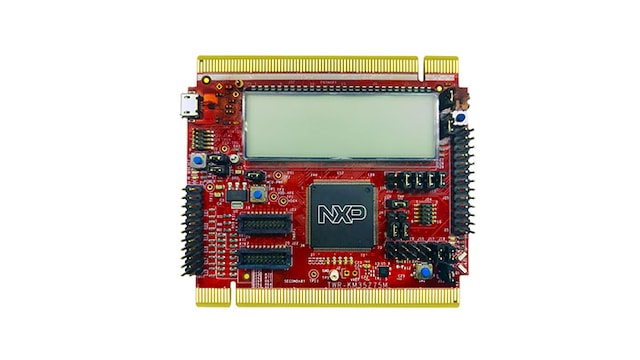

KM Series Tower System Module for KM35 MCUs

TWR-KM35Z75M Active

Roll over image to zoom in

The TWR-KM35Z75M board is designed to work either in standalone mode or as part of the Tower® System, a modular development board platform that enables rapid prototyping and tool re-use through reconfigurable hardware. Begin constructing your Tower System evaluation board platform today by visiting Tower® System Modular Development Board Platform for additional Tower System boards and compatible peripherals.

Supported Devices

Processors and Microcontrollers

KM Series Arm Cortex-M0+

  • KM3x: 50–75 MHz Precision Metrology MCUs with Segment LCDs Based on Arm® Cortex®-M0+

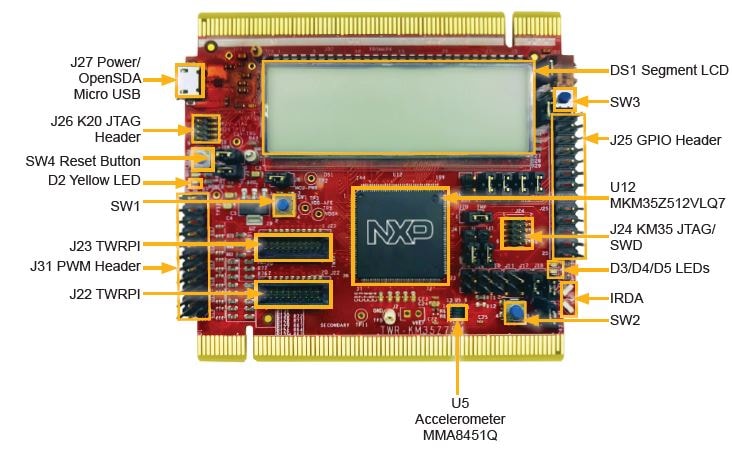

Features

Microcontroller

    KM35Z512VLQ7 MCU

  • 75 MHz
  • 512 KB Flash
  • 64 KB RAM
  • low power MCU
  • LQFP144 package
  • Tower®-compatible microcontroller module

Connectivity

  • USB interface with mini-B USB connector
  • Headers for direct GPIO and ADC access
  • General-purpose tower plug-in (TWRPI) socket
  • External tamper pins

Power Management

  • Independent, battery-operated power supply for real-time clock (RTC) and tamper detection modules

Debug

  • On-board debug circuit: Open-source SWD (OpenSDA) with virtual serial port

Sensors

  • Three-axis accelerometer/anti tamper tilt sensor (MMA8451Q)
  • NTC temperature sensor

Display

  • Large 160-segment glass LCD

Support

  • IrDA support

User Components

  • Three user-controllable LEDs
  • Two user push-button switches for GPIO interrupts
  • One user push-button switch for tamper detection
  • One user push-button switch for MCU reset
  • Potentiometer

Buy Options

TWR-KM35Z75M-Image

Click to expand

  • TWR-KM35Z75M
    Active

  • KM Series Tower System Module for KM35 MCUs.

  • TWR-KM35Z75M Tower System module

    • Quick Start Guide
    • USB Cable
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
