Kinetis K20 50 MHz Tower System Module

TWR-K20D50M Active

Roll over image to zoom in

NXP recommends the FRDM – K22F development platform as an alternative to this board.

The TWR-K20D50M module is a development board for the Kinetis® K10 and K20 50 MHz 32-bit Arm® Cortex®-M4 MCUs and provides rapid prototyping for applications requiring high feature integration and low power consumption.

The TWR-K20D50M operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

Supported Devices

Processors and Microcontrollers

K1x Mainstream

  • K10_50: Kinetis K10-50 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K2x / KS2x USB

  • K20_50: Kinetis® K20-50 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core

Features

Connectivity

  • Tower connectivity for access to UART, SPI, I2C
  • Microphone, buzzer, and SAI (I2S) connector
  • Ready for USB 2.0 On-The-Go (full speed) connectivity
  • Tower® Plug-In (TWRPI) socket for sensor and touch boards expansion (keypads, rotary dials, sliders)

Sensors

  • MMA8451Q 3-axis accelerometer
  • 2 x capacitive touchpads
  • K20DX128 in 64 LQFP, K20DX128VLH5
  • Integrated, open source JTAG
  • Plus: Potentiometer, four LEDs, pushbuttons, infrared port, and battery holder

Buy Options

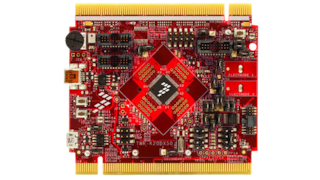

TWR-K20D50M-Image

Click to expand

  • TWR-K20D50M
    Active

  • Tower System Development Board for Kinetis K10 and K20 (50 MHz) MCUs.

    • TWR-K20D50M - 32-bit MCU module with K20DX128VLH5 MCU (64 LQFP)
    • Quick Start Guide document
    • 2 USB cables (micro, mini)
    • Battery
  • For a quantity of 1
Order from distributors
