Kinetis KV5x MCU Family Tower System Module

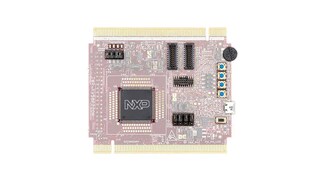

TWR-KV58F220M Active

Roll over image to zoom in

The TWR-KV58F220M is a development tool for the Kinetis V series KV5x MCU family built on the Arm® Cortex®-M7 processor. The TWR-KV58F220M MCU module is designed to work either in standalone mode or as part of the Tower System, a modular development platform that enables rapid prototyping and tool re-use through reconfigurable hardware.

As is standard with all Tower System modules, the TWR-KV58F220M MCU module can be used with a variety of existing peripheral modules, such as TWR-MC-LV3PH for motor control rapid prototyping.

The TWR-KV58F220M is supported by Zephyr OS for developing the Internet of Things with a free, open-source embedded operating system. Click here to go to the Zephyr board page.

Product Details

Supported Devices

Processors and Microcontrollers

KV Series Arm Cortex-M4/M0+/M7

  • KV5x: Kinetis® KV5x-240 MHz, Motor Control and Power Conversion, Ethernet, MCUs based on Arm® Cortex®-M7

Features

Microcontroller

  • 2MKV58F1M0VLQ22 MCU
    • Arm® Cortex®-M7
    • Running at 240 MHz with single precision floating point unit

Debug

  • OpenSDA debug circuit with mini USB connector and virtual serial port

Sensors

  • Combined magnetometer and accelerometer

Connectivity

  • Motor control and auxiliary signal connectors

User Components

  • Potentiometer for ADC conversion simulation
  • Four push buttons for user input or interrupts
  • Four LEDs

Buy Options

TWR-KV58F220M-Image

Click to expand

  • TWR-KV58F220M
    Active

  • Tower System Development Board for Kinetis KV56 and KV58 MCUs.

    • TWR-KV58F220M Kinetis KV5x 240 MHz MCU Tower System Module
    • Quick Start Guide Reference Card
  • $182.85 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
