Kinetis K60 100 MHz MCU Tower System Module

TWR-K60D100M Active

Roll over image to zoom in

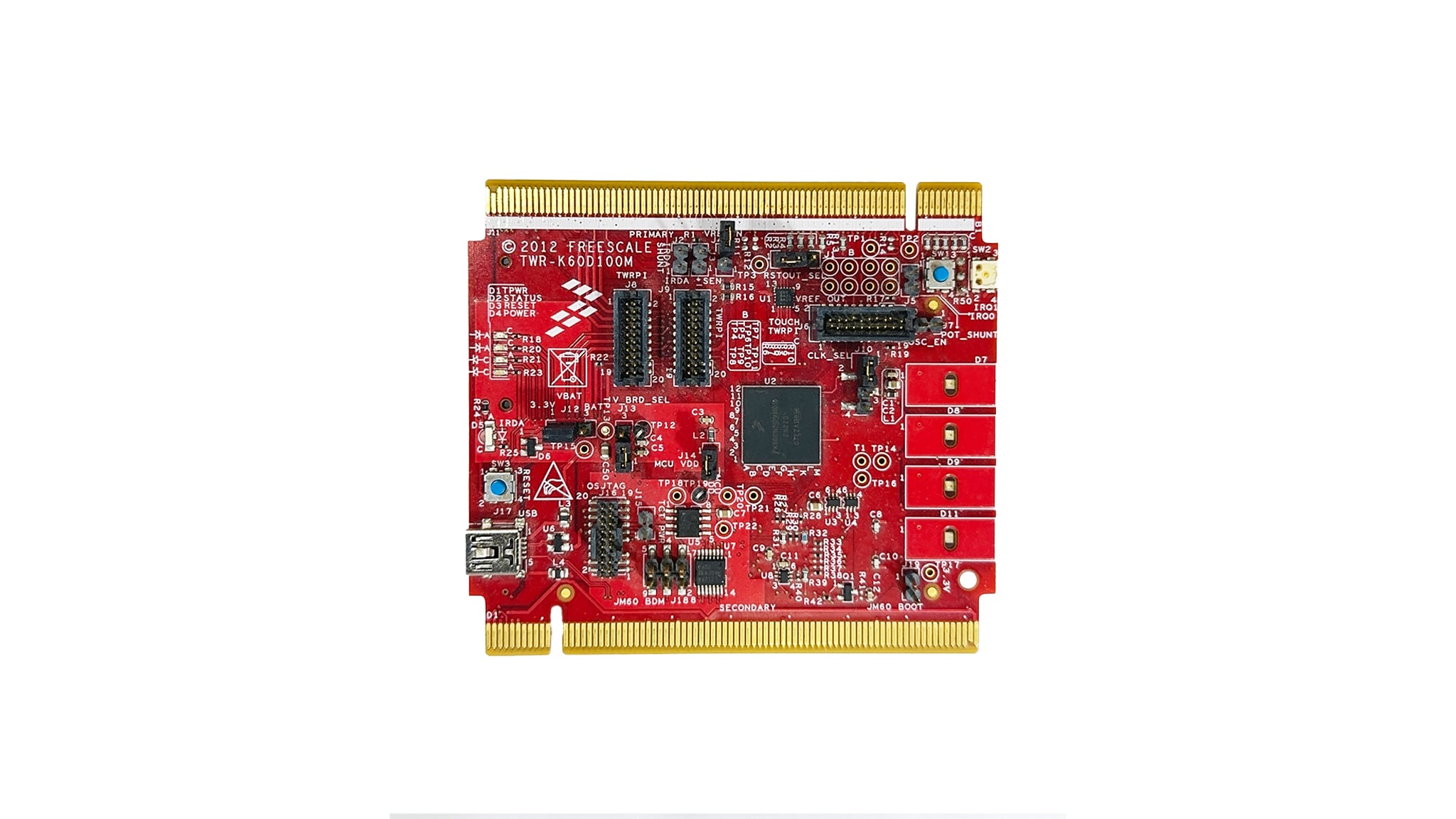

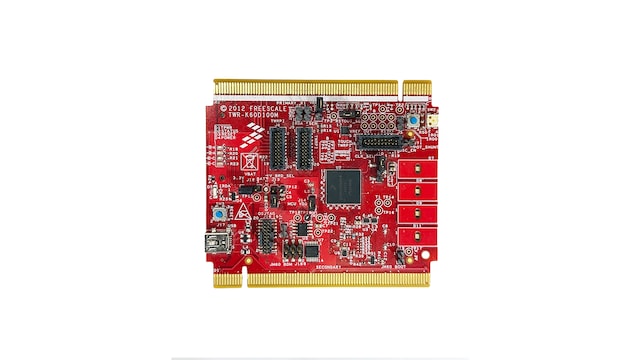

The TWR-K60D100M is a development tool for the 100 MHz K60, K20, and K10 families of Kinetis® microcontrollers.

The TWR-K60D100M operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

Supported Devices

Processors and Microcontrollers

K1x Mainstream

  • K10_100: Kinetis® K10-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K2x / KS2x USB

  • K20_100: Kinetis® K20-100 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core

K6x Ethernet

  • K60_100: Kinetis® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core

Features

Microcontroller

    MK60DN512VMD10 Kinetis® MCU

  • 512 KB flash
  • 128 KB SRAM

Debug

  • Integrated open source JTAG via USB

Connectivity

  • SD card slot
  • General purpose TWRPI socket for expansion (sensors, etc.)
  • Touch TWRPI socket adds support for various capacitive touch boards
  • Tower® connectivity for access to USB, Ethernet, RS232/RS485, CAN, SPI, I²C
  • Flex bus

Sensor

  • MMA8451Q 3-axis accelerometer
  • Four capacitive touch pads

User Components

  • Potentiometer
  • Four LEDs
  • Two push buttons
  • Infrared port

Software and support application development

    null

Buy Options

TWR-K60D100M-KIT-Image

Click to expand

  • TWR-K60D100M-KIT
    Active

  • K60D 100MHz Tower Kit.

    • Part Number TWR-K60D100M contains:

      • TWR-K60D100M board with a MK60DN512VMD10 (144 MAPBGA) 32-bit MCU
      • MMA8451Q 3-axis accelerometer
      • Quick Start Guide document

    • Part Number TWR-K60D100M-KIT contains:

      • TWR-ELEV - Tower System Elevator Modules
      • TWR-SER - Tower System Serial Module
  • $195.49 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
TWR-K60D100M-Image

Click to expand

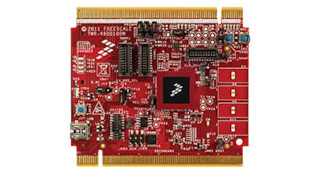

  • TWR-K60D100M
    Active

  • Tower System Development Board for Kinetis K10, K20 and K60 (100 MHz) MCUs.

  • $113.85 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
