Kinetis K60 120 MHz Tower System Module

TWR-K60F120M Active

Roll over image to zoom in

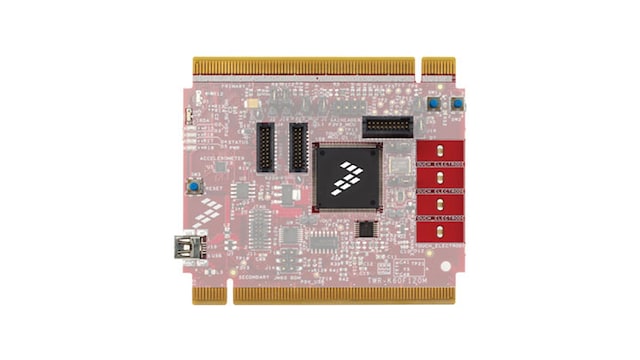

The NXP® TWR-K60F120M is a development board for the Kinetis® K10, K20 and K60 120/150MHz 32-bit Arm® Cortex®-M4 MCUs. It features the Kinetis MK60FN1M0VMD12 low-power MCU with USB 2.0 HS OTG controller, USB 2.0 FS OTG controller and 10/100 Mbps Ethernet MAC.

The TWR-K60F120M operates as a standalone debug tool and can also be combined and used as part of the modular Tower® System development platform.

Supported Devices

Processors and Microcontrollers

K1x Mainstream

  • K10_120: Kinetis® K10-120 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K2x / KS2x USB

  • K20_120: Kinetis® K20-120 MHz, Full-Speed USB, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K6x Ethernet

  • K60_120: Kinetis® K60/61-120–150 MHz, Mixed-Signal Integration and Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core

Features

Microcontroller

  • MK60FN1M0VLQ12: K60FN1M in a 144 LQFP with 120 MHz operation
  • S08JM60 based open source BDM (OSBDM) circuit

Memory

  • NAND flash
  • SD Card slot

Connectivity

  • Socket for Capacitive Touch Pad expansion board (Touch TWRPI)
  • Socket for Tower® Plugin (TWRPI, e.g. sensor board)

Sensors

  • 4 Capacitive Touch Pads and 2 mechanical push button
  • Three-axis digital accelerometer (MMA8451Q)

Components

  • 4 user-controlled status LEDs
  • Potentiometer

Buy Options

TWR-K60F120M-Image

Click to expand

  • TWR-K60F120M
    Active

  • Tower System Development Board for Kinetis K10, K20, K60 and K61 (120-150 MHz) MCUs.

  • Part Number TWR-K60F120M contains:
    • TWR-K60F120M board with a MK60FN1M0VLQ12 32-bit MCU
    • DVD with software installers and documentation
    • Quick Start Guide document
  • $148.35 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
TWR-K60F120M-KIT-Image

Click to expand

  • TWR-K60F120M-KIT
    Active

  • K60F120M Tower Kit.

  • Part Number TWR-K60F120M-KIT contains:
    • TWR-ELEV – Tower System Elevator Modules
    • TWR-SER – Tower System Serial Module
  • $194.35 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
