Kinetis K40 100 MHz Low-Power MCU Tower System Module

TWR-K40D100M Active

Roll over image to zoom in

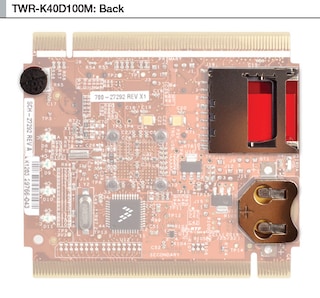

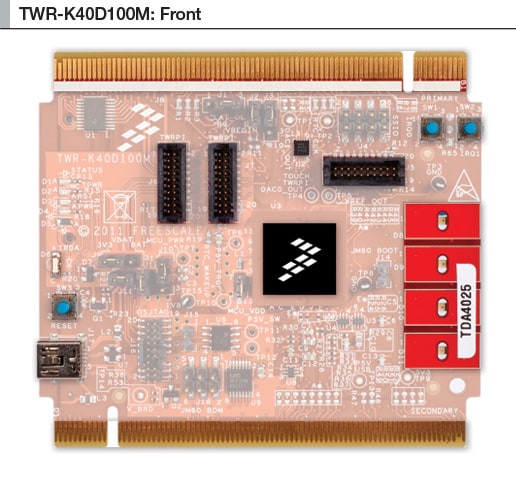

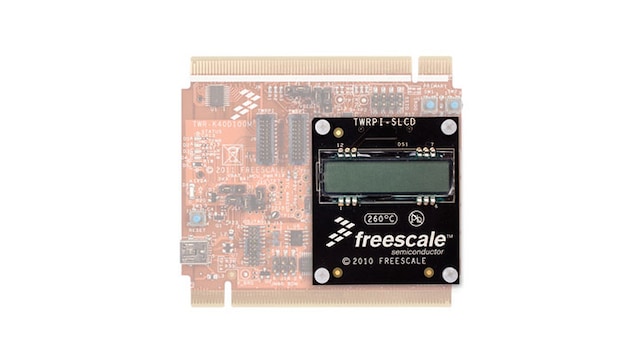

The TWR-K40D100M module is a development tool for the Kinetis® K30 and K40 32-bit Arm® Cortex®-M4 MCUs and adds segment LCD and USB 2.0 on-the-go (OTG) functionality. It features the Kinetis low-power MK40DX256VMD10 MCU with USB 2.0 full-speed OTG controller and the TWRPI-SLCD segment LCD Tower® Plug-In (TWRPI).

The TWR-K40D100M operates as a standalone debug tool and can also be combined and used as part of the modular Tower System development platform.

Supported Devices

Processors and Microcontrollers

K3x Segment LCD

  • K30_100: Kinetis® K30-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

K4x USB and Segment LCD

  • K40_100: Kinetis® K40-100 MHz, Mixed-Signal Integration Microcontrollers (MCUs) based on Arm® Cortex®-M4 Core

Features

Microcontroller

    MK40DX256VMD10 MCU

  • 100 MHz Arm Cortex-M4 core
  • 512 KB total flash
  • SLCD
  • USB FS OTG
  • 144 MAPBGA

Connectivity

  • General-purpose TWRPI socket (tower plug-in module)

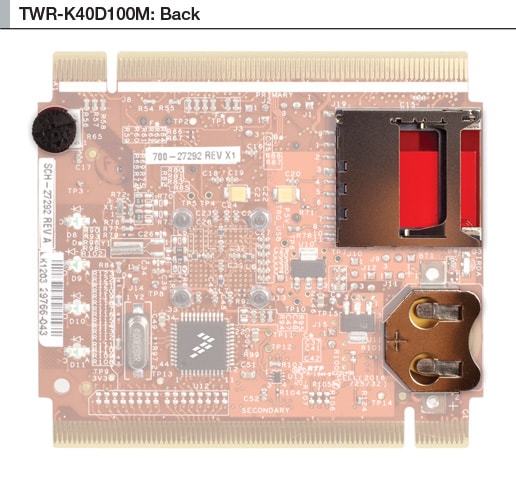

  • SD card socket and coin-cell battery holder

Debug

  • Integrated open source JTAG (OSJTAG) circuit

Sensors

  • MMA8451Q 3-axis accelerometer
  • Four capacitive touch pads

User Components

  • Four user-controlled status LEDs
  • Two mechanical push buttons
  • Potentiometer

Buy Options

TWR-K40D100M-Image

Click to expand

  • TWR-K40D100M
    Active

  • Tower System Development Board for Kinetis K30 and K40 MCUs.

    • TWR-K40D100M module contains:
      • TWR-K40D100M MCU module with TWRPI-SLCD daughter card
      • Printed Quick Start Guide
      • Cables
    • TWR-K40D100M-KIT complete kit contains:
      • TWR-K40D100M module
      • TWR-SER serial module
      • TWR-ELEV elevator modules
  • $114.99 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
