Tower System Development Board for Kinetis Ultra-Low-Power KL82 MCUs

TWR-KL82Z72M Active

Roll over image to zoom in

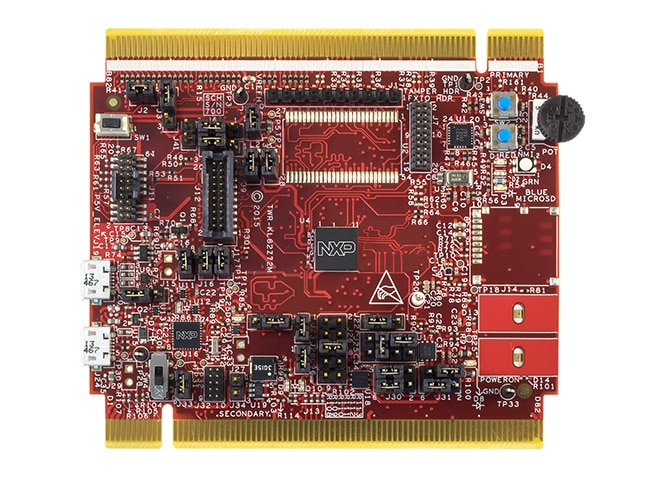

The TWR-KL82Z72M is a development board for Kinetis KL82 32-bit MCUs. It features the Kinetis MKL82Z128VMC7 MCU 72 MHz Arm® Cortex®-M0+ core, 128 KB flash, 96 KB SCRAM, 121 MAPBGA and USB.

The TWR-KL82Z72M operates as a standalone debug tool and can also be combined and used as part of the modular Tower System development platform.

Product Details

Supported Devices

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL8x: Kinetis® KL8x-72/96 MHz Secure Ultra-Low Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

Microcontroller

    MKL82Z128VMC7 MCU

  • 72 MHz Cortex-M0+ core
  • 128 KB flash
  • 96 KB SRAM
  • 121 MAPBGA
  • USB

Memory

  • 2 x 128 Mbit (16 MB) dual onboard QuadSPI memory @ 3.3 V

Connectivity

  • Tower compatible processor board
  • EMVSIM Card Interface
  • Socket for Touch Keypad plug-in (TWRPI-TOUCH-STR)

Power Management

  • Board power select with 3.3 V or 1.8 V MCU operation
  • Independent, battery-operated power supply for real-time clock (RTC) module
  • Battery holder for 20 mm lithium battery (e.g. 2032, 2025)

Debug

  • Onboard debug circuit: K20DX128VFM5 OpenSDA with virtual serial port

Sensors

    Ten axis sensor system

  • FXOS8700CQ 3D Accelerometer + 3D Magnetometer
  • MPL3115A2 Digital Pressure Sensor
  • FXAS21002C 3-axis gyroscope
  • Standalone full-speed USB host and device function

Components

  • Five user-controlled status LEDs
  • Two capacitive touch pads
  • Two mechanical push buttons
  • Potentiometer

More

Buy Options

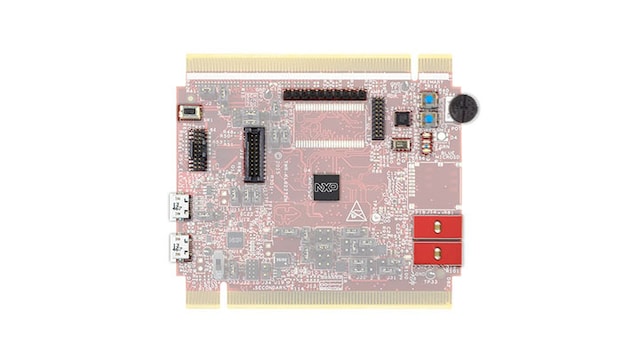

TWR-KL82Z72M-Image

Click to expand

  • TWR-KL82Z72M
    Active

  • Tower System Development Board for Kinetis KL81 and KL82 MCUs.

    • TWR-KL82Z72M Tower System module
    • Quick Start Guide
    • Supporting cable
  • For a quantity of 1
