Kinetis® KV1x Family Tower® System Module

TWR-KV11Z75M Active

Roll over image to zoom in

The TWR-KV11Z75M is a development tool for the Kinetis V series KV1x 64 kB and 128 kB MCU family built on the Arm® Cortex®-M0+ processor.

As is standard with all Tower System modules, the TWR-KV11Z75M MCU module can be used with a variety of existing peripheral modules, such as TWR-MC-LV3PH for motor control rapid prototyping.

Torque your designs and speed your time to market with TWR-KV11Z75M.

Supported Devices

Processors and Microcontrollers

KV Series Arm Cortex-M4/M0+/M7

  • KV1x: Kinetis® KV1x-75 MHz,  Entry-Level 3ph FOC / Sensorless Motor Control MCUs based on Arm® Cortex®-M0+

Features

Microcontroller

  • MKV11Z128VLH7 MCU
    • Arm® Cortex®-M0+ 75 MHz
    • 128 KB Flash
    • 16 KB SRAM
    • 1x FlexCAN
    • 2x 16-bit ADC and FlexTimers with quadrature decoder dedicated to motor and power control
    • 64 LQFP

Connectivity

  • Four thermistors for single-ended or differential analog inputs Motor control auxiliary connectors

Power Management

  • Power selectable 3.3 V/1.8 V

Debug

    New, OpenSDA debug interface:

  • Mass storage device flash programming interface (default); no tool installation required to evaluate demo apps
  • P&E Multilink Debug interface provides run-control debugging and compatibility with IDE tools
  • CMSIS-DAP interface: new Arm standard for embedded debug interface
  • SEGGER J-Link-Lite allows users to take advantage of most J-Link features like the ultra-fast flash download and debugging speed or the free-to-use GDBServer

Sensors

  • FX0S87000CQ: digital accelerometer and magnetometer

Components

  • Eight user-controllable LEDs
  • Two user push-button switch

Buy Options

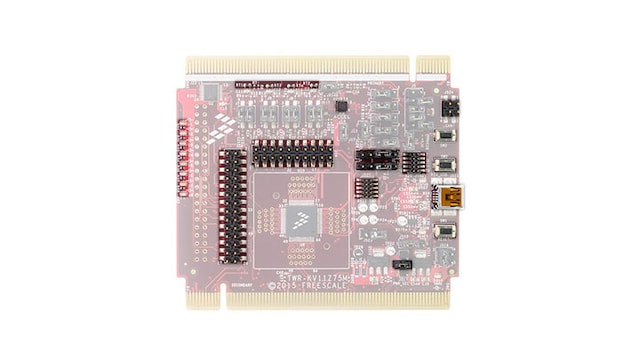

TWR-KV11Z75M-Image

Click to expand

  • TWR-KV11Z75M
    Active

  • Tower System Development Board for Kinetis KV10 and KV11 (75 MHz, 64-128 KB Flash) MCUs.

    • TWR-KV11Z75M Tower System module
    • Quick Start Guide document
  • For a quantity of 1
Order from distributors
N true 0 TSPTWR-KV11Z75Men 8 Application Note Application Note t789 1 Data Sheet Data Sheet t520 1 Fact Sheet Fact Sheet t523 1 Release Note Release Note t933 2 User Guide User Guide t792 3 en_US 2 1 1 English The TWR-KV11Z75M Tower System Module is the entry level member of the Kinetis based Microcontroller family specifically labeled &#8220;Kinetis V-Series&#8221;. On a single chip, the Module combines the processing power of up to 75 MHz Arm&#174; Cortex&#174;-M0+ CPU with up to 128 KB flash, 16 KB RAM, a motor control timer, and an ADC with capability to capture two inputs simultaneously (two current phase measurements), within a period of 800 nanoseconds (ns) to 1 millisecond (ms). 1434130055548718583728 TSP 1.2 MB Registration without Disclaimer None documents Y Extended 1434130055548718583728 /secured/assets/documents/en/user-guide/TWRKV11Z75MUG.pdf 1248494 /secured/assets/documents/en/user-guide/TWRKV11Z75MUG.pdf TWRKV11Z75MUG Y N 2016-10-31 TWR-KV11Z75M Tower System Module User’s Guide /webapp/Download?colCode=TWRKV11Z75MUG /secured/assets/documents/en/user-guide/TWRKV11Z75MUG.pdf User Guide N Y 132339537837198660 2023-06-18 pdf Y en Sep 17, 2015 User Guide t792 User Guide User Guide Y N TWR-KV11Z75M Tower System Module User’s Guide 2 1 English The TWR-KV11Z75M Tower<sup>&#174;</sup> System Module is a standalone development kit that can be used in conjunction with the Tower System development platform and the TWR-MC-LV3PH motor control module. To watch a video on how to configure the board, go to nxp.com/TWR-KV10Z32. 1434171693812717769655 TSP 835.7 KB Registration without Disclaimer None documents Y Extended 1434171693812717769655 /secured/assets/documents/en/user-guide/TWRKV11Z75MQSG.pdf 835738 /secured/assets/documents/en/user-guide/TWRKV11Z75MQSG.pdf TWRKV11Z75MQSG Y N 2016-10-31 TWR-KV11Z75M Tower System Module Quick Start Guide /webapp/Download?colCode=TWRKV11Z75MQSG /secured/assets/documents/en/user-guide/TWRKV11Z75MQSG.pdf User Guide N Y 132339537837198660 2023-06-18 pdf Y en Oct 9, 2015 User Guide t792 User Guide User Guide Y N TWR-KV11Z75M Tower System Module Quick Start Guide false en_US 1 3 3 English This document provides instructions how to run and control a Brushless DC (BLDC) sensorless application with the Freescale Freedom and Tower development boards. 1445251806479721433320 TSP 3.8 MB Registration without Disclaimer None documents Y Extended 1445251806479721433320 /secured/assets/documents/en/user-guide/BLDCAPPACUG.pdf 3834447 /secured/assets/documents/en/user-guide/BLDCAPPACUG.pdf BLDCAPPACUG Y N 2016-10-31 BLDC Motor Control Reference Solution Package /webapp/Download?colCode=BLDCAPPACUG /secured/assets/documents/en/user-guide/BLDCAPPACUG.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Sep 22, 2016 User Guide t792 User Guide User Guide Y N BLDC Motor Control Reference Solution Package false en Data Sheet Data Sheet 1 4 MKV10Z128VFM7,MKV10Z128VLF7,MKV10Z128VLH7,MKV10Z64VFM7,MKV10Z64VLF7,MKV10Z64VLH7,MKV11Z128VFM7,MKV11Z128VLF7,MKV11Z128VLH7,MKV11Z64VFM7,MKV11Z64VLF7,MKV11Z64VLH7 6 English Kinetis KV11 Data Sheet: 75 MHz Arm Cortex-M0+ microcontroller (MCU), BLDC, PMSM motor, 64/128 KB Flash/16 KB SRAM (32-64 pin) 1434086204055705725994 TSP 1.1 MB None None documents None 1434086204055705725994 /docs/en/data-sheet/KV11P64M75.pdf 1079995 /docs/en/data-sheet/KV11P64M75.pdf KV11P64M75 documents N N 2017-05-10 Kinetis V series KV10 and KV11: 75 MHz Arm Cortex-M0+ 64/128 KB Flash (32-64 pin) /docs/en/data-sheet/KV11P64M75.pdf /docs/en/data-sheet/KV11P64M75.pdf Data Sheet N 980000996212993340 2022-12-07 pdf N en Nov 2, 2020 980000996212993340 Data Sheet Y N Kinetis V series KV10 and KV11: 75 MHz Arm Cortex-M0+ 64/128 KB Flash (32-64 pin) Application Note Application Note 1 5 0 Chinese 1434140910067744927310zh TSP 367.1 KB None None documents None 1434140910067744927310 /docs/zh/application-note/AN5145.pdf 367098 /docs/zh/application-note/AN5145.pdf AN5145 documents N N 2016-10-31 Use of Memory-Mapped Divide and Square Root (MMDVSQ) Peripheral on Kinetis KV1x /docs/zh/application-note/AN5145.pdf /docs/zh/application-note/AN5145.pdf Application Note N 645036621402383989 2022-12-07 zh 645036621402383989 Application Note N 在Kinetis KV1x上使用内存映射除法器和平方根(MMDVSQ) 外设 0 English Many real-time applications require mathematic functions for calculation. However, not all cores are equipped with the instruction set to cover all mathematic functions. In such use cases, the user must emulate the function through time-consuming calculations. 1434140910067744927310 TSP 367.1 KB None None documents None 1434140910067744927310 /docs/en/application-note/AN5145.pdf 367098 /docs/en/application-note/AN5145.pdf AN5145 documents N N 2016-10-31 Use of Memory-Mapped Divide and Square Root (MMDVSQ) Peripheral on Kinetis KV1x /docs/en/application-note/AN5145.pdf /docs/en/application-note/AN5145.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jun 12, 2015 645036621402383989 Application Note Y N Use of Memory-Mapped Divide and Square Root (MMDVSQ) Peripheral on Kinetis KV1x Fact Sheet Fact Sheet 1 6 9 English Kinetis KV1x Fact Sheet: Cost optimized Arm Cortex-M0+ microcontroller (MCU) family for BLDC/PMSM motor control applications 1392416008870714597185 TSP 232.7 KB None None documents None 1392416008870714597185 /docs/en/fact-sheet/KV1XFS.pdf 232726 /docs/en/fact-sheet/KV1XFS.pdf KV1XFS documents N N 2016-10-31 Kinetis KV1x: Arm Cortex-M0+ MCUs - BLDC/PMSM motor control /docs/en/fact-sheet/KV1XFS.pdf /docs/en/fact-sheet/KV1XFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf N en Dec 14, 2017 736675474163315314 Fact Sheet Y N Kinetis KV1x: Arm Cortex-M0+ MCUs - BLDC/PMSM motor control Release Note Release Note 2 7 0 English These are the release notes for Kinetis Software Development Kit (KSDK) 1.2.0. They support KV10 and KV11 derivatives with 128 KB and 64 KB of Flash memory. The core 1436279659417718524307 TSP 401.8 KB None None documents None 1436279659417718524307 /docs/en/release-note/KSDK120KV11RN.pdf 401772 /docs/en/release-note/KSDK120KV11RN.pdf KSDK120KV11RN documents N N 2016-10-31 Kinetis SDK v.1.2.0 Release Notes for KV11 Derivatives /docs/en/release-note/KSDK120KV11RN.pdf /docs/en/release-note/KSDK120KV11RN.pdf Release Note N 487216834315582133 2022-12-07 pdf N en Jul 7, 2015 487216834315582133 Release Note Y N Kinetis SDK v.1.2.0 Release Notes for KV11 Derivatives 8 0 English These are the Release Notes for the MQX<sup>™</sup> RTOS for Kinetis SDK 1.2.0 TWR-KV11Z75M Tower<sup>®</sup> System module using the MKV11Z128VLH7 microcontroller. NXP CPU MKV11Z128VLH7 belongs to the Kinetis K series processor family of 32-bit microcontrollers. The software is based on Kinetis SDK (KSDK) version 1.2.0. It includes the full set of RTOS services and a standard set of peripheral drivers. 1436280236273712619693 TSP 610.6 KB None None documents None 1436280236273712619693 /docs/en/release-note/MQXKSDK120KV11RN.pdf 610559 /docs/en/release-note/MQXKSDK120KV11RN.pdf MQXKSDK120KV11RN documents N N 2016-10-31 MQX™ RTOS Release Notes for Kinetis SDK 1.2.0 KV11 Freescale Platforms /docs/en/release-note/MQXKSDK120KV11RN.pdf /docs/en/release-note/MQXKSDK120KV11RN.pdf Release Note N 487216834315582133 2022-12-07 pdf N en Jul 7, 2015 487216834315582133 Release Note Y N MQX™ RTOS Release Notes for Kinetis SDK 1.2.0 KV11 Freescale Platforms false 0 TWR-KV11Z75M downloads en true 0 Y TSP Application Note 1 /docs/en/application-note/AN5145.pdf 2016-10-31 1434140910067744927310 TSP 5 Jun 12, 2015 Application Note Many real-time applications require mathematic functions for calculation. However, not all cores are equipped with the instruction set to cover all mathematic functions. In such use cases, the user must emulate the function through time-consuming calculations. None /docs/en/application-note/AN5145.pdf English documents 367098 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5145.pdf Use of Memory-Mapped Divide and Square Root (MMDVSQ) Peripheral on Kinetis KV1x /docs/en/application-note/AN5145.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Use of Memory-Mapped Divide and Square Root (MMDVSQ) Peripheral on Kinetis KV1x 367.1 KB AN5145 N 1434140910067744927310 Data Sheet 1 /docs/en/data-sheet/KV11P64M75.pdf 2017-05-10 1434086204055705725994 TSP 4 Nov 2, 2020 Data Sheet Kinetis KV11 Data Sheet: 75 MHz Arm Cortex-M0+ microcontroller (MCU), BLDC, PMSM motor, 64/128 KB Flash/16 KB SRAM (32-64 pin) None /docs/en/data-sheet/KV11P64M75.pdf English documents 1079995 None 980000996212993340 2022-12-07 N /docs/en/data-sheet/KV11P64M75.pdf Kinetis V series KV10 and KV11: 75 MHz Arm Cortex-M0+ 64/128 KB Flash (32-64 pin) /docs/en/data-sheet/KV11P64M75.pdf documents 980000996212993340 Data Sheet N en None Y pdf 6 N N Kinetis V series KV10 and KV11: 75 MHz Arm Cortex-M0+ 64/128 KB Flash (32-64 pin) MKV10Z128VFM7,MKV10Z128VLF7,MKV10Z128VLH7,MKV10Z64VFM7,MKV10Z64VLF7,MKV10Z64VLH7,MKV11Z128VFM7,MKV11Z128VLF7,MKV11Z128VLH7,MKV11Z64VFM7,MKV11Z64VLF7,MKV11Z64VLH7 1.1 MB KV11P64M75 N 1434086204055705725994 Fact Sheet 1 /docs/en/fact-sheet/KV1XFS.pdf 2016-10-31 1392416008870714597185 TSP 6 Dec 14, 2017 Fact Sheet Kinetis KV1x Fact Sheet: Cost optimized Arm Cortex-M0+ microcontroller (MCU) family for BLDC/PMSM motor control applications None /docs/en/fact-sheet/KV1XFS.pdf English documents 232726 None 736675474163315314 2022-12-07 N /docs/en/fact-sheet/KV1XFS.pdf Kinetis KV1x: Arm Cortex-M0+ MCUs - BLDC/PMSM motor control /docs/en/fact-sheet/KV1XFS.pdf documents 736675474163315314 Fact Sheet N en None Y pdf 9 N N Kinetis KV1x: Arm Cortex-M0+ MCUs - BLDC/PMSM motor control 232.7 KB KV1XFS N 1392416008870714597185 Release Note 2 /docs/en/release-note/KSDK120KV11RN.pdf 2016-10-31 1436279659417718524307 TSP 7 Jul 7, 2015 Release Note These are the release notes for Kinetis Software Development Kit (KSDK) 1.2.0. They support KV10 and KV11 derivatives with 128 KB and 64 KB of Flash memory. The core None /docs/en/release-note/KSDK120KV11RN.pdf English documents 401772 None 487216834315582133 2022-12-07 N /docs/en/release-note/KSDK120KV11RN.pdf Kinetis SDK v.1.2.0 Release Notes for KV11 Derivatives /docs/en/release-note/KSDK120KV11RN.pdf documents 487216834315582133 Release Note N en None Y pdf 0 N N Kinetis SDK v.1.2.0 Release Notes for KV11 Derivatives 401.8 KB KSDK120KV11RN N 1436279659417718524307 /docs/en/release-note/MQXKSDK120KV11RN.pdf 2016-10-31 1436280236273712619693 TSP 8 Jul 7, 2015 Release Note These are the Release Notes for the MQX<sup>™</sup> RTOS for Kinetis SDK 1.2.0 TWR-KV11Z75M Tower<sup>®</sup> System module using the MKV11Z128VLH7 microcontroller. NXP CPU MKV11Z128VLH7 belongs to the Kinetis K series processor family of 32-bit microcontrollers. The software is based on Kinetis SDK (KSDK) version 1.2.0. It includes the full set of RTOS services and a standard set of peripheral drivers. None /docs/en/release-note/MQXKSDK120KV11RN.pdf English documents 610559 None 487216834315582133 2022-12-07 N /docs/en/release-note/MQXKSDK120KV11RN.pdf MQX™ RTOS Release Notes for Kinetis SDK 1.2.0 KV11 Freescale Platforms /docs/en/release-note/MQXKSDK120KV11RN.pdf documents 487216834315582133 Release Note N en None Y pdf 0 N N MQX™ RTOS Release Notes for Kinetis SDK 1.2.0 KV11 Freescale Platforms 610.6 KB MQXKSDK120KV11RN N 1436280236273712619693 User Guide 3 /secured/assets/documents/en/user-guide/TWRKV11Z75MUG.pdf 2016-10-31 1434130055548718583728 TSP 1 Sep 17, 2015 User Guide User Guide The TWR-KV11Z75M Tower System Module is the entry level member of the Kinetis based Microcontroller family specifically labeled &#8220;Kinetis V-Series&#8221;. On a single chip, the Module combines the processing power of up to 75 MHz Arm&#174; Cortex&#174;-M0+ CPU with up to 128 KB flash, 16 KB RAM, a motor control timer, and an ADC with capability to capture two inputs simultaneously (two current phase measurements), within a period of 800 nanoseconds (ns) to 1 millisecond (ms). Y Registration without Disclaimer /secured/assets/documents/en/user-guide/TWRKV11Z75MUG.pdf English 1248494 None User Guide 2023-06-18 Y /webapp/Download?colCode=TWRKV11Z75MUG TWR-KV11Z75M Tower System Module User’s Guide /secured/assets/documents/en/user-guide/TWRKV11Z75MUG.pdf documents 132339537837198660 User Guide N Y en Extended Y t792 pdf 1 Y N TWR-KV11Z75M Tower System Module User’s Guide 1.2 MB TWRKV11Z75MUG N 1434130055548718583728 /secured/assets/documents/en/user-guide/TWRKV11Z75MQSG.pdf 2016-10-31 1434171693812717769655 TSP 2 Oct 9, 2015 User Guide User Guide The TWR-KV11Z75M Tower<sup>&#174;</sup> System Module is a standalone development kit that can be used in conjunction with the Tower System development platform and the TWR-MC-LV3PH motor control module. To watch a video on how to configure the board, go to nxp.com/TWR-KV10Z32. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/TWRKV11Z75MQSG.pdf English 835738 None User Guide 2023-06-18 Y /webapp/Download?colCode=TWRKV11Z75MQSG TWR-KV11Z75M Tower System Module Quick Start Guide /secured/assets/documents/en/user-guide/TWRKV11Z75MQSG.pdf documents 132339537837198660 User Guide N Y en Extended Y t792 pdf 1 Y N TWR-KV11Z75M Tower System Module Quick Start Guide 835.7 KB TWRKV11Z75MQSG N 1434171693812717769655 /secured/assets/documents/en/user-guide/BLDCAPPACUG.pdf 2016-10-31 1445251806479721433320 TSP 3 Sep 22, 2016 User Guide User Guide This document provides instructions how to run and control a Brushless DC (BLDC) sensorless application with the Freescale Freedom and Tower development boards. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/BLDCAPPACUG.pdf English 3834447 None User Guide 2023-06-18 Y /webapp/Download?colCode=BLDCAPPACUG BLDC Motor Control Reference Solution Package /secured/assets/documents/en/user-guide/BLDCAPPACUG.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 3 Y N BLDC Motor Control Reference Solution Package 3.8 MB BLDCAPPACUG N 1445251806479721433320 true Y Tools
