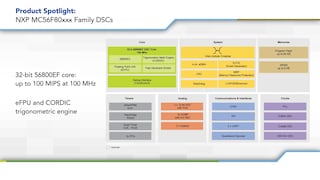

DSCs with Integrated FPU and Trigonometric Math Engine with OPAMP and Quadrature Decoder

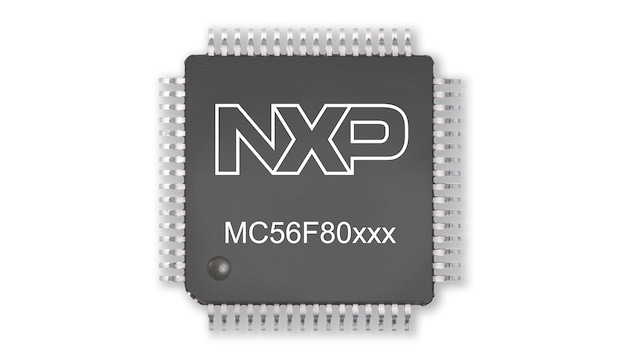

The MC56F80xxx is a digital signal controller (DSC) family based on the high-performance 100 MHz 56800EF DSP core. This DSC family has an integrated FPU and CORDIC / trigonometric math engine that provides high-performance, cost-effective solutions for digital power conversion and motor control applications.
This MC56F80xxx combines the processing power of a DSP and the functionality of an MCU with a flexible set of peripherals to support different applications. It includes advanced high-speed and high-accuracy peripherals such as 8 channel eFlexPWM with 312 ps resolution, dual high-speed 12-bit ADCs, two operational amplifiers, a quadrature decoder and three analog comparators.
Product Details
Features
Processor Complex
- 100 MHz 56800EF DSP core
- Enhanced single-precision floating point math unit (eFPU)
- Coordinate rotation digital compute (CORDIC) engine
- JTAG/EOnCE debug controller
Memory
- 64kB Flash
- 8kB SRAM
System Control
- Intermodule crossbar (support flexible connection among peripherals or GPIOs)
- Event generator (support and/or/nor/xor logic operation and multiple trigger modes)
- Enhanced DMA (support minor and major loop, more flexible data transition and less CPU intervention)
- Memory resource protection
- LVI, POR and brownout reset
- CRC
- Internal and external watchdog
Timers
- Eight channels 312ps high-resolution PWM
- 1x quad timer to support four-channel capture
- 1x quadrature decoder
- 3x 32-bit PIT
Analog
- 2x 12-bit ADC each w/ x2/4 PGA, each up to 1.6MSps sample rate
- 2x operational amplifier, 8MHz GBP, support up to x16 PGA mode
- 3x analog comparator each w/ 8-bit DAC
Communications
- 1x LPI2C, support full PMBus
- 1x SPI
- 2x UART
Packages
- LQFP64
- LQFP48
- LQFP32
- QFN32
Temperatures
- -40 to 125°C
Enablement

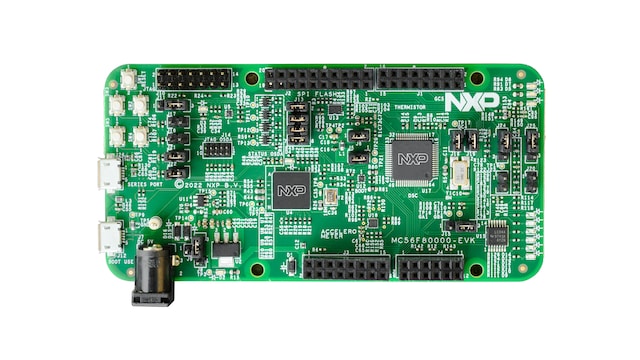

- MC56F80000-EVK - can connect with low-voltage FRDM-LV driver board
- HVP-56F80748 EVK - can connect with high-voltage HVP-MC3PH driver board
- Motor control and digital power reference designs
- CodeWarrior IDE
- Software development kit (SDK)
- GUI Config Tools (Pin, Clock, Peripherals)
- FreeMaster debug tool
- PEMicro Multilink and Cyclone support
Certifications
- IEC60730 Class B Certification
- AEC-Q100
Related products
MC56F826xx and MC56F827xx Digital Signal Controllers
Digital Signal Controllers
Up to 100MHz Digital Signal Controllers with DSASS and Operational Amplifier
Buy/Parametrics
10 results
Include 0 NRND
Part | Order | CAD Model | Status | Budgetary Price excluding tax | Package Termination Count | Package Type | Flash (kB) | RAM (kB) | Operating Frequency [Max] (MHz) | OPAMP | I2C | SPI | GPIO | Total DMA Channels | Ambient Operating Temperature (Min to Max) (℃) | Supply Voltage [Min to Max] (V) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 10K @ US$1.43 | 48 | LQFP48 | 32 | 6 | 100 | 2 | 1 | — | 39 | 4 | -40 to 105 | 2.7 to 3.6 | |||
Active | 10K @ US$1.59 | 48 | LQFP48 | 64 | 8 | 100 | 2 | 1 | — | 39 | 4 | -40 to 105 | 2.7 to 3.6 | |||
Active | 10K @ US$1.66 | 64 | LQFP64 | 64 | 8 | 100 | 2 | 1 | — | 54 | 4 | -40 to 105 | 2.7 to 3.6 | |||
Active | 10K @ US$1.68 | 48 | LQFP48 | 32 | 6 | 100 | 2 | 1 | 1 | 39 | 4 | -40 to 105 | 2.7 to 3.6 | |||
Active | 10K @ US$1.77 | 48 | LQFP48 | 48 | 8 | 100 | 2 | 1 | 1 | 39 | 4 | -40 to 105 | 2.7 to 3.6 | |||
Active | 10K @ US$1.86 | 64 | LQFP64 | 48 | 8 | 100 | 2 | 1 | 1 | 54 | 4 | -40 to 105 | 2.7 to 3.6 | |||
Active | 10K @ US$2.05 | 48 | LQFP48 | 64 | 8 | 100 | 2 | 1 | 1 | 39 | 4 | -40 to 125 | 2.7 to 3.6 | |||
Active | 10K @ US$1.87 | 48 | LQFP48 | 64 | 8 | 100 | 2 | 1 | 1 | 39 | 4 | -40 to 105 | 2.7 to 3.6 | |||
Active | 10K @ US$2.15 | 64 | LQFP64 | 64 | 8 | 100 | 2 | 1 | 1 | 54 | 4 | -40 to 125 | 2.7 to 3.6 | |||
Active | 10K @ US$1.95 | 64 | LQFP64 | 64 | 8 | 100 | 2 | 1 | 1 | 54 | 4 | -40 to 105 | 2.7 to 3.6 |
