DSC Multilink

DSC-MULTILINK Active

Roll over image to zoom in

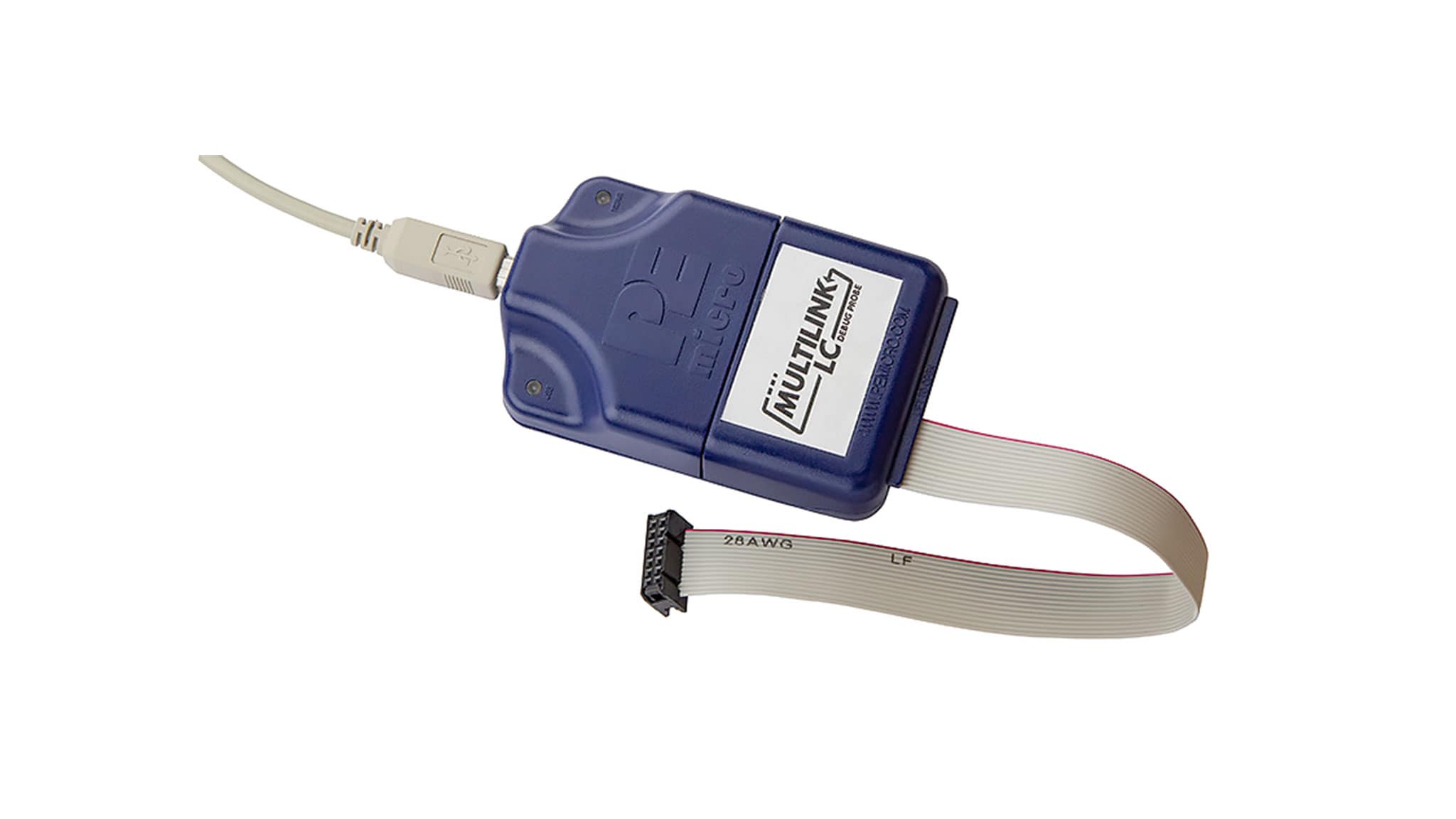

PEmicro’s DSC Multilink is a debug interface which accelerates the debug and flash programming process, saving valuable development time. The Multilink provides access to the debug modes of NXP’s DSC MCUs by allowing communications between the target device and a laptop / PC. The Multilink connects the target’s standard debug header to the laptop / PC’s USB port.

  • The DSC Multilink’s speed, reliability, and price make it ideal for rapid, cost-effective development
  • DSC Multilink debug probes are natively supported by recent versions of CodeWarrior®
  • Currently, CodeWarrior(r) 11.2 only supports MC56F80xxx. All the other DSC families are still using CodeWarrior(r) 11.1

Product Details

Supported Devices

Processors and Microcontrollers

32-Bit 56800EX/EF Core

  • MC56F82xxx: MC56F826xx and MC56F827xx Digital Signal Controllers
  • MC56F83xxx: Performance Level Digital Signal Controllers, USB FS OTG, CAN FD
  • MC56F84xxx: Digital Signal Controllers
  • MC56F81xxx: Up to 100MHz Digital Signal Controllers with DSASS and Operational Amplifier
  • MC56F80xxx: DSCs with Integrated FPU and Trigonometric Math Engine with OPAMP and Quadrature Decoder

Features

Power Management

  • Multivoltage support for targets ranging from 1.8 to 5 volts

Connectivity

  • Fast, hassle-free USB 2.0 communications interface
  • Type A to Type B male-to-male USB cable connects the interface to PC

Debug

  • Debugging via NXP Codewarrior for Microcontrollers

General

  • Includes a 14-pin ribbon cable for connection to DSC target debug headers
  • Supports Program and Data Flash, Securing and Unsecuring

Buy Options

DSC-MULTILINK-Image

Click to expand

  • $99.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 4
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
