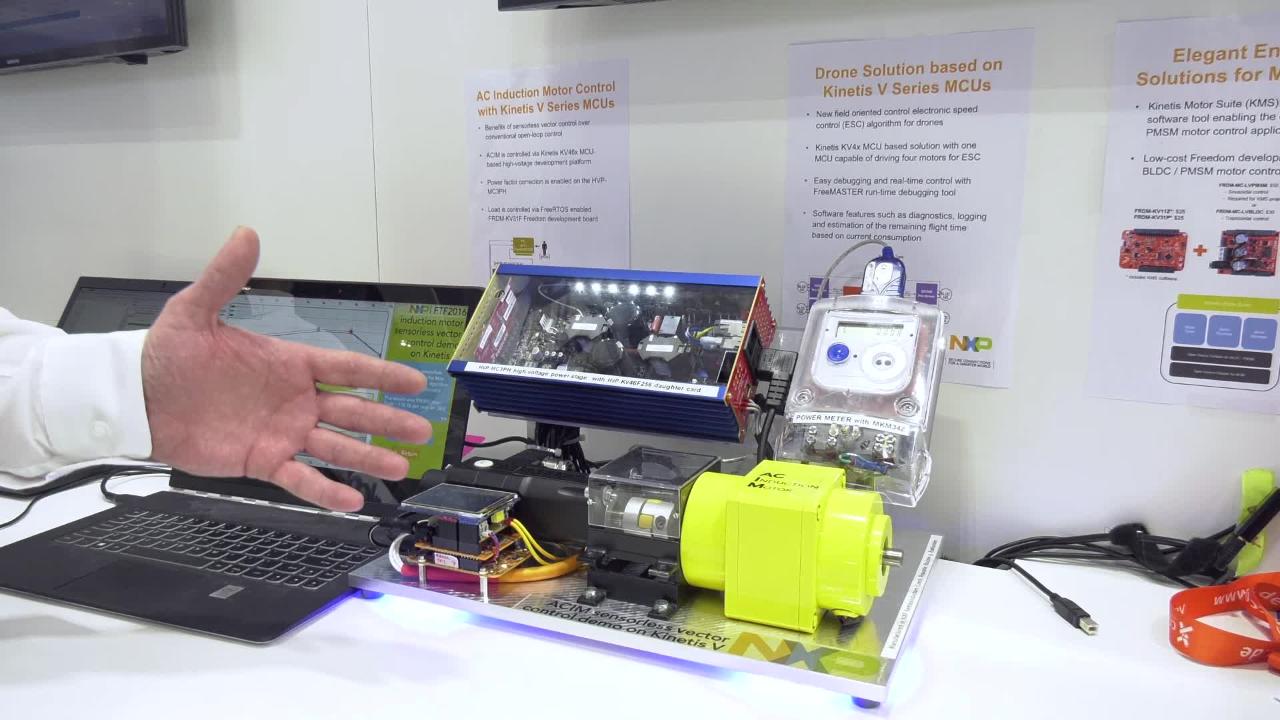

The Kinetis^® KV4x family of MCUs is a high-performance solution offering exceptional precision, sensing, and control for some of the most demanding applications in motor and power control. Built upon the Arm^® Cortex^®-M4 core running at 168 MHz with DSP and floating point unit, it features advanced high-speed and high-accuracy peripherals such as high-resolution pulse-width modulation (PWM) with 312 picosecond resolution, dual 12-bit analog-to-digital converters (ADCs) sampling at 4.1 mega samples per second (MSPS), a total of 30 PWM channels for support of multi-motor systems and dual FlexCAN modules. To maximize execution performance a 128-bit wide flash interface is utilized. The Kinetis KV4x MCU family is supported by a comprehensive enablement suite from NXP^® and third-party resources including reference designs, software libraries, and motor configuration tools.

Data Sheet

Reference Manual

Product Details

Block Diagram

KV4x MCU

Get diagram PDF

Features

168 MHz Cortex-M4 core with DSP, floating point unit – improves performance in math-intensive applications (e.g., processing of sensorless FOC (field oriented control) algorithms)
128-bit wide flash interface with a cache to minimize the number of wait states while executing fast control loops
2x 12-bit, 16-channel ADCs with PGAs – 4.1 MSPS ideal for digital power conversion or for motor control applications
Up to 12 channel eFlexPWM – up to 312ps resolution for demanding digital power conversion applications
Up to 2 x 8-channel and 1 x 2-channel programmable FlexTimers – high-accuracy PWM generation with integrated power factor correction or speed sensor decoder (incremental decoder/hall sensor)
Quadrature encoder/decoder
Up to 2 FlexCAN modules – high-speed, high-reliability industrial communication
Broad family scalability with hardware and software compatibility – easy migration to more performance, memory and feature integration within the Kinetis^® V series

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

5 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Models
BSDL Model Files for KV4x 100QFP

BSDLRev 0Oct 27, 2021 10:43:00KV4X_100QFP_BSDL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
IBIS Model file for KV4X 100QFP

IBSRev 0Oct 20, 2021 16:19:00KV4X_100QFP
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
BSDL Model Files for KV4x 64QFP

BSDLRev 0Oct 27, 2021 10:43:00KV4X_100QFP_BSDL
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Models
IBIS Model file for KV4X 64QFP

IBSRev 0Oct 20, 2021 16:19:00KV4X_64QFP
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
Kinetis^® Symbols, Footprints and Models

INTERNALRev 1.0Nov 27, 2017 11:23:001 KBCAD-SYMBOLFOOTPRINTS

Download

Hardware

Quick reference to our board types.

1-5 of 20 hardware offerings

Evaluation and Development Boards

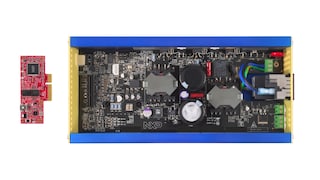

High-Voltage Development PlatformFeatured

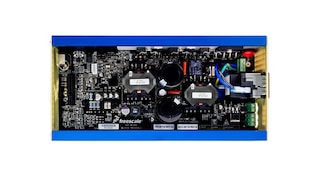

HVP-MC3PH
Evaluation and Development Boards
Low-Voltage, 3-Phase Motor Control Tower^® System ModuleFeatured

TWR-MC-LV3PH
Evaluation and Development Boards

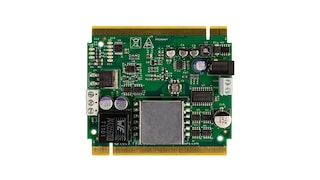

Low-Voltage, Full-Bridge DC-DC Switch Mode Power Supply Tower System ModuleFeatured

TWR-SMPS-LVFB
Additional hardware available. View our featured partner solutions.
Evaluation and Development Boards
Kinetis KV4x Family Tower System ModuleFeatured

TWR-KV46F150M
Complete Solution
K60 3-Phase PMSM Sensorless Vector Control Reference Design

RD3PHASEPMSMSVCK60
Emulators, Probes, and Programmers
Universal Multilink Development Interface

UMultilink
Emulators, Probes, and Programmers
MCU-Link Debug Probe

MCU-LINK
Emulators, Probes, and Programmers
LPC-Link2

OM13054
Emulators, Probes, and Programmers
Universal Multilink FX High-Speed Development Interface

U-MULTILINK-FX
Emulators, Probes, and Programmers
PEmicro Cyclone programmer

CYCLONE
Emulators, Probes, and Programmers
PEmicro Cyclone FX programmer

CYCLONE-FX
Emulators, Probes, and Programmers
MCU-Link Pro Debug Probe

MCU-LINK-PRO
Evaluation and Development Boards
Digital LLC converter development board

HVP-LLC
Evaluation and Development Boards
NXP^® Freedom Development Platform for Low-Voltage, 3-Phase BLDC Motor Control

FRDM-MC-LVBLDC
Evaluation and Development Boards
MCU-LINK-MR Debug Probe with USB-C, Serial and Mobile Robotics Interfaces

MCU-LINK-MR
Reference Design
KV Series Quad Motor Control

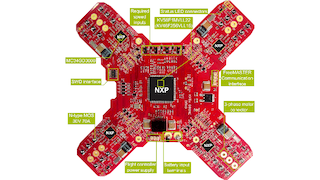

KINETIS-DRONE-REFERENCE-DESIGN
Reference Design
KV Series Full-Bridge DC-DC Switch Mode Power Supply (SMPS)

FULL-BRIDGE-SMPS
Reference Design

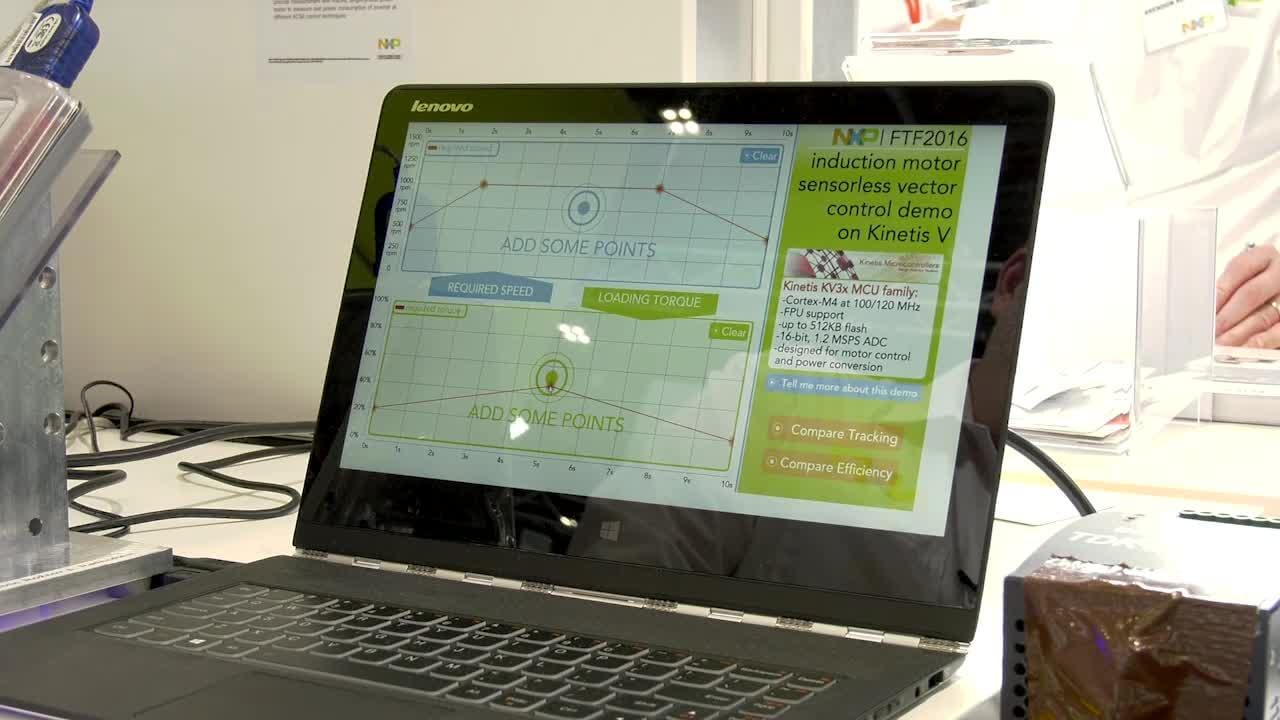

KV Series 3-Phase AC Induction Motor Control

THREE-PHASE-AC-INDUCTION
Reference Design
KV46 Digital LLC Converter Reference Design

LLC-RESONANT-CONVERTER
Reference Design
3-Phase PMSM Control

PERMANENT-MAGNET-MOTOR

Show All

4 hardware offerings

Evaluation and Development Boards

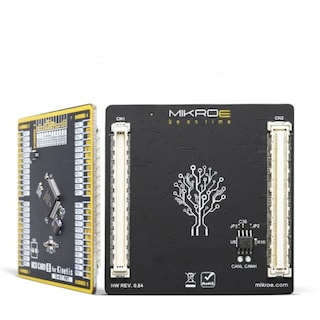

MCU CARD 5 for Kinetis MKV42F64VLH16
