MC56F8006 and MCF56F8002 Digital Signal Controllers

56F800x Active

The NXP® MC56F800x family of digital signal controllers (DSCs) offer the functionality of a microcontroller with a flexible set of peripherals. The entry-level MC56F8006 and MCF56F8002 DSCs provide cost-effective solutions for mathematically intensive, power-sensitive, real-time control applications.

  • Integrated peripheral set improves performance while reducing external component count and overall costs
  • Includes sophisticated power management features
  • Allows for straightforward generation of efficient, compact DSP and control code

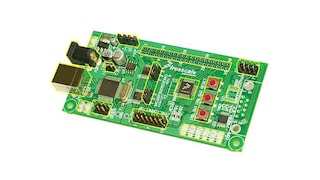

  • Cost-effective development tools simplify and accelerate time-to-market

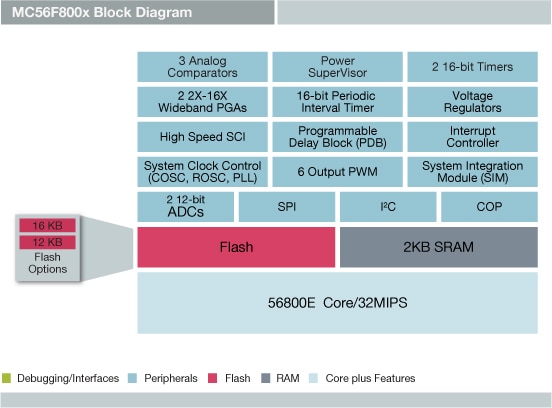

Block Diagram

MC56F800x Digital Signal Controller

NXP<sup>&#174;</sup> MC56F800x Digital Signal Controller Block Diagram
Get diagram PDF

Features

  • Single-cycle 16 × 16-bit parallel multiply-accumulate module (MAC)
  • Four 36-bit accumulators, including extension bits
  • Two 2x-16x PGAs (programmable gain amplifiers)
  • Three analog comparators
  • Two 12-bit (ADCs)
  • Six output pulse width modulation with programmable fault capability
  • Two 16-bit timers, one 16-bit periodic interval timer, programmable delay timer
  • Ultra-low-power operation (nine different power modes)
  • This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch

Buy/Parametrics

‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
‌
‌

‌
‌
‌
‌
‌
‌
N true 0 PSP56F800xen 37 Application Note Application Note t789 16 Application Note Software Application Note Software t783 3 Data Sheet Data Sheet t520 1 Errata Errata t522 2 Fact Sheet Fact Sheet t523 1 Product Brief Product Brief t532 1 Product Change Notice Product Change Notice t526 2 Reference Manual Reference Manual t877 3 Technical Notes Technical Notes t521 2 User Guide User Guide t792 6 en_US 7 1 2 English The 56F8006 / 56F8002 is a member of the 56800E core-based family of digital signal controllers (DSCs). It combines, on a single chip, the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals to create an extremely cost-effective solution. The 56F8006 / 56F8002 also offers up to 40 general-purpose input/output (GPIO) lines, depending on peripheral configuration. 1236789524430722781919 PSP 4.3 MB None None documents None 1236789524430722781919 /docs/en/reference-manual/MC56F8006RM.pdf 4348681 /docs/en/reference-manual/MC56F8006RM.pdf MC56F8006RM N N 2009-03-11 MC56F8006 / MC56F8002 - Reference Manual /docs/en/reference-manual/MC56F8006RM.pdf /docs/en/reference-manual/MC56F8006RM.pdf Reference Manual N Y 500633505221135046 2022-12-07 pdf N en Nov 29, 2011 Reference Manual t877 Reference Manual Reference Manual Y N MC56F8006 / MC56F8002 - Reference Manual 2 4 English MC56F8006: This document applies to parts marked with 2M53M. The 56F8006/56F8002 is a member of the 56800E core-based family of digital signal controllers (DSCs). It includes many peripherals that are especially useful for cost-sensitive applications, including: Industrial control and Home appliances. 1236792949342727121705 PSP 2.1 MB None None documents None 1236792949342727121705 /docs/en/data-sheet/MC56F8006.pdf 2124724 /docs/en/data-sheet/MC56F8006.pdf MC56F8006 N N 2009-03-11 MC56F8006 / MC56F8002 Digital Signal Controller - Data Sheet /docs/en/data-sheet/MC56F8006.pdf /docs/en/data-sheet/MC56F8006.pdf Data Sheet N Y 980000996212993340 2022-12-07 pdf N en Jul 15, 2011 Data Sheet t520 Data Sheet Data Sheet Y N MC56F8006 / MC56F8002 Digital Signal Controller - Data Sheet 3 0 English The devices in the MC56F8006/MC56F8002 series combine, on a single chip, the processing power of a digital signal processor (DSP) and the functionality of a microcontroller unit (MCU) with a flexible set of peripherals to create an extremely cost-effective solution. Any signal pin associated with these peripherals can also be used for general-purpose input/output (GPIO). Features include an extremely low-power mode and the ability to shut down each peripheral independently. 1236793405915731246335 PSP 283.1 KB None None documents None 1236793405915731246335 /docs/en/product-brief/MC56F8006PB.pdf 283119 /docs/en/product-brief/MC56F8006PB.pdf MC56F8006PB N 2009-03-11 MC56F8006/MC56F8002 Digital Signal Controller - Product Brief /docs/en/product-brief/MC56F8006PB.pdf /docs/en/product-brief/MC56F8006PB.pdf Product Brief N Y 899114358132306053 2022-12-07 pdf en Mar 11, 2009 Product Brief t532 Product Brief Product Brief Y N MC56F8006/MC56F8002 Digital Signal Controller - Product Brief 4 4 English This document reports errata information for the 2M53M maskset for the MC56F8006 devices. These parts are marked with 2M53M. 1236885607615702538622 PSP 31.7 KB None None documents None 1236885607615702538622 /docs/en/errata/MC56F8006E.pdf 31720 /docs/en/errata/MC56F8006E.pdf MC56F8006E N N 2009-03-12 MC56F8006E, 56F8006 Digital Signal Controller: Chip Errata - Errata /docs/en/errata/MC56F8006E.pdf /docs/en/errata/MC56F8006E.pdf Errata N Y 155452329886410597 2022-12-07 pdf N en Apr 22, 2014 Errata t522 Errata Errata Y N MC56F8006E, 56F8006 Digital Signal Controller: Chip Errata - Errata 5 4 English This document reports errata information on the 2M53M maskset. These parts are marked with 2M53M. 1236885608104731854957 PSP 31.5 KB None None documents None 1236885608104731854957 /docs/en/errata/MC56F8002E.pdf 31489 /docs/en/errata/MC56F8002E.pdf MC56F8002E N N 2009-03-12 MC56F8002E, 56F8002 Digital Signal Controller: Chip Errata - Errata /docs/en/errata/MC56F8002E.pdf /docs/en/errata/MC56F8002E.pdf Errata N Y 155452329886410597 2022-12-07 pdf N en May 22, 2014 Errata t522 Errata Errata Y N MC56F8002E, 56F8002 Digital Signal Controller: Chip Errata - Errata 6 2 English The devices in the MC56F8006/2 series combine, on a single chip, the processing power of a digital signal processor (DSP) and the functionality of a microcontroller unit (MCU) with a flexible set of peripherals to create an extremely cost-effective solution. 1241029883602720396039 PSP 248.0 KB None None documents None 1241029883602720396039 /docs/en/fact-sheet/MC56F8006FS.pdf 247986 /docs/en/fact-sheet/MC56F8006FS.pdf MC56F8006FS N 2009-04-29 MC56F8006/2 Fact Sheet /docs/en/fact-sheet/MC56F8006FS.pdf /docs/en/fact-sheet/MC56F8006FS.pdf Fact Sheet N Y 736675474163315314 2022-12-07 pdf en Oct 23, 2009 Fact Sheet t523 Fact Sheet Fact Sheet N N MC56F8006/2 Fact Sheet 7 3 English This manual describes the central processing unit of the DSP56800E and DSP56800EX in detail. The 32-bit DSP56800EX core represents the next step in the evolution of NXP&#8217;s families of digital signal controllers (DSCs). The DSP56800EX core extends the capabilities of the DSP56800E core architecture. Both the DSP56800EX and DSP56800E cores provide low-cost, low-power computing, combining DSC power and parallelism with MCU-like programming simplicity. C968463319800 PSP 8.9 MB Registration without Disclaimer None documents Extended C968463319800 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf 8861960 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf DSP56800ERM Y N 2016-10-31 DSP56800E and DSP56800EX - Reference Manual /webapp/Download?colCode=DSP56800ERM /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf Reference Manual N Y 500633505221135046 2022-12-07 pdf Y en Sep 22, 2011 Reference Manual t877 Reference Manual Reference Manual Y N DSP56800E and DSP56800EX - Reference Manual false en_US en Reference Manual Reference Manual 1 8 0 Chinese 1241515381526714393201zh PSP 957.2 KB Registration without Disclaimer None documents Extended 1241515381526714393201 /secured/assets/documents/zh/reference-manual/DRM108.pdf 957164 /secured/assets/documents/zh/reference-manual/DRM108.pdf DRM108 documents Y N 2016-10-31 BLDC Sensorless Reference Design Using MC56F8006 - Reference Manual /secured/assets/documents/zh/reference-manual/DRM108.pdf https://www.nxp.com.cn/webapp/Download?colCode=DRM108&docLang=zh Reference Manual N 500633505221135046 2022-12-07 zh Apr 30, 2009 500633505221135046 Reference Manual Y N 采用MC56F8006的无传感器无刷直流电机参考设计 - 参考手册 0 English This design reference manual describes the design of a sensorless 3-phase brushless DC (BLDC) motor drive based on NXP&#8217;s MC56F8006 dedicated motor-control device. 1241515381526714393201 PSP 957.2 KB Registration without Disclaimer None documents Extended 1241515381526714393201 /secured/assets/documents/en/reference-manual/DRM108.pdf 957164 /secured/assets/documents/en/reference-manual/DRM108.pdf DRM108 documents Y N 2016-10-31 BLDC Sensorless Reference Design Using MC56F8006 - Reference Manual /webapp/Download?colCode=DRM108 /secured/assets/documents/en/reference-manual/DRM108.pdf Reference Manual N 500633505221135046 2022-12-07 pdf Y en Apr 30, 2009 500633505221135046 Reference Manual Y N BLDC Sensorless Reference Design Using MC56F8006 - Reference Manual Application Note Application Note 16 9 0 Chinese This application note gives guidance about how to relocate codes/libraries to RAM. The PROM-to-PRAM tool in start-up code provides a way copy codes to RAM while DSC initialization, if this tool is unavailable. 1435125086256739018745zh PSP 980.9 KB None None documents None 1435125086256739018745 /docs/zh/application-note/AN5143.pdf 980897 /docs/zh/application-note/AN5143.pdf AN5143 documents N N 2016-10-31 Relocate Subroutines to PRAM for MC56F827xx DSC /docs/zh/application-note/AN5143.pdf /docs/zh/application-note/AN5143.pdf Application Note N 645036621402383989 2022-12-07 zh Jun 23, 2015 645036621402383989 Application Note Y N 将MC56F827xx DSC的子例程重定位到PRAM 0 English AN5143SW.zip /docs/en/application-note-software/AN5143SW.zip /docs/en/application-note-software/AN5143SW.zip This application note gives guidance about how to relocate codes/libraries to RAM. The PROM-to-PRAM tool in start-up code provides a way copy codes to RAM while DSC initialization, if this tool is unavailable. 1435125086256739018745 PSP 980.9 KB None None documents None 1435125086256739018745 /docs/en/application-note/AN5143.pdf 980897 /docs/en/application-note/AN5143.pdf AN5143 documents N N 2016-10-31 Relocate Subroutines to PRAM for MC56F827xx DSC /docs/en/application-note/AN5143.pdf /docs/en/application-note/AN5143.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jun 23, 2015 645036621402383989 Application Note N Relocate Subroutines to PRAM for MC56F827xx DSC 10 0 English Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. 1370013855832696188368 PSP 2.2 MB Registration without Disclaimer None documents Extended 1370013855832696188368 /secured/assets/documents/en/application-note/AN4752.pdf 2220944 /secured/assets/documents/en/application-note/AN4752.pdf AN4752 documents Y N 2016-10-31 AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /webapp/Download?colCode=AN4752 /secured/assets/documents/en/application-note/AN4752.pdf Application Note N 645036621402383989 2024-07-15 pdf Y en May 31, 2013 645036621402383989 Application Note Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 11 0 English Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. 1369937932059742568603 PSP 477.3 KB None None documents None 1369937932059742568603 /docs/en/application-note/AN4753.pdf 477314 /docs/en/application-note/AN4753.pdf AN4753 documents N N 2016-10-31 AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf /docs/en/application-note/AN4753.pdf Application Note N 645036621402383989 2024-07-15 pdf N en May 30, 2013 645036621402383989 Application Note Y N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 12 1 English This Application Note describes how to use the MED-EKG and Kinetis MCU Tower<sup>&#174;</sup> development board to obtain an electrocardiogram signal and measure heart rate 1308089702903720512700 PSP 2.1 MB None None documents None 1308089702903720512700 /docs/en/application-note/AN4323.pdf 2136315 /docs/en/application-note/AN4323.pdf AN4323 documents N N 2016-10-31 Freescale Solutions for ECG and Heart Rate Monitor /docs/en/application-note/AN4323.pdf /docs/en/application-note/AN4323.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 17, 2013 645036621402383989 Application Note Y N Freescale Solutions for ECG and Heart Rate Monitor 13 0 English AN4701: This application note aims to describe the Qi communication data demodulation design for wireless charger transmitter with MC56F8006 digital signal controller (DSC) including Qi communication interface, demodulation circuits design, and demodulation software design. 1362546272212681791051 PSP 1.0 MB None None documents None 1362546272212681791051 /docs/en/application-note/AN4701.pdf 1009471 /docs/en/application-note/AN4701.pdf AN4701 documents N N 2016-10-31 AN4701, Demodulating Communication Signals of Qi-Compliant Low-Power Wireless Charger Using MC56F8006 DSC - Application Notes /docs/en/application-note/AN4701.pdf /docs/en/application-note/AN4701.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Mar 23, 2013 645036621402383989 Application Note Y N AN4701, Demodulating Communication Signals of Qi-Compliant Low-Power Wireless Charger Using MC56F8006 DSC - Application Notes 14 1 Chinese 1356078899981706765649zh PSP 4.0 MB Registration without Disclaimer None documents Extended 1356078899981706765649 /secured/assets/documents/zh/application-note/AN4642.pdf 3990007 /secured/assets/documents/zh/application-note/AN4642.pdf AN4642 documents Y N 2016-10-31 Motor Control Application Tuning (MCAT) Tool for 3-Phase PMSM /secured/assets/documents/zh/application-note/AN4642.pdf https://www.nxp.com.cn/webapp/Download?colCode=AN4642&docLang=zh Application Note N 645036621402383989 2024-07-19 zh Nov 3, 2013 645036621402383989 Application Note Y N 用于三相永磁同步电机(PMSM)的电机控制应用参数整定(MCAT)工具 1 English This application note describes an NXP motor control tuning solution known as Motor Control Application Tuning (MCAT) Tool. MCAT is a graphical tool dedicated to motor control developers and the operators of modern electrical drives. The main feature of proposed approach is automatic calculation and real-time tuning of selected control structure parameters. 1356078899981706765649 PSP 4.0 MB Registration without Disclaimer None documents Extended 1356078899981706765649 /secured/assets/documents/en/application-note/AN4642.pdf 3990007 /secured/assets/documents/en/application-note/AN4642.pdf AN4642 documents Y N 2016-10-31 Motor Control Application Tuning (MCAT) Tool for 3-Phase PMSM /webapp/Download?colCode=AN4642 /secured/assets/documents/en/application-note/AN4642.pdf Application Note N 645036621402383989 2024-07-19 pdf Y en Mar 11, 2013 645036621402383989 Application Note Y N Motor Control Application Tuning (MCAT) Tool for 3-Phase PMSM 15 0 English This application note deals with an implementation of BLDC ceiling fan system using MC56F8006 based&#13;&#10;on vector control. 1350278489772721340164 PSP 1.2 MB None None documents None 1350278489772721340164 /docs/en/application-note/AN4612.pdf 1212480 /docs/en/application-note/AN4612.pdf AN4612 documents N N 2012-10-14 Sensorless Sinusoidal Vector Control of BLDC Ceiling Fan on MC56F8006 /docs/en/application-note/AN4612.pdf /docs/en/application-note/AN4612.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Oct 14, 2012 645036621402383989 Application Note Y N Sensorless Sinusoidal Vector Control of BLDC Ceiling Fan on MC56F8006 16 0 English AN4490: This application note shows how to build a general Field Oriented Control (FOC) algorithm code structure, based on the 56F8006 using a Graphic Configuration Tool (GCT) called the DSP56800E_Quick_Start, integrated in CodeWarrior. The configuration of the 56F8006 in this document is based on a 3-Phase BLDC/PMSM Low-Voltage Motor Control Drive Board together with the MC56F8006 Controller Daughter Board. 1333185462579712640090 PSP 776.2 KB None None documents None 1333185462579712640090 /docs/en/application-note/AN4490.pdf 776163 /docs/en/application-note/AN4490.pdf AN4490 documents N N 2016-10-31 AN4490, How to Build an FOC Code Structure Based on the 56F8006 Using a Quick-Start Tool - Application Notes /docs/en/application-note/AN4490.pdf /docs/en/application-note/AN4490.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Mar 30, 2012 645036621402383989 Application Note N AN4490, How to Build an FOC Code Structure Based on the 56F8006 Using a Quick-Start Tool - Application Notes 17 0 English This application note details two alternative methods for resetting an NXP MC56F8300 family device besides the nominal reset pin function, the nominal JTAG sequences, and the nomincal power on reset. The nominal methods are not treated in this document. 1326412612743704933704 PSP 225.5 KB None None documents None 1326412612743704933704 /docs/en/application-note/AN4439.pdf 225470 /docs/en/application-note/AN4439.pdf AN4439 documents N N 2012-01-12 Recovering MC56F8300 Family Devices from Extreme RFI /docs/en/application-note/AN4439.pdf /docs/en/application-note/AN4439.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Jan 12, 2012 645036621402383989 Application Note Y N Recovering MC56F8300 Family Devices from Extreme RFI 18 0 English This Application Note demonstrates the field-oriented control (FOC) of 2 permanent magnet synchronous motors (PMSM) with Kinetis K70 microcontroller (MCU) 1322043390810719523609 PSP 2.4 MB None None documents None 1322043390810719523609 /docs/en/application-note/AN4407.pdf 2444392 /docs/en/application-note/AN4407.pdf AN4407 documents N N 2011-11-23 Dual Motor Control application (PMSM) with Kinetis<sup>&#174;</sup> K70 /docs/en/application-note/AN4407.pdf /docs/en/application-note/AN4407.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 22, 2011 645036621402383989 Application Note Y N Dual Motor Control application (PMSM) with Kinetis<sup>&#174;</sup> K70 19 0 English This Application Note describes the synchronization between the FlexTimer (FTM) and ADC of Kinetis K40 microcontroller (MCU) targeting motor control 1322044226768699391469 PSP 792.7 KB None None documents None 1322044226768699391469 /docs/en/application-note/AN4410.pdf 792680 /docs/en/application-note/AN4410.pdf AN4410 documents N N 2016-10-31 FlexTimer and ADC synchronization for Field-Oriented-Control /docs/en/application-note/AN4410.pdf /docs/en/application-note/AN4410.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Nov 22, 2011 645036621402383989 Application Note Y N FlexTimer and ADC synchronization for Field-Oriented-Control 20 1 English DRM125: The intent of this document is to specify the features of the Activity Monitor reference design. An activity monitor is a small device that records information about user's physical activity patterns. The device should normally run continuously for long periods of time. Activity monitors can frequently interpret and summarize the recorded data. Devices Supported: MCF51MM256, MC34673, MC13202, MMA7660. 1316086641657707735143 PSP 7.3 MB None None documents None 1316086641657707735143 /docs/en/application-note/DRM125.pdf 7288632 /docs/en/application-note/DRM125.pdf DRM125 documents N N 2016-10-31 DRM125, Activity Monitor Design Reference Manual - Application Notes /docs/en/application-note/DRM125.pdf /docs/en/application-note/DRM125.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Sep 20, 2011 645036621402383989 Application Note Y N DRM125, Activity Monitor Design Reference Manual - Application Notes 21 1 English AN3814SW.zip /docs/en/application-note-software/AN3814SW.zip /docs/en/application-note-software/AN3814SW.zip NXP offers serial bootloaders for digital signal controllers. Because MC56F800x/801x/802x/803x devices have critical flash resources, these serial bootloaders are designed to load application code only once, so as to allow applications to use the full flash memory space. However, some customers require the serial bootloader to stay in flash forever. This serial bootloader is a so-called static bootloader. This document describes the static serial bootloader and its requirements when used in applicatio 1239303121762685979159 PSP 509.5 KB None None documents None 1239303121762685979159 /docs/en/application-note/AN3814.pdf 509462 /docs/en/application-note/AN3814.pdf AN3814 documents N 2009-04-09 Static Serial Bootloader for MC56F800x/801x/802x/803x /docs/en/application-note/AN3814.pdf /docs/en/application-note/AN3814.pdf Application Note N 645036621402383989 2022-12-07 pdf en Apr 21, 2010 645036621402383989 Application Note Y N Static Serial Bootloader for MC56F800x/801x/802x/803x 22 0 English This application note introduces the new MC56F8006 digital signal and controller (DSC) features that include pulse width modulators (PWM), programmable delay blocks (PDB), programmable gain amplifiers (PGA), and analog-to-digital converters (ADC). 1256848328134720918878 PSP 644.6 KB None None documents None 1256848328134720918878 /docs/en/application-note/AN3844.pdf 644640 /docs/en/application-note/AN3844.pdf AN3844 documents N 2009-10-29 MC56F8006 New Features: PDB, PGA, ADC, and PWM /docs/en/application-note/AN3844.pdf /docs/en/application-note/AN3844.pdf Application Note N 645036621402383989 2022-12-07 pdf en Oct 29, 2009 645036621402383989 Application Note Y N MC56F8006 New Features: PDB, PGA, ADC, and PWM 23 0 English AN3815SW.zip /docs/en/application-note-software/AN3815SW.zip /docs/en/application-note-software/AN3815SW.zip This document describes a simple application in which a DSC (digital signal controller) network is used to drive a high-power RGB LED matrix. The MC56F8006 is the NXP device selected for this application. The high-speed serial peripheral featured on the DSC ensures fast communication between the network nodes. The color matching control algorithm is managed by the analog-to-digital converter, programmable gain amplifier, and PWM modules. 1240006938656714032709 PSP 1.9 MB None None documents None 1240006938656714032709 /docs/en/application-note/AN3815.pdf 1915937 /docs/en/application-note/AN3815.pdf AN3815 documents N 2009-04-17 Implementing a Modular High Brightness RGB LED Network /docs/en/application-note/AN3815.pdf /docs/en/application-note/AN3815.pdf Application Note N 645036621402383989 2022-12-07 pdf en Apr 28, 2009 645036621402383989 Application Note Y N Implementing a Modular High Brightness RGB LED Network 24 0 English AN3843: The NXP MC56F8006 is a cost-effective, low-power DSC product which meets the requirements of green power conversion based on all-digital control. This application note describes the implementation of a single-phase two-channel interleaved PFC converter based on the MC56F8006 device, and provides a reference for customers who require cost-effective and high performance/price ratio solutions. 1239900514274704966684 PSP 451.1 KB None None documents None 1239900514274704966684 /docs/en/application-note/AN3843.pdf 451085 /docs/en/application-note/AN3843.pdf AN3843 documents N N 2016-10-31 AN3843, Single Phase Two-Channel Interleaved PFC Converter Using MC56F8006 - Application Notes /docs/en/application-note/AN3843.pdf /docs/en/application-note/AN3843.pdf Application Note N 645036621402383989 2022-12-07 pdf N en Apr 16, 2009 645036621402383989 Application Note Y N AN3843, Single Phase Two-Channel Interleaved PFC Converter Using MC56F8006 - Application Notes User Guide User Guide 6 25 0 English 56800Ex_MLIB: This reference manual describes the Math Library (MLIB) for the NXP&#13;&#10;56F800E(X) family of Digital Signal Controllers. This library contains optimized&#13;&#10;functions. 1392284325575706874882 PSP 1.7 MB None None documents None 1392284325575706874882 /docs/en/user-guide/56800Ex_MLIB.pdf 1747915 /docs/en/user-guide/56800Ex_MLIB.pdf 56800EX_MLIB documents N N 2014-02-25 56800Ex_MLIB, Math Library User&#8217;s Guide /docs/en/user-guide/56800Ex_MLIB.pdf /docs/en/user-guide/56800Ex_MLIB.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Feb 24, 2014 132339537837198660 User Guide Y N 56800Ex_MLIB, Math Library User&#8217;s Guide 26 0 English 56800Ex_GFLIB: This reference manual describes the General Functions Library (GFLIB) for the NXP 56F800E(X) family of Digital Signal Controllers. This library contains&#13;&#10;optimized functions. 1392283096324684362575 PSP 1.1 MB None None documents None 1392283096324684362575 /docs/en/user-guide/56800Ex_GFLIB.pdf 1125843 /docs/en/user-guide/56800Ex_GFLIB.pdf 56800EX_GFLIB documents N N 2014-02-25 56800Ex_GFLIB, General Functions Library User&#8217;s Guide /docs/en/user-guide/56800Ex_GFLIB.pdf /docs/en/user-guide/56800Ex_GFLIB.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Feb 24, 2014 132339537837198660 User Guide Y N 56800Ex_GFLIB, General Functions Library User&#8217;s Guide 27 0 English 56800Ex_MCLIB: This reference manual describes the Motor Control Library (MCLIB) for the&#13;&#10;NXP 56F800E(X) family of Digital Signal Controllers. This library contains&#13;&#10;optimized functions. 1392283879475715001970 PSP 1.8 MB None None documents None 1392283879475715001970 /docs/en/user-guide/56800Ex_MCLIB.pdf 1812237 /docs/en/user-guide/56800Ex_MCLIB.pdf 56800EX_MCLIB documents N N 2014-02-25 56800Ex_MCLIB, Motor Control Library User&#8217;s Guide /docs/en/user-guide/56800Ex_MCLIB.pdf /docs/en/user-guide/56800Ex_MCLIB.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Feb 24, 2014 132339537837198660 User Guide Y N 56800Ex_MCLIB, Motor Control Library User&#8217;s Guide 28 0 English 56800Ex_ACLIB: This reference manual describes the Advanced Control Library (ACLIB) for the&#13;&#10;NXP 56F800E(X) family of Digital Signal Controllers. This library contains&#13;&#10;optimized functions. 1392280291574720569874 PSP 869.9 KB None None documents None 1392280291574720569874 /docs/en/user-guide/56800Ex_ACLIB.pdf 869899 /docs/en/user-guide/56800Ex_ACLIB.pdf 56800EX_ACLIB documents N N 2014-02-25 56800Ex_ACLIB, Advanced Control Library User's Guide /docs/en/user-guide/56800Ex_ACLIB.pdf /docs/en/user-guide/56800Ex_ACLIB.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Feb 24, 2014 132339537837198660 User Guide Y N 56800Ex_ACLIB, Advanced Control Library User's Guide 29 0 English 56800Ex_GDFLIB: This reference manual describes the General Digital Filters Library (GDFLIB)&#13;&#10;for the NXP 56F800E(X) family of Digital Signal Controllers. This library&#13;&#10;contains optimized functions. 1392282201602728442200 PSP 1.1 MB None None documents None 1392282201602728442200 /docs/en/user-guide/56800Ex_GDFLIB.pdf 1109535 /docs/en/user-guide/56800Ex_GDFLIB.pdf 56800EX_GDFLIB documents N N 2014-02-25 56800Ex_GDFLIB, General Digital Filters Library User's Guide /docs/en/user-guide/56800Ex_GDFLIB.pdf /docs/en/user-guide/56800Ex_GDFLIB.pdf User Guide N 132339537837198660 2023-06-19 pdf N en Feb 24, 2014 132339537837198660 User Guide Y N 56800Ex_GDFLIB, General Digital Filters Library User's Guide 30 1 English This document is intended for application developers who are creating software for devices using the NXP MC56F8006 part. 1229635690015721129016 PSP 3.3 MB None None documents None 1229635690015721129016 /docs/en/user-guide/MC56F8006DEMOUG.pdf 3349534 /docs/en/user-guide/MC56F8006DEMOUG.pdf MC56F8006DEMOUG documents N 2008-12-18 MC56F8006DEMO User Guide /docs/en/user-guide/MC56F8006DEMOUG.pdf /docs/en/user-guide/MC56F8006DEMOUG.pdf User Guide N 132339537837198660 2023-06-18 pdf en Jan 9, 2009 132339537837198660 User Guide N N MC56F8006DEMO User Guide Application Note Software Application Note Software 3 31 0 English 1435123993030715696591 PSP 1.3 MB None None documents None 1435123993030715696591 /docs/en/application-note-software/AN5143SW.zip 1336645 /docs/en/application-note-software/AN5143SW.zip AN5143SW documents N N 2015-06-23 Software file for AN5143 /docs/en/application-note-software/AN5143SW.zip /docs/en/application-note-software/AN5143SW.zip Application Note Software N 789425793691620447 2022-12-07 zip N en Jun 23, 2015 789425793691620447 Application Note Software D N Software file for AN5143 32 0 English Software for AN3815 1241709655821715304507 PSP 665.1 KB None None documents None 1241709655821715304507 /docs/en/application-note-software/AN3815SW.zip 665101 /docs/en/application-note-software/AN3815SW.zip AN3815SW documents N 2009-05-07 Software for AN3815 /docs/en/application-note-software/AN3815SW.zip /docs/en/application-note-software/AN3815SW.zip Application Note Software N 789425793691620447 2022-12-07 zip en May 7, 2009 789425793691620447 Application Note Software D N Software for AN3815 33 0 English Software for AN3814 1239302805821706178980 PSP 1.1 MB None None documents None 1239302805821706178980 /docs/en/application-note-software/AN3814SW.zip 1086351 /docs/en/application-note-software/AN3814SW.zip AN3814SW documents N 2009-04-09 Software for AN3814 /docs/en/application-note-software/AN3814SW.zip /docs/en/application-note-software/AN3814SW.zip Application Note Software N 789425793691620447 2022-12-07 zip en Apr 9, 2009 789425793691620447 Application Note Software D N Software for AN3814 Technical Notes Technical Notes 2 34 0 English The function of the run-time initialization is to generate a code that sets up the DSP56800E / DSP56800EX environment before executing the &#8220;main&#8221; code. When creating a new bareboard project using the CodeWarrior wizard, a default initialization file is generated by the wizard. 1420485948939718124928 PSP 106.6 KB None None documents None 1420485948939718124928 /docs/en/engineering-bulletin/EB813.pdf 106608 /docs/en/engineering-bulletin/EB813.pdf EB813 documents N N 2016-10-31 Run-time Initialization on DSCs /docs/en/engineering-bulletin/EB813.pdf /docs/en/engineering-bulletin/EB813.pdf Technical Notes N 389245547230346745 2022-12-07 pdf N en Jan 5, 2015 389245547230346745 Technical Notes Y N Run-time Initialization on DSCs 35 0 English Software to accompany EB813. 1420652151851714097910 PSP 23.8 KB None None documents None 1420652151851714097910 /docs/en/engineering-bulletin/EB813SW.zip 23817 /docs/en/engineering-bulletin/EB813SW.zip EB813SW documents N N 2016-10-31 EB813SW /docs/en/engineering-bulletin/EB813SW.zip /docs/en/engineering-bulletin/EB813SW.zip Technical Notes N 389245547230346745 2022-12-07 zip N en Jan 5, 2015 389245547230346745 Technical Notes Y N EB813SW Product Change Notice Product Change Notice 2 36 0 English 1401300265188729652203 PSP 12.7 KB None None documents None 1401300265188729652203 /docs/en/product-change-notice/PCN16246.htm 12660 /docs/en/product-change-notice/PCN16246.htm PCN16246 documents N 2014-05-28 0.25um xQFP Products Copper Wire Qualification /docs/en/product-change-notice/PCN16246.htm /docs/en/product-change-notice/PCN16246.htm Product Change Notice N 454076741825495278 2022-12-07 htm en May 28, 2014 454076741825495278 Product Change Notice D N 0.25um xQFP Products Copper Wire Qualification 37 0 English 1400655187257698150893 PSP 311.5 KB None None documents None 1400655187257698150893 /docs/en/product-change-notice/PCN16235.htm 311474 /docs/en/product-change-notice/PCN16235.htm PCN16235 documents N 2014-05-20 Copper Wire Conversion for Microcontroller and Microprocessor Devices /docs/en/product-change-notice/PCN16235.htm /docs/en/product-change-notice/PCN16235.htm Product Change Notice N 454076741825495278 2022-12-07 htm en May 20, 2014 454076741825495278 Product Change Notice D N Copper Wire Conversion for Microcontroller and Microprocessor Devices false 0 56F800x downloads en true 1 Y PSP Y Y Application Note 16 /docs/en/application-note/AN5143.pdf 2016-10-31 1435125086256739018745 PSP 9 Jun 23, 2015 Application Note This application note gives guidance about how to relocate codes/libraries to RAM. The PROM-to-PRAM tool in start-up code provides a way copy codes to RAM while DSC initialization, if this tool is unavailable. None /docs/en/application-note/AN5143.pdf English documents 980897 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN5143.pdf Relocate Subroutines to PRAM for MC56F827xx DSC /docs/en/application-note/AN5143.pdf documents 645036621402383989 Application Note N en None pdf 0 N N Relocate Subroutines to PRAM for MC56F827xx DSC 980.9 KB AN5143 N 1435125086256739018745 /secured/assets/documents/en/application-note/AN4752.pdf 2016-10-31 1370013855832696188368 PSP 10 May 31, 2013 Application Note Explaining how to add the FreeMASTER serial driver software to the embedded application and configure it. The FreeMASTER serial driver is a piece of code that enables an embedded application to communicate with the FreeMASTER PC application. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4752.pdf English documents 2220944 None 645036621402383989 2024-07-15 Y /webapp/Download?colCode=AN4752 AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note /secured/assets/documents/en/application-note/AN4752.pdf documents 645036621402383989 Application Note N en Extended Y pdf 0 Y N AN4752: FreeMASTER Usage, Serial Driver Implementation – Application Note 2.2 MB AN4752 N 1370013855832696188368 /docs/en/application-note/AN4753.pdf 2016-10-31 1369937932059742568603 PSP 11 May 30, 2013 Application Note Presenting the use of the Rational ClearCase version control system in CodeWarrior 10.3. It lists the files needed to maintain the project and describes how to install, set up, use, and uninstall the ClearCase plugin in CodeWarrior 10.3. The ClearCase plugin enables you to check files in and out directly from within CodeWarrior, making the work more effective. None /docs/en/application-note/AN4753.pdf English documents 477314 None 645036621402383989 2024-07-15 N /docs/en/application-note/AN4753.pdf AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note /docs/en/application-note/AN4753.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4753: Rational ClearCase Use in CodeWarrior 10.3 – Application Note 477.3 KB AN4753 N 1369937932059742568603 /docs/en/application-note/AN4323.pdf 2016-10-31 1308089702903720512700 PSP 12 Apr 17, 2013 Application Note This Application Note describes how to use the MED-EKG and Kinetis MCU Tower<sup>&#174;</sup> development board to obtain an electrocardiogram signal and measure heart rate None /docs/en/application-note/AN4323.pdf English documents 2136315 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4323.pdf Freescale Solutions for ECG and Heart Rate Monitor /docs/en/application-note/AN4323.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N Freescale Solutions for ECG and Heart Rate Monitor 2.1 MB AN4323 N 1308089702903720512700 /docs/en/application-note/AN4701.pdf 2016-10-31 1362546272212681791051 PSP 13 Mar 23, 2013 Application Note AN4701: This application note aims to describe the Qi communication data demodulation design for wireless charger transmitter with MC56F8006 digital signal controller (DSC) including Qi communication interface, demodulation circuits design, and demodulation software design. None /docs/en/application-note/AN4701.pdf English documents 1009471 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4701.pdf AN4701, Demodulating Communication Signals of Qi-Compliant Low-Power Wireless Charger Using MC56F8006 DSC - Application Notes /docs/en/application-note/AN4701.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN4701, Demodulating Communication Signals of Qi-Compliant Low-Power Wireless Charger Using MC56F8006 DSC - Application Notes 1.0 MB AN4701 N 1362546272212681791051 /secured/assets/documents/en/application-note/AN4642.pdf 2016-10-31 1356078899981706765649 PSP 14 Mar 11, 2013 Application Note This application note describes an NXP motor control tuning solution known as Motor Control Application Tuning (MCAT) Tool. MCAT is a graphical tool dedicated to motor control developers and the operators of modern electrical drives. The main feature of proposed approach is automatic calculation and real-time tuning of selected control structure parameters. Registration without Disclaimer /secured/assets/documents/en/application-note/AN4642.pdf English documents 3990007 None 645036621402383989 2024-07-19 Y /webapp/Download?colCode=AN4642 Motor Control Application Tuning (MCAT) Tool for 3-Phase PMSM /secured/assets/documents/en/application-note/AN4642.pdf documents 645036621402383989 Application Note N en Extended Y pdf 1 Y N Motor Control Application Tuning (MCAT) Tool for 3-Phase PMSM 4.0 MB AN4642 N 1356078899981706765649 /docs/en/application-note/AN4612.pdf 2012-10-14 1350278489772721340164 PSP 15 Oct 14, 2012 Application Note This application note deals with an implementation of BLDC ceiling fan system using MC56F8006 based&#13;&#10;on vector control. None /docs/en/application-note/AN4612.pdf English documents 1212480 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4612.pdf Sensorless Sinusoidal Vector Control of BLDC Ceiling Fan on MC56F8006 /docs/en/application-note/AN4612.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Sensorless Sinusoidal Vector Control of BLDC Ceiling Fan on MC56F8006 1.2 MB AN4612 N 1350278489772721340164 /docs/en/application-note/AN4490.pdf 2016-10-31 1333185462579712640090 PSP 16 Mar 30, 2012 Application Note AN4490: This application note shows how to build a general Field Oriented Control (FOC) algorithm code structure, based on the 56F8006 using a Graphic Configuration Tool (GCT) called the DSP56800E_Quick_Start, integrated in CodeWarrior. The configuration of the 56F8006 in this document is based on a 3-Phase BLDC/PMSM Low-Voltage Motor Control Drive Board together with the MC56F8006 Controller Daughter Board. None /docs/en/application-note/AN4490.pdf English documents 776163 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4490.pdf AN4490, How to Build an FOC Code Structure Based on the 56F8006 Using a Quick-Start Tool - Application Notes /docs/en/application-note/AN4490.pdf documents 645036621402383989 Application Note N en None pdf 0 N N AN4490, How to Build an FOC Code Structure Based on the 56F8006 Using a Quick-Start Tool - Application Notes 776.2 KB AN4490 N 1333185462579712640090 /docs/en/application-note/AN4439.pdf 2012-01-12 1326412612743704933704 PSP 17 Jan 12, 2012 Application Note This application note details two alternative methods for resetting an NXP MC56F8300 family device besides the nominal reset pin function, the nominal JTAG sequences, and the nomincal power on reset. The nominal methods are not treated in this document. None /docs/en/application-note/AN4439.pdf English documents 225470 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4439.pdf Recovering MC56F8300 Family Devices from Extreme RFI /docs/en/application-note/AN4439.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Recovering MC56F8300 Family Devices from Extreme RFI 225.5 KB AN4439 N 1326412612743704933704 /docs/en/application-note/AN4407.pdf 2011-11-23 1322043390810719523609 PSP 18 Nov 22, 2011 Application Note This Application Note demonstrates the field-oriented control (FOC) of 2 permanent magnet synchronous motors (PMSM) with Kinetis K70 microcontroller (MCU) None /docs/en/application-note/AN4407.pdf English documents 2444392 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4407.pdf Dual Motor Control application (PMSM) with Kinetis<sup>&#174;</sup> K70 /docs/en/application-note/AN4407.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N Dual Motor Control application (PMSM) with Kinetis<sup>&#174;</sup> K70 2.4 MB AN4407 N 1322043390810719523609 /docs/en/application-note/AN4410.pdf 2016-10-31 1322044226768699391469 PSP 19 Nov 22, 2011 Application Note This Application Note describes the synchronization between the FlexTimer (FTM) and ADC of Kinetis K40 microcontroller (MCU) targeting motor control None /docs/en/application-note/AN4410.pdf English documents 792680 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN4410.pdf FlexTimer and ADC synchronization for Field-Oriented-Control /docs/en/application-note/AN4410.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N FlexTimer and ADC synchronization for Field-Oriented-Control 792.7 KB AN4410 N 1322044226768699391469 /docs/en/application-note/DRM125.pdf 2016-10-31 1316086641657707735143 PSP 20 Sep 20, 2011 Application Note DRM125: The intent of this document is to specify the features of the Activity Monitor reference design. An activity monitor is a small device that records information about user's physical activity patterns. The device should normally run continuously for long periods of time. Activity monitors can frequently interpret and summarize the recorded data. Devices Supported: MCF51MM256, MC34673, MC13202, MMA7660. None /docs/en/application-note/DRM125.pdf English documents 7288632 None 645036621402383989 2022-12-07 N /docs/en/application-note/DRM125.pdf DRM125, Activity Monitor Design Reference Manual - Application Notes /docs/en/application-note/DRM125.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N N DRM125, Activity Monitor Design Reference Manual - Application Notes 7.3 MB DRM125 N 1316086641657707735143 /docs/en/application-note/AN3814.pdf 2009-04-09 1239303121762685979159 PSP 21 Apr 21, 2010 Application Note NXP offers serial bootloaders for digital signal controllers. Because MC56F800x/801x/802x/803x devices have critical flash resources, these serial bootloaders are designed to load application code only once, so as to allow applications to use the full flash memory space. However, some customers require the serial bootloader to stay in flash forever. This serial bootloader is a so-called static bootloader. This document describes the static serial bootloader and its requirements when used in applicatio None /docs/en/application-note/AN3814.pdf English documents 509462 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3814.pdf Static Serial Bootloader for MC56F800x/801x/802x/803x /docs/en/application-note/AN3814.pdf documents 645036621402383989 Application Note N en None Y pdf 1 N Static Serial Bootloader for MC56F800x/801x/802x/803x 509.5 KB AN3814 N 1239303121762685979159 /docs/en/application-note/AN3844.pdf 2009-10-29 1256848328134720918878 PSP 22 Oct 29, 2009 Application Note This application note introduces the new MC56F8006 digital signal and controller (DSC) features that include pulse width modulators (PWM), programmable delay blocks (PDB), programmable gain amplifiers (PGA), and analog-to-digital converters (ADC). None /docs/en/application-note/AN3844.pdf English documents 644640 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3844.pdf MC56F8006 New Features: PDB, PGA, ADC, and PWM /docs/en/application-note/AN3844.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N MC56F8006 New Features: PDB, PGA, ADC, and PWM 644.6 KB AN3844 N 1256848328134720918878 /docs/en/application-note/AN3815.pdf 2009-04-17 1240006938656714032709 PSP 23 Apr 28, 2009 Application Note This document describes a simple application in which a DSC (digital signal controller) network is used to drive a high-power RGB LED matrix. The MC56F8006 is the NXP device selected for this application. The high-speed serial peripheral featured on the DSC ensures fast communication between the network nodes. The color matching control algorithm is managed by the analog-to-digital converter, programmable gain amplifier, and PWM modules. None /docs/en/application-note/AN3815.pdf English documents 1915937 None 645036621402383989 2022-12-07 /docs/en/application-note/AN3815.pdf Implementing a Modular High Brightness RGB LED Network /docs/en/application-note/AN3815.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N Implementing a Modular High Brightness RGB LED Network 1.9 MB AN3815 N 1240006938656714032709 /docs/en/application-note/AN3843.pdf 2016-10-31 1239900514274704966684 PSP 24 Apr 16, 2009 Application Note AN3843: The NXP MC56F8006 is a cost-effective, low-power DSC product which meets the requirements of green power conversion based on all-digital control. This application note describes the implementation of a single-phase two-channel interleaved PFC converter based on the MC56F8006 device, and provides a reference for customers who require cost-effective and high performance/price ratio solutions. None /docs/en/application-note/AN3843.pdf English documents 451085 None 645036621402383989 2022-12-07 N /docs/en/application-note/AN3843.pdf AN3843, Single Phase Two-Channel Interleaved PFC Converter Using MC56F8006 - Application Notes /docs/en/application-note/AN3843.pdf documents 645036621402383989 Application Note N en None Y pdf 0 N N AN3843, Single Phase Two-Channel Interleaved PFC Converter Using MC56F8006 - Application Notes 451.1 KB AN3843 N 1239900514274704966684 Application Note Software 3 /docs/en/application-note-software/AN5143SW.zip 2015-06-23 1435123993030715696591 PSP 31 Jun 23, 2015 Application Note Software None /docs/en/application-note-software/AN5143SW.zip English documents 1336645 None 789425793691620447 2022-12-07 N /docs/en/application-note-software/AN5143SW.zip Software file for AN5143 /docs/en/application-note-software/AN5143SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N N Software file for AN5143 1.3 MB AN5143SW N 1435123993030715696591 /docs/en/application-note-software/AN3815SW.zip 2009-05-07 1241709655821715304507 PSP 32 May 7, 2009 Application Note Software Software for AN3815 None /docs/en/application-note-software/AN3815SW.zip English documents 665101 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN3815SW.zip Software for AN3815 /docs/en/application-note-software/AN3815SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N Software for AN3815 665.1 KB AN3815SW N 1241709655821715304507 /docs/en/application-note-software/AN3814SW.zip 2009-04-09 1239302805821706178980 PSP 33 Apr 9, 2009 Application Note Software Software for AN3814 None /docs/en/application-note-software/AN3814SW.zip English documents 1086351 None 789425793691620447 2022-12-07 /docs/en/application-note-software/AN3814SW.zip Software for AN3814 /docs/en/application-note-software/AN3814SW.zip documents 789425793691620447 Application Note Software N en None D zip 0 N Software for AN3814 1.1 MB AN3814SW N 1239302805821706178980 Data Sheet 1 /docs/en/data-sheet/MC56F8006.pdf 2009-03-11 1236792949342727121705 PSP 2 Jul 15, 2011 Data Sheet Data Sheet MC56F8006: This document applies to parts marked with 2M53M. The 56F8006/56F8002 is a member of the 56800E core-based family of digital signal controllers (DSCs). It includes many peripherals that are especially useful for cost-sensitive applications, including: Industrial control and Home appliances. None /docs/en/data-sheet/MC56F8006.pdf English 2124724 None Data Sheet 2022-12-07 N /docs/en/data-sheet/MC56F8006.pdf MC56F8006 / MC56F8002 Digital Signal Controller - Data Sheet /docs/en/data-sheet/MC56F8006.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 4 N N MC56F8006 / MC56F8002 Digital Signal Controller - Data Sheet 2.1 MB MC56F8006 N 1236792949342727121705 Errata 2 /docs/en/errata/MC56F8006E.pdf 2009-03-12 1236885607615702538622 PSP 4 Apr 22, 2014 Errata Errata This document reports errata information for the 2M53M maskset for the MC56F8006 devices. These parts are marked with 2M53M. None /docs/en/errata/MC56F8006E.pdf English 31720 None Errata 2022-12-07 N /docs/en/errata/MC56F8006E.pdf MC56F8006E, 56F8006 Digital Signal Controller: Chip Errata - Errata /docs/en/errata/MC56F8006E.pdf documents 155452329886410597 Errata N Y en None Y t522 pdf 4 N N MC56F8006E, 56F8006 Digital Signal Controller: Chip Errata - Errata 31.7 KB MC56F8006E N 1236885607615702538622 /docs/en/errata/MC56F8002E.pdf 2009-03-12 1236885608104731854957 PSP 5 May 22, 2014 Errata Errata This document reports errata information on the 2M53M maskset. These parts are marked with 2M53M. None /docs/en/errata/MC56F8002E.pdf English 31489 None Errata 2022-12-07 N /docs/en/errata/MC56F8002E.pdf MC56F8002E, 56F8002 Digital Signal Controller: Chip Errata - Errata /docs/en/errata/MC56F8002E.pdf documents 155452329886410597 Errata N Y en None Y t522 pdf 4 N N MC56F8002E, 56F8002 Digital Signal Controller: Chip Errata - Errata 31.5 KB MC56F8002E N 1236885608104731854957 Fact Sheet 1 /docs/en/fact-sheet/MC56F8006FS.pdf 2009-04-29 1241029883602720396039 PSP 6 Oct 23, 2009 Fact Sheet Fact Sheet The devices in the MC56F8006/2 series combine, on a single chip, the processing power of a digital signal processor (DSP) and the functionality of a microcontroller unit (MCU) with a flexible set of peripherals to create an extremely cost-effective solution. None /docs/en/fact-sheet/MC56F8006FS.pdf English 247986 None Fact Sheet 2022-12-07 /docs/en/fact-sheet/MC56F8006FS.pdf MC56F8006/2 Fact Sheet /docs/en/fact-sheet/MC56F8006FS.pdf documents 736675474163315314 Fact Sheet N Y en None N t523 pdf 2 N MC56F8006/2 Fact Sheet 248.0 KB MC56F8006FS N 1241029883602720396039 Product Brief 1 /docs/en/product-brief/MC56F8006PB.pdf 2009-03-11 1236793405915731246335 PSP 3 Mar 11, 2009 Product Brief Product Brief The devices in the MC56F8006/MC56F8002 series combine, on a single chip, the processing power of a digital signal processor (DSP) and the functionality of a microcontroller unit (MCU) with a flexible set of peripherals to create an extremely cost-effective solution. Any signal pin associated with these peripherals can also be used for general-purpose input/output (GPIO). Features include an extremely low-power mode and the ability to shut down each peripheral independently. None /docs/en/product-brief/MC56F8006PB.pdf English 283119 None Product Brief 2022-12-07 /docs/en/product-brief/MC56F8006PB.pdf MC56F8006/MC56F8002 Digital Signal Controller - Product Brief /docs/en/product-brief/MC56F8006PB.pdf documents 899114358132306053 Product Brief N Y en None Y t532 pdf 0 N MC56F8006/MC56F8002 Digital Signal Controller - Product Brief 283.1 KB MC56F8006PB N 1236793405915731246335 Product Change Notice 2 /docs/en/product-change-notice/PCN16246.htm 2014-05-28 1401300265188729652203 PSP 36 May 28, 2014 Product Change Notice None /docs/en/product-change-notice/PCN16246.htm English documents 12660 None 454076741825495278 2022-12-07 /docs/en/product-change-notice/PCN16246.htm 0.25um xQFP Products Copper Wire Qualification /docs/en/product-change-notice/PCN16246.htm documents 454076741825495278 Product Change Notice N en None D htm 0 N 0.25um xQFP Products Copper Wire Qualification 12.7 KB PCN16246 N 1401300265188729652203 /docs/en/product-change-notice/PCN16235.htm 2014-05-20 1400655187257698150893 PSP 37 May 20, 2014 Product Change Notice None /docs/en/product-change-notice/PCN16235.htm English documents 311474 None 454076741825495278 2022-12-07 /docs/en/product-change-notice/PCN16235.htm Copper Wire Conversion for Microcontroller and Microprocessor Devices /docs/en/product-change-notice/PCN16235.htm documents 454076741825495278 Product Change Notice N en None D htm 0 N Copper Wire Conversion for Microcontroller and Microprocessor Devices 311.5 KB PCN16235 N 1400655187257698150893 Reference Manual 3 /secured/assets/documents/en/reference-manual/DRM108.pdf 2016-10-31 1241515381526714393201 PSP 8 Apr 30, 2009 Reference Manual This design reference manual describes the design of a sensorless 3-phase brushless DC (BLDC) motor drive based on NXP&#8217;s MC56F8006 dedicated motor-control device. Registration without Disclaimer /secured/assets/documents/en/reference-manual/DRM108.pdf English documents 957164 None 500633505221135046 2022-12-07 Y /webapp/Download?colCode=DRM108 BLDC Sensorless Reference Design Using MC56F8006 - Reference Manual /secured/assets/documents/en/reference-manual/DRM108.pdf documents 500633505221135046 Reference Manual N en Extended Y pdf 0 Y N BLDC Sensorless Reference Design Using MC56F8006 - Reference Manual 957.2 KB DRM108 N 1241515381526714393201 /docs/en/reference-manual/MC56F8006RM.pdf 2009-03-11 1236789524430722781919 PSP 1 Nov 29, 2011 Reference Manual Reference Manual The 56F8006 / 56F8002 is a member of the 56800E core-based family of digital signal controllers (DSCs). It combines, on a single chip, the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals to create an extremely cost-effective solution. The 56F8006 / 56F8002 also offers up to 40 general-purpose input/output (GPIO) lines, depending on peripheral configuration. None /docs/en/reference-manual/MC56F8006RM.pdf English 4348681 None Reference Manual 2022-12-07 N /docs/en/reference-manual/MC56F8006RM.pdf MC56F8006 / MC56F8002 - Reference Manual /docs/en/reference-manual/MC56F8006RM.pdf documents 500633505221135046 Reference Manual N Y en None Y t877 pdf 2 N N MC56F8006 / MC56F8002 - Reference Manual 4.3 MB MC56F8006RM N 1236789524430722781919 /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf 2016-10-31 C968463319800 PSP 7 Sep 22, 2011 Reference Manual Reference Manual This manual describes the central processing unit of the DSP56800E and DSP56800EX in detail. The 32-bit DSP56800EX core represents the next step in the evolution of NXP&#8217;s families of digital signal controllers (DSCs). The DSP56800EX core extends the capabilities of the DSP56800E core architecture. Both the DSP56800EX and DSP56800E cores provide low-cost, low-power computing, combining DSC power and parallelism with MCU-like programming simplicity. Registration without Disclaimer /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf English 8861960 None Reference Manual 2022-12-07 Y /webapp/Download?colCode=DSP56800ERM DSP56800E and DSP56800EX - Reference Manual /secured/assets/documents/en/reference-manual/DSP56800ERM.pdf documents 500633505221135046 Reference Manual N Y en Extended Y t877 pdf 3 Y N DSP56800E and DSP56800EX - Reference Manual 8.9 MB DSP56800ERM N C968463319800 Technical Notes 2 /docs/en/engineering-bulletin/EB813.pdf 2016-10-31 1420485948939718124928 PSP 34 Jan 5, 2015 Technical Notes The function of the run-time initialization is to generate a code that sets up the DSP56800E / DSP56800EX environment before executing the &#8220;main&#8221; code. When creating a new bareboard project using the CodeWarrior wizard, a default initialization file is generated by the wizard. None /docs/en/engineering-bulletin/EB813.pdf English documents 106608 None 389245547230346745 2022-12-07 N /docs/en/engineering-bulletin/EB813.pdf Run-time Initialization on DSCs /docs/en/engineering-bulletin/EB813.pdf documents 389245547230346745 Technical Notes N en None Y pdf 0 N N Run-time Initialization on DSCs 106.6 KB EB813 N 1420485948939718124928 /docs/en/engineering-bulletin/EB813SW.zip 2016-10-31 1420652151851714097910 PSP 35 Jan 5, 2015 Technical Notes Software to accompany EB813. None /docs/en/engineering-bulletin/EB813SW.zip English documents 23817 None 389245547230346745 2022-12-07 N /docs/en/engineering-bulletin/EB813SW.zip EB813SW /docs/en/engineering-bulletin/EB813SW.zip documents 389245547230346745 Technical Notes N en None Y zip 0 N N EB813SW 23.8 KB EB813SW N 1420652151851714097910 User Guide 6 /docs/en/user-guide/56800Ex_MLIB.pdf 2014-02-25 1392284325575706874882 PSP 25 Feb 24, 2014 User Guide 56800Ex_MLIB: This reference manual describes the Math Library (MLIB) for the NXP&#13;&#10;56F800E(X) family of Digital Signal Controllers. This library contains optimized&#13;&#10;functions. None /docs/en/user-guide/56800Ex_MLIB.pdf English documents 1747915 None 132339537837198660 2023-06-19 N /docs/en/user-guide/56800Ex_MLIB.pdf 56800Ex_MLIB, Math Library User&#8217;s Guide /docs/en/user-guide/56800Ex_MLIB.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N N 56800Ex_MLIB, Math Library User&#8217;s Guide 1.7 MB 56800EX_MLIB N 1392284325575706874882 /docs/en/user-guide/56800Ex_GFLIB.pdf 2014-02-25 1392283096324684362575 PSP 26 Feb 24, 2014 User Guide 56800Ex_GFLIB: This reference manual describes the General Functions Library (GFLIB) for the NXP 56F800E(X) family of Digital Signal Controllers. This library contains&#13;&#10;optimized functions. None /docs/en/user-guide/56800Ex_GFLIB.pdf English documents 1125843 None 132339537837198660 2023-06-19 N /docs/en/user-guide/56800Ex_GFLIB.pdf 56800Ex_GFLIB, General Functions Library User&#8217;s Guide /docs/en/user-guide/56800Ex_GFLIB.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N N 56800Ex_GFLIB, General Functions Library User&#8217;s Guide 1.1 MB 56800EX_GFLIB N 1392283096324684362575 /docs/en/user-guide/56800Ex_MCLIB.pdf 2014-02-25 1392283879475715001970 PSP 27 Feb 24, 2014 User Guide 56800Ex_MCLIB: This reference manual describes the Motor Control Library (MCLIB) for the&#13;&#10;NXP 56F800E(X) family of Digital Signal Controllers. This library contains&#13;&#10;optimized functions. None /docs/en/user-guide/56800Ex_MCLIB.pdf English documents 1812237 None 132339537837198660 2023-06-19 N /docs/en/user-guide/56800Ex_MCLIB.pdf 56800Ex_MCLIB, Motor Control Library User&#8217;s Guide /docs/en/user-guide/56800Ex_MCLIB.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N N 56800Ex_MCLIB, Motor Control Library User&#8217;s Guide 1.8 MB 56800EX_MCLIB N 1392283879475715001970 /docs/en/user-guide/56800Ex_ACLIB.pdf 2014-02-25 1392280291574720569874 PSP 28 Feb 24, 2014 User Guide 56800Ex_ACLIB: This reference manual describes the Advanced Control Library (ACLIB) for the&#13;&#10;NXP 56F800E(X) family of Digital Signal Controllers. This library contains&#13;&#10;optimized functions. None /docs/en/user-guide/56800Ex_ACLIB.pdf English documents 869899 None 132339537837198660 2022-12-07 N /docs/en/user-guide/56800Ex_ACLIB.pdf 56800Ex_ACLIB, Advanced Control Library User's Guide /docs/en/user-guide/56800Ex_ACLIB.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N N 56800Ex_ACLIB, Advanced Control Library User's Guide 869.9 KB 56800EX_ACLIB N 1392280291574720569874 /docs/en/user-guide/56800Ex_GDFLIB.pdf 2014-02-25 1392282201602728442200 PSP 29 Feb 24, 2014 User Guide 56800Ex_GDFLIB: This reference manual describes the General Digital Filters Library (GDFLIB)&#13;&#10;for the NXP 56F800E(X) family of Digital Signal Controllers. This library&#13;&#10;contains optimized functions. None /docs/en/user-guide/56800Ex_GDFLIB.pdf English documents 1109535 None 132339537837198660 2023-06-19 N /docs/en/user-guide/56800Ex_GDFLIB.pdf 56800Ex_GDFLIB, General Digital Filters Library User's Guide /docs/en/user-guide/56800Ex_GDFLIB.pdf documents 132339537837198660 User Guide N en None Y pdf 0 N N 56800Ex_GDFLIB, General Digital Filters Library User's Guide 1.1 MB 56800EX_GDFLIB N 1392282201602728442200 /docs/en/user-guide/MC56F8006DEMOUG.pdf 2008-12-18 1229635690015721129016 PSP 30 Jan 9, 2009 User Guide This document is intended for application developers who are creating software for devices using the NXP MC56F8006 part. None /docs/en/user-guide/MC56F8006DEMOUG.pdf English documents 3349534 None 132339537837198660 2023-06-18 /docs/en/user-guide/MC56F8006DEMOUG.pdf MC56F8006DEMO User Guide /docs/en/user-guide/MC56F8006DEMOUG.pdf documents 132339537837198660 User Guide N en None N pdf 1 N MC56F8006DEMO User Guide 3.3 MB MC56F8006DEMOUG N 1229635690015721129016 true Y Products
