Embedded SW: Three-Phase Brushless Motor Pre-Driver Software Driver for GD3000, MC33937 and MC34937

GD3000-MC33937-SOFTWARE-DRIVER

Roll over image to zoom in

This embedded software solution provides high-level support for listed NXP analog parts (GD3000, MC33937 and MC34937). Included embedded driver provides access to all features of Three-Phase Brushless Motor Pre-Driver such as writing/reading SPI registers, dead time insertion and fault protection.

Since AML (analog middleware layer) is utilized, KSDK 2.0 and also S32 SDK 1.0 are supported.

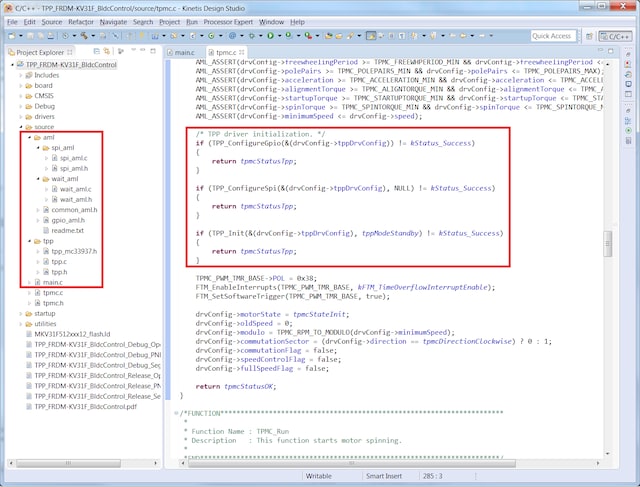

Example projects for KDS 3.2 and S32DS 1.3 are part of the package.

Features

  • Operational mode management
  • Fault protection settings via SPI
  • Dead time insertion
  • Pre-driver setting via SPI and interrupts handling
  • BLDC motor control example

Supported Devices

  • MC33937: 3-Phase Field Effect Transistor Pre-Driver
  • GD3000: 3-Phase Brushless Motor Pre-Driver
  • MC34937: Three Phase Field Effect Transistor Pre-driver
