Freedom Accessory Boards for FRDM-GD3000EVB

FRDM-PWRSTG Active

Roll over image to zoom in

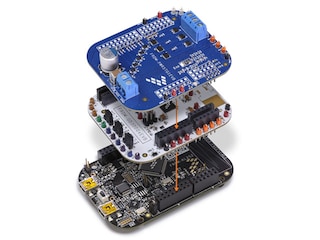

The FRDM-PWRSTG Freedom Accessory Board is an easy-to-use circuit board that allows the user to exercise all the functions of the GD3000 pre-driver to drive a brushless DC motor. It interfaces between the FRDM-GD3000EVB and the load.

The FRDM-PWRSTG is designed to be used in conjuction with a FRDM-GD3000EVB Freedom Expansion Board. Each FRDM-PWRSTG is geared toward a different type of application. Both a FRDM-GD3000 and a FRDM MCU board are required for full functionality of the FRDM-PWRSTG.

Used in conjunction with the FRDM-KL25Z, SPI Generator (SPIGen) may be used to demonstrate certain limited functions of the device.

The PSMN4R2-30MLD is a logic level gate drive N-channel enhancement mode MOSFET in LFPAK33 (3.3 x 3.3 mm) package.

This MOSFET belongs to the NextPowerS3 portfolio utilizing NXP's “SchottkyPlus” technology which delivers high efficiency, low spiking performance suited to high efficiency applications at high switching frequencies. Check the PSMN4R2-30MLD datasheet.

Supported Devices

Power Management

BLDC, H-Bridge, Stepper

  • GD3000: 3-Phase Brushless Motor Pre-Driver

Features

Connectivity

  • Compatible with Our KV series Freedom Development Platforms
  • Compatible with the FRDM-GD3000EVB Freedom Expansion Board
  • Output connectors to accommodate external loads

Power Management

  • LEDs to indicate the voltage supply status

General Specifications

  • Test points to allow probing of signals

Buy Options

FRDM-PWRSTG1EVB-Image

Click to expand

  • FRDM-PWRSTG1EVB
    Active

  • Three-Phase Motor Driver Evaluation Board Power Stage Expansion.

    • FRDM-PWRSTG Freedom Accessory Board
  • $35.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
