SPI Generator (SPIGen) Software

SPIGEN

Roll over image to zoom in

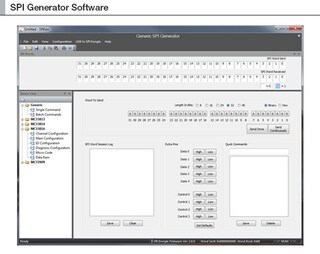

SPIGen is a fully customizable SPI generator software package, which can easily adapt to a wide variety of SPI protocol specifications. It supports the NXP USB SPI dongle/interface. SPIGen v7 can be installed on any Windows 7®, Windows 8®, or Windows 10®-based operating system, and it uses the USB port of a computer to interface with the test hardware via the USB SPI dongle/interface hardware.

For individual configuration files please refer to the summary page of your purchased kit.

To see which products work with SPIGen, please visit the Analog Toolbox.

Software Details

Features

Key Features

  • SPIGen V7 - compatible with Windows 7, Windows 8 and Windows 10
  • SPIGen 5.0.8 - compatible with Windows XP ONLY
  • Variable word sizes from 1 to 40 bits
  • SPI commands can be viewed in binary or in hex
  • Can save common SPI commands by name
  • Batches of SPI commands can be sent with one click
  • A session log records all messages sent and received
  • Can control nine extra non-SPI pins (digital outputs)
  • Can add transitions of non-SPI pins to batches
  • SPI maximum clock frequency up to 12.0 MHz (using KL25Z Freedom Board USB SPI Dongle)

Supported Devices

Downloads

Quick reference to our software types.
Filters

2 downloads

Note: For better experience, software downloads are recommended on desktop.

Y true 0 SSPSPIGENen 2 User Guide User Guide t792 2 en_US 2 1 1.0 English The USB to SPI device driver allows the USB to SPI Dongle to communicate with the SPIGen program. SPIGen is a configurable SPI generator written for Microsoft Windows XP, Microsoft Vista, and Microsoft Windows 7. 1351798867199700753984 SSP 248.4 KB None None documents None 1351798867199700753984 /docs/en/user-guide/KTUSBSPIDRVUG.pdf 248365 /docs/en/user-guide/KTUSBSPIDRVUG.pdf KTUSBSPIDRVUG N N 2012-11-01 KITUSBSPIDRVUG, USB to SPI Device Driver Installation Instructions - User Guide /docs/en/user-guide/KTUSBSPIDRVUG.pdf /docs/en/user-guide/KTUSBSPIDRVUG.pdf User Guide N Y 132339537837198660 2022-12-07 pdf N en Oct 10, 2012 User Guide t792 User Guide User Guide Y N KITUSBSPIDRVUG, USB to SPI Device Driver Installation Instructions - User Guide 2 1.0 English SPIGen is a configurable SPI generator written for Microsoft Windows XP, Microsoft Vista, Microsoft Windows 7 and Microsoft Windows 8. SPIGen uses the USB port of your computer and the USB SPI Dongle (P/N: KITUSBSPIDGLEVME) to interface with an evaluation board (EVB) or any other test platform. 1361823750351703475948 SSP 932.0 KB None None documents None 1361823750351703475948 /docs/en/user-guide/KTSPIGEN7UG.pdf 931985 /docs/en/user-guide/KTSPIGEN7UG.pdf KTSPIGEN7UG N N 2013-02-28 KTSPIGEN7UG - User Guide /docs/en/user-guide/KTSPIGEN7UG.pdf /docs/en/user-guide/KTSPIGEN7UG.pdf User Guide N Y 132339537837198660 2023-06-19 pdf N en Oct 2, 2012 User Guide t792 User Guide User Guide Y N KTSPIGEN7UG - User Guide false en_US en false 0 SPIGEN downloads en true 1 Y SSP User Guide 2 /docs/en/user-guide/KTUSBSPIDRVUG.pdf 2012-11-01 1351798867199700753984 SSP 1 Oct 10, 2012 User Guide User Guide The USB to SPI device driver allows the USB to SPI Dongle to communicate with the SPIGen program. SPIGen is a configurable SPI generator written for Microsoft Windows XP, Microsoft Vista, and Microsoft Windows 7. None /docs/en/user-guide/KTUSBSPIDRVUG.pdf English 248365 None User Guide 2022-12-07 N /docs/en/user-guide/KTUSBSPIDRVUG.pdf KITUSBSPIDRVUG, USB to SPI Device Driver Installation Instructions - User Guide /docs/en/user-guide/KTUSBSPIDRVUG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 1.0 N N KITUSBSPIDRVUG, USB to SPI Device Driver Installation Instructions - User Guide 248.4 KB KTUSBSPIDRVUG N 1351798867199700753984 /docs/en/user-guide/KTSPIGEN7UG.pdf 2013-02-28 1361823750351703475948 SSP 2 Oct 2, 2012 User Guide User Guide SPIGen is a configurable SPI generator written for Microsoft Windows XP, Microsoft Vista, Microsoft Windows 7 and Microsoft Windows 8. SPIGen uses the USB port of your computer and the USB SPI Dongle (P/N: KITUSBSPIDGLEVME) to interface with an evaluation board (EVB) or any other test platform. None /docs/en/user-guide/KTSPIGEN7UG.pdf English 931985 None User Guide 2023-06-19 N /docs/en/user-guide/KTSPIGEN7UG.pdf KTSPIGEN7UG - User Guide /docs/en/user-guide/KTSPIGEN7UG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 1.0 N N KTSPIGEN7UG - User Guide 932.0 KB KTSPIGEN7UG N 1361823750351703475948 true Y Softwares
