PT2001 Evaluation Board

FRDMPT2001EVM

Roll over image to zoom in

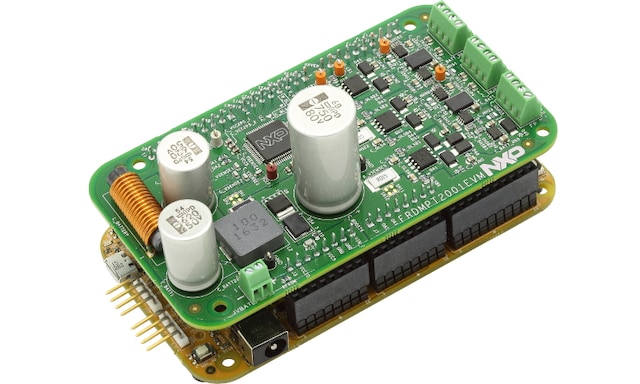

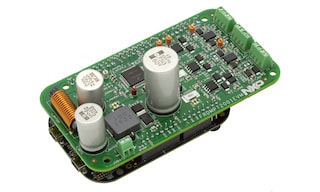

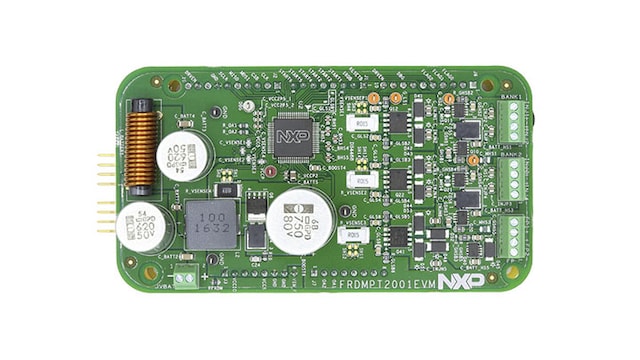

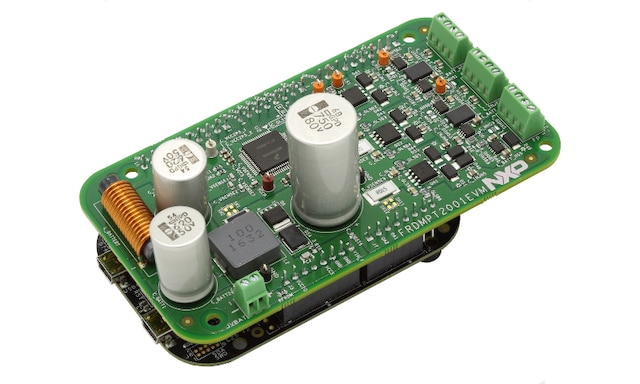

The FRDMPT2001EVM serves as the interface between the PT2001 and the components it controls. The board contains a commercial version of the PT2001 and connectors for up to four fuel injectors, two fuel pumps and a DC/DC converter.

Product Details

Supported Devices

Power Management

Powertrain and Engine Control

  • PT2001: Programmable Gate Driver for Solenoid Control

Features

Power Management

  • Power-conditioning circuitry
  • +12 V to +36 V VSUPP power to the PT2001

General Specifications

  • PT2001 direct injection pre-driver integrated circuit
  • External MOSFETs

Buy Options

FRDMPT2001EVM-Image

Click to expand

  • FRDMPT2001EVM
    Active

  • Freedom Expansion Board- PT2001, Solenoid Controller.

  • Assembled and tested FRDMPT2001EVM board mounted to an FRDM-KL25Z board in an anti-static bag
  • Quick start guide
  • Warranty card
    • $234.60 USD
    • For a quantity of 1
      • Availability: In Stock
      • Inventory: 5
      • Shipping: Normally ships 1-2 business days
    ADD TO CART
    Order from distributors
