Half-Bridge Evaluation Kit for P6 IGBT/SiC Modules Featuring the GD3100

FRDMGD3100HB8EVM Active

Roll over image to zoom in

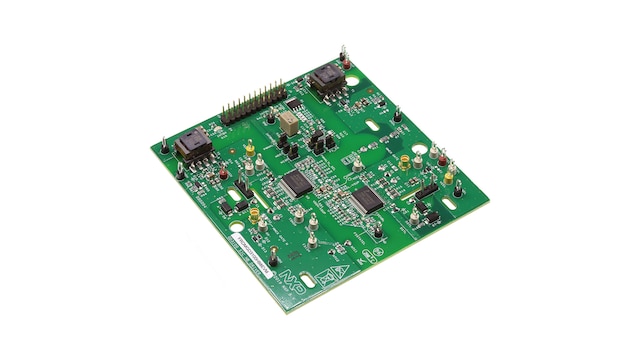

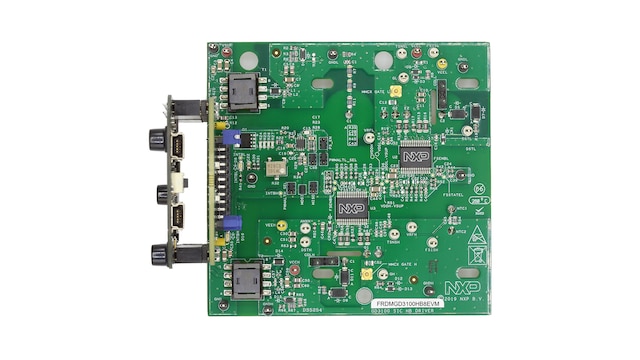

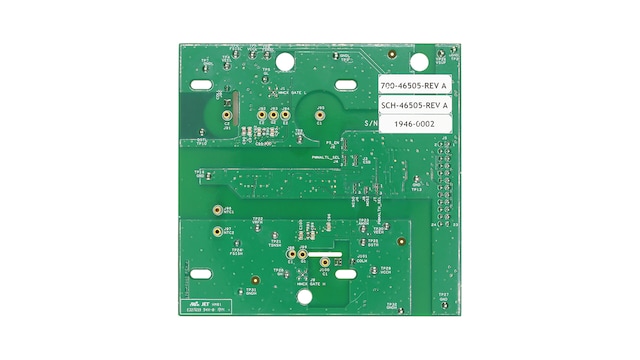

FRDMGD3100HB8EVM is a half-bridge evaluation kit populated with two MC33GD3100 single channel IGBT/SiC MOSFET gate drive devices. The kit includes the Freedom KL25Z MCU hardware for interfacing a PC installed with SPIGen software for communication to the SPI registers on the MC33GD3100 gate drive devices in either daisy chain or standalone configuration.

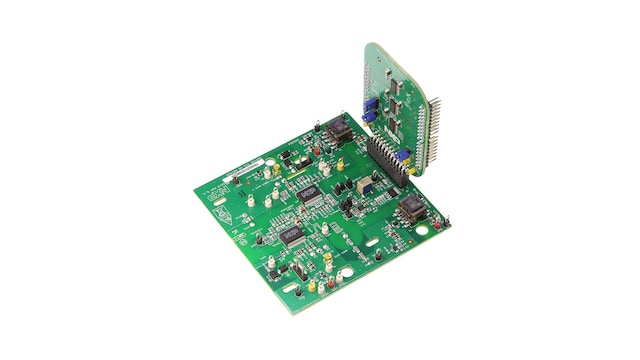

The GD3100 translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and MC33GD3100 gate drivers.

Product Details

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3100: Advanced High Voltage Isolated Gate Driver for IGBT and SiC MOSFETs

Features

  • Compatible with P6 SiC MOSFET module
  • SPIGEN graphical user interface available for use with kit
  • Daisy chain SPI interface configurability
  • Easy to configure jumper options
  • SPI configurable register options using SPIGEN GUI
  • Double pulse and short circuit evaluations
  • Translator board to translate 3.3 V signals to 5.0 V signals between the MCU and MC33GD3100 gate drivers

Buy Options

FRDMGD3100HB8EVM-Image

Click to expand

  • FRDMGD3100HB8EVM
    Active

  • Half-Bridge evaluation kit featuring GD3100 gate drive devices for IGBT/SiC MOSFET.

  • The FRDMGD3100HB8EVM contents include:

    • Assembled and tested FRDMGD3100HB8EVM board in an anti-static bag

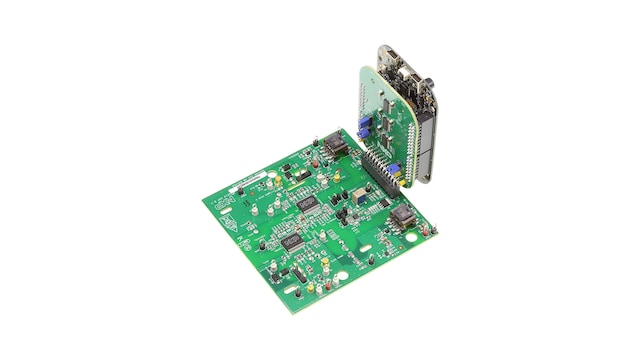

    • 3.3 V to 5.0 V GD3100 translator board connected to FRDM-KL25Z
    • USB cable, type A male/type mini B male, 3 ft
    • 1.27 mm jumpers for configuration (included with kit boards)
    • Quick Start Guide
  • For a quantity of 1
Order from distributors
N true 0 TSPFRDMGD3100HB8EVMen 2 User Guide User Guide t792 2 en_US en_US 2 1 English This page will help guide you through the process of learning about your FRDMGD3100HB8EVM board. 1595442751183682655558 Y 1595442751183682655558 GS-FRDMGD3100HB8EVM GS-FRDMGD3100HB8EVM /document/guide/getting-started-with-the-frdmgd3100hb8evm:GS-FRDMGD3100HB8EVM HTML 0 2020-07-22 GS-FRDMGD3100HB8EVM TSP User Guide 132339537837198660 2025-01-07 en Jul 22, 2020 User Guide t792 User Guide User Guide Y Getting Started with the FRDMGD3100HB8EVM 2 1 English The FRDMGD3100HB8EVM is a half-bridge evaluation kit populated with two GD3100 single channel gate drive devices. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with SPIGen software for communication to the serial peripheral interface (SPI) registers on the GD3100 gate drive devices in either daisy chain or standalone configuration. 1595280757335698333576 TSP 14.0 MB Registration without Disclaimer None documents Y Extended 1595280757335698333576 /secured/assets/documents/en/user-guide/UM11440.pdf 13950509 /secured/assets/documents/en/user-guide/UM11440.pdf UM11440 Y N 2020-07-20 UM11440, FRDMGD3100HB8EVM half-bridge evaluation board - User Guide /webapp/Download?colCode=UM11440 /secured/assets/documents/en/user-guide/UM11440.pdf User Guide N 132339537837198660 2023-06-18 pdf Y en Jul 20, 2020 User Guide t792 User Guide User Guide Y N UM11440, FRDMGD3100HB8EVM half-bridge evaluation board - User Guide false en false 0 FRDMGD3100HB8EVM downloads en true 0 Y TSP User Guide 2 2020-07-22 1595442751183682655558 1 Jul 22, 2020 User Guide User Guide This page will help guide you through the process of learning about your FRDMGD3100HB8EVM board. Y GS-FRDMGD3100HB8EVM English 0 User Guide 2025-01-07 /document/guide/getting-started-with-the-frdmgd3100hb8evm:GS-FRDMGD3100HB8EVM Getting Started with the FRDMGD3100HB8EVM GS-FRDMGD3100HB8EVM TSP 132339537837198660 User Guide en Y t792 HTML GS-FRDMGD3100HB8EVM 1595442751183682655558 2020-07-20 /secured/assets/documents/en/user-guide/UM11440.pdf 1595280757335698333576 TSP 2 Jul 20, 2020 User Guide User Guide The FRDMGD3100HB8EVM is a half-bridge evaluation kit populated with two GD3100 single channel gate drive devices. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with SPIGen software for communication to the serial peripheral interface (SPI) registers on the GD3100 gate drive devices in either daisy chain or standalone configuration. Y Registration without Disclaimer /secured/assets/documents/en/user-guide/UM11440.pdf English 13950509 None User Guide 2023-06-18 /webapp/Download?colCode=UM11440 UM11440, FRDMGD3100HB8EVM half-bridge evaluation board - User Guide Y /secured/assets/documents/en/user-guide/UM11440.pdf documents 132339537837198660 User Guide N en Extended Y t792 pdf 1 Y N UM11440, FRDMGD3100HB8EVM half-bridge evaluation board - User Guide 14.0 MB UM11440 N 1595280757335698333576 true Y Tools
