Half-Bridge Evaluation Board for P6 IGBT/SiC Modules Featuring the GD3160

FRDMGD3160HB8EVM

Roll over image to zoom in

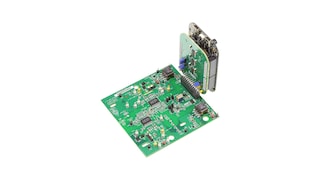

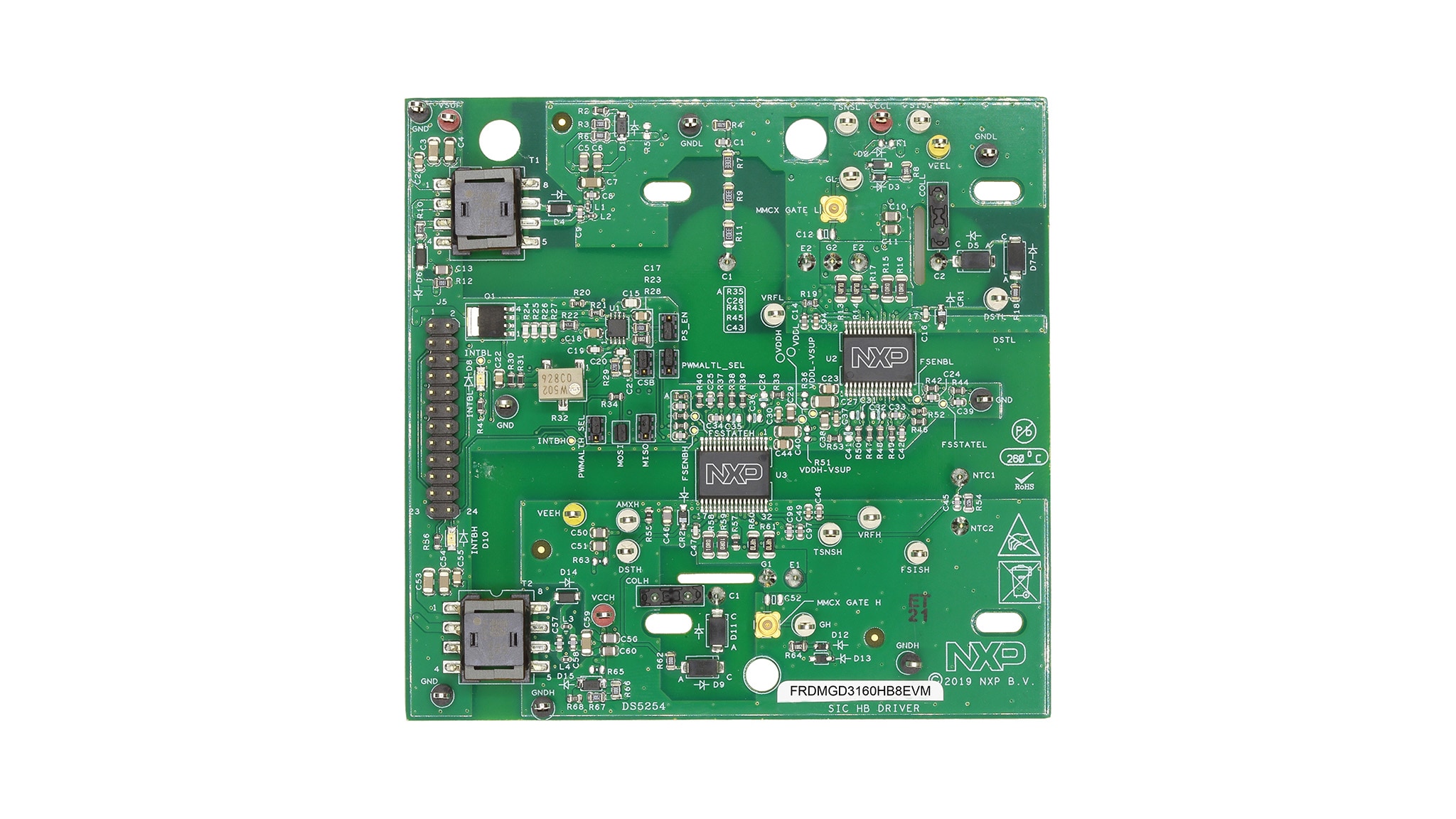

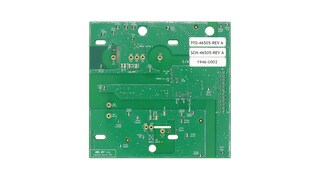

FRDMGD3160HB8EVM is a half-bridge evaluation kit populated with two GD3160 single channel IGBT/SiC MOSFET gate drive devices. The kit includes the Freedom KL25Z MCU hardware for interfacing a PC installed with FlexGUI software for communication to the SPI registers on the GD3160 gate drive devices in either daisy chain or standalone configuration.

The evaluation kit is designed to connect to for example a Starpower MD816HTC120P6HE or an Infineon FS03MR12A6MA1B for half-bridge evaluations and applications development.

The KITGD316xTREVB translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and GD3160 gate drivers.

Product Details

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3160: Advanced High Voltage Isolated Gate Driver with Segmented Drive for SiC MOSFETs

Features

System Features

  • Compatible with Starpower MD816HTC120P6HE and Infineon FS03MR12A6MA1B
  • FlexGUI available for use with kit
  • Daisy chain SPI interface configurability
  • Easy to configure jumper options
  • SPI configurable register options using FlexGUI
  • Double pulse and short circuit evaluations
  • Translator board to translate 3.3 V signals to 5.0 V signals between the MCU and GD3160 gate drivers

Buy Options

FRDMGD3160HB8EVM-Image

Click to expand

  • FRDMGD3160HB8EVM
    Active

  • Half-Bridge Evaluation Board for IGBT/SiC Modules Featuring the GD3160.

  • The FRDMGD3160HB8EVM contents include:

    • Assembled and tested FRDMGD3160HB8EVM board in an anti-static bag
    • 3.3 V to 5.0 V GD31xx translator board connected to FRDM-KL25Z
    • USB cable, type A male/type mini-B male, 3 ft
    • 1.27 mm jumpers for configuration (included with kit boards)
    • Quick Start Guide
  • $342.25 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 5
    • Shipping: Normally ships 1-2 business days
ADD TO CART
