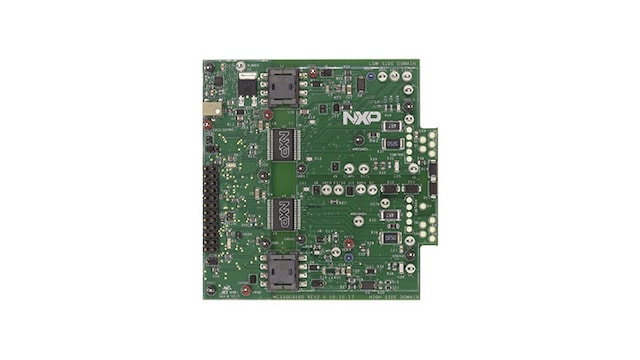

Half-Bridge Evaluation Board for Fuji M653 IGBTs Featuring GD3100

FRDM-GD3100EVM

Roll over image to zoom in

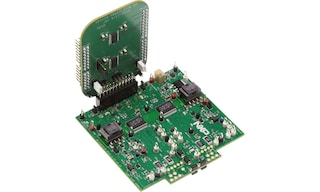

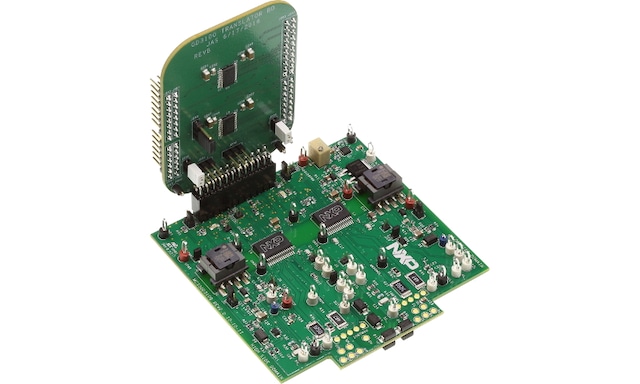

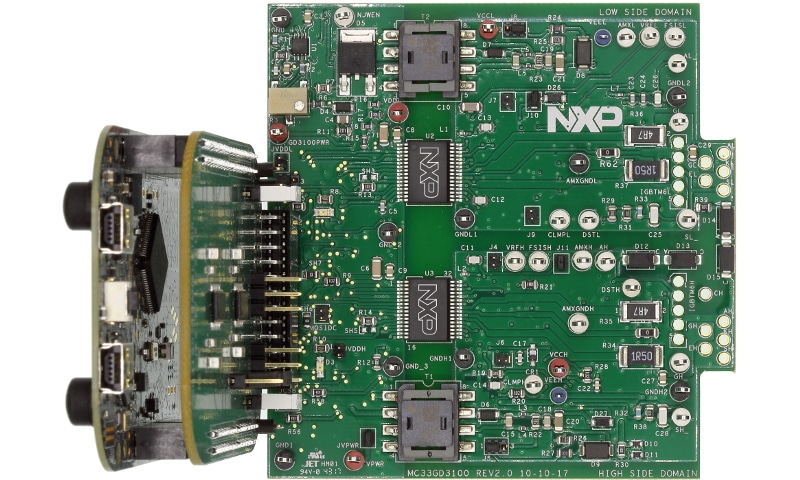

The FRDM-GD3100EVM is a half-bridge evaluation kit populated with two MC33GD3100 single channel IGBT gate drive devices on a half-bridge evaluation board. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with SPIGen software for communication to the SPI registers on the MC33GD3100 gate drive devices in either daisy chain or standalone configuration.

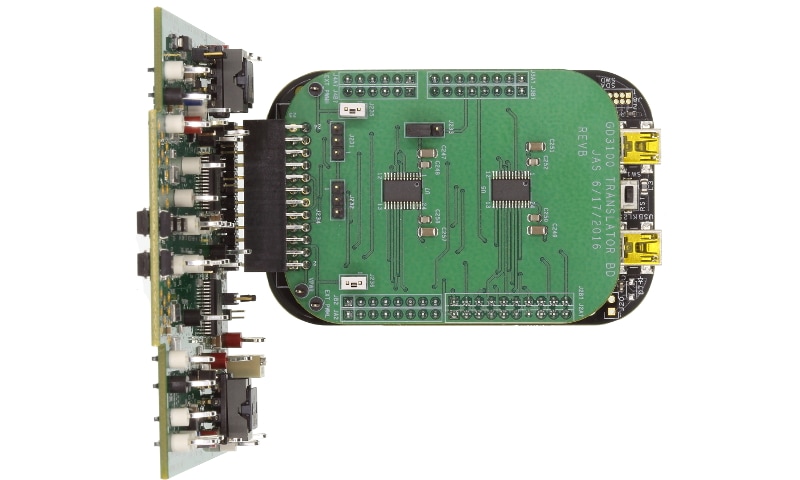

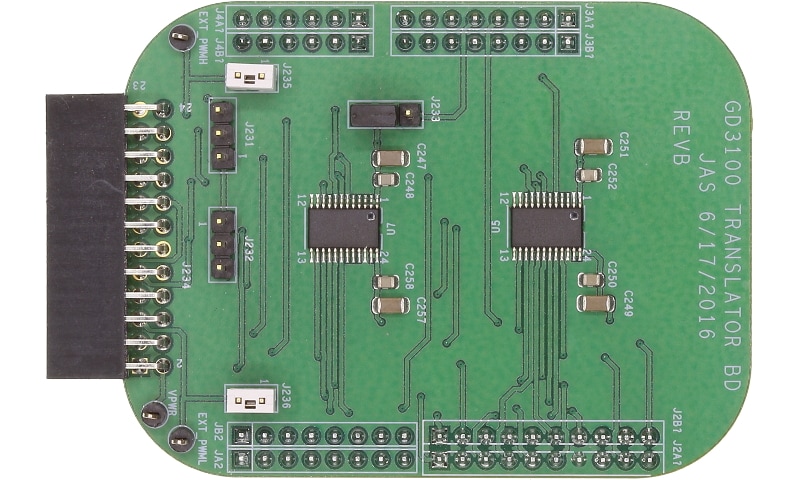

The GD3100 translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and MC33GD3100 gate drivers. The evaluation kit can be connected to a single phase of a Fuji M653 or M6+ IGBT module for half-bridge evaluations and applications development.

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3100: Advanced High Voltage Isolated Gate Driver for IGBT and SiC MOSFETs

Features

General Features

  • Easy access to power, ground, and signal test points

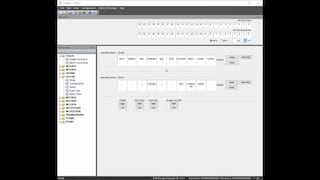

  • Easy to install and use SPIGen GUI for interfacing via SPI through PC. Software includes Double Pulse and Short Circuit testing capability.

Connectivity

  • Capability to connect to Fuji M653 or M6+ IGBT modules for half-bridge evaluations
  • Daisy Chain SPI communication capable

Buy Options

FRDM-GD3100EVM-Image

Click to expand

  • FRDM-GD3100EVM
    Active

  • Half-Bridge evaluation board for Fuji M653 IGBTs featuring GD3100.

    • Complete assembly of KITGD3100 connected to FRDM-KL25Z
    • 3.3 V to 5.0 V translator board
    • Cable, USB type A male/type mini B male 3 ft
    • Quick start guide
  • $181.88 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
