GD3100 Evaluation Board Compatible with HybridPACK™ Drive IGBT Module

FRDMGD3100HBIEVM Active

Roll over image to zoom in

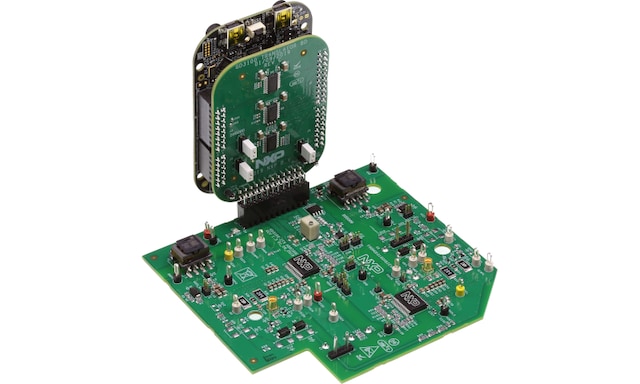

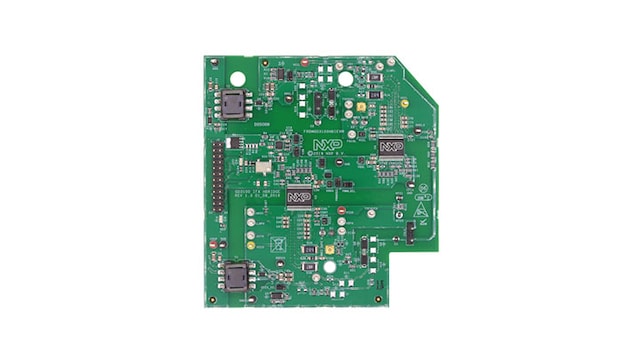

The FRDMGD3100HBIEVM is a half-bridge evaluation kit populated with two MC33GD3100 single channel IGBT gate drive devices on a half-bridge evaluation board. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with SPIGen software for communication to the SPI registers on the MC33GD3100 gate drive devices in either daisy chain or standalone configuration.

The GD3100 translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and MC33GD3100 gate drivers. The evaluation kit can be connected to a single phase of a HybridPACK™ Drive IGBT module for half-bridge evaluations and applications development.

Supported Devices

Power Management

Powertrain and Engine Control

  • GD3100: Advanced High Voltage Isolated Gate Driver for IGBT and SiC MOSFETs

Features

Connectivity

  • Capability to connect to HybridPACK™ Drive IGBT module (FS820R08A6P2B) for half-bridge evaluations
  • Daisy chain SPI communication capable
  • Easy access to power, ground, and signal test points

Power Management

  • Power supply and fail-safe jumper configurable
  • DC link bus voltage monitor on low-side driver via AMXIN and AOUT

Support and Software

  • Easy to install and use SPIGen GUI for interfacing via SPI through PC. Software includes double pulse and short-circuits testing capability

Buy Options

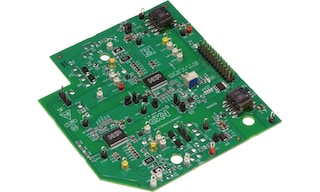

FRDMGD3100HBIEVM-Image

Click to expand

  • FRDMGD3100HBIEVM
    Active

  • Half-Bridge evaluation board for HybridPACK Drive IGBT/SiC module featuring GD3100.

    • Complete assembly of KITGD3100 connected to FRDM-KL25Z
    • 3.3 V to 5.0 V translator board
    • Cable, USB type A male/type mini B male 3 ft
    • Quick start guide
  • $230.48 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
